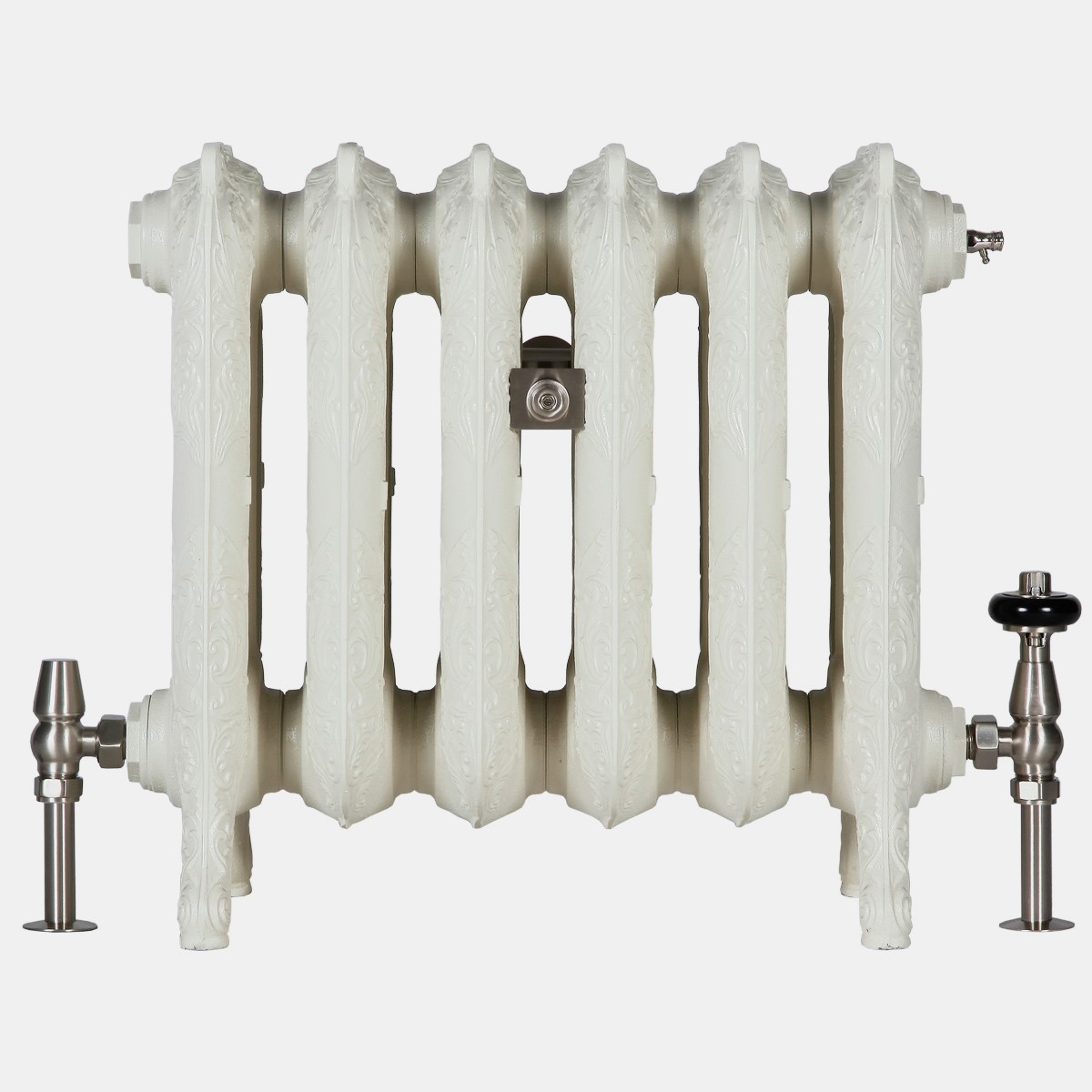

Rococo III 19in
From: $852.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 13 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 18.5 in |
| B | Bottom Inlet To Floor | 3.9 in |
| C | Max Section Depth | 10.1 in |
| D | Interaxis Distance | 12.2 in |
| E | Height Without Legs | 16.1 in |
| F | Section Length | 3.1 in |
| G | Mid Section Depth | 8.8 in |
| - | Internal Volume | 0.40 gal |
| - | Empty Leg Section Weight | 19.62 lb |
| - | Empty Mid Section Weight | 18.96 lb |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
| - | EDR Per Section | 2.2 ft² |
| - | Hydronic Output (170ºF) | 330 BTUs |
| - | Steam Output (215ºF) | 528 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-RC3-470-3 | 3 | 10.4 in | 990 BTUs | 1584 BTUs | 6.6 ft² | 1 | $852.00 |
| CI-RC3-470-4 | 4 | 13.5 in | 1320 BTUs | 2112 BTUs | 8.8 ft² | 1 | $971.00 |
| CI-RC3-470-5 | 5 | 16.5 in | 1650 BTUs | 2640 BTUs | 11.0 ft² | 1 | $1,090.00 |
| CI-RC3-470-6 | 6 | 19.6 in | 1980 BTUs | 3168 BTUs | 13.2 ft² | 1 | $1,209.00 |
| CI-RC3-470-7 | 7 | 22.7 in | 2310 BTUs | 3696 BTUs | 15.4 ft² | 1 | $1,328.00 |
| CI-RC3-470-8 | 8 | 25.7 in | 2640 BTUs | 4224 BTUs | 17.6 ft² | 1 | $1,447.00 |
| CI-RC3-470-9 | 9 | 28.8 in | 2970 BTUs | 4752 BTUs | 19.8 ft² | 1 | $1,566.00 |
| CI-RC3-470-10 | 10 | 31.9 in | 3300 BTUs | 5280 BTUs | 22.0 ft² | 1 | $1,685.00 |
| CI-RC3-470-11 | 11 | 35.0 in | 3630 BTUs | 5808 BTUs | 24.2 ft² | 1 | $1,804.00 |
| CI-RC3-470-12 | 12 | 38.0 in | 3960 BTUs | 6336 BTUs | 26.4 ft² | 1 | $1,923.00 |
| CI-RC3-470-13 | 13 | 41.1 in | 4290 BTUs | 6864 BTUs | 28.6 ft² | 1 | $2,042.00 |
| CI-RC3-470-14 | 14 | 44.2 in | 4620 BTUs | 7392 BTUs | 30.8 ft² | 2 | $2,241.00 |
| CI-RC3-470-15 | 15 | 47.2 in | 4950 BTUs | 7920 BTUs | 33.0 ft² | 2 | $2,360.00 |
| CI-RC3-470-16 | 16 | 50.3 in | 5280 BTUs | 8448 BTUs | 35.2 ft² | 2 | $2,479.00 |
| CI-RC3-470-17 | 17 | 53.4 in | 5610 BTUs | 8976 BTUs | 37.4 ft² | 2 | $2,598.00 |
| CI-RC3-470-18 | 18 | 56.5 in | 5940 BTUs | 9504 BTUs | 39.6 ft² | 2 | $2,717.00 |
| CI-RC3-470-19 | 19 | 59.5 in | 6270 BTUs | 10032 BTUs | 41.8 ft² | 2 | $2,836.00 |
| CI-RC3-470-20 | 20 | 62.6 in | 6600 BTUs | 10560 BTUs | 44.0 ft² | 2 | $2,955.00 |
| CI-RC3-470-21 | 21 | 65.7 in | 6930 BTUs | 11088 BTUs | 46.2 ft² | 2 | $3,074.00 |
| CI-RC3-470-22 | 22 | 68.7 in | 7260 BTUs | 11616 BTUs | 48.4 ft² | 3 | $3,193.00 |
| CI-RC3-470-23 | 23 | 71.8 in | 7590 BTUs | 12144 BTUs | 50.6 ft² | 3 | $3,312.00 |
| CI-RC3-470-24 | 24 | 74.9 in | 7920 BTUs | 12672 BTUs | 52.8 ft² | 3 | $3,431.00 |
| CI-RC3-470-25 | 25 | 78.0 in | 8250 BTUs | 13200 BTUs | 55.0 ft² | 3 | $3,550.00 |
| CI-RC3-470-26 | 26 | 81.0 in | 8580 BTUs | 13728 BTUs | 57.2 ft² | 3 | $3,669.00 |
| CI-RC3-470-27 | 27 | 84.1 in | 8910 BTUs | 14256 BTUs | 59.4 ft² | 3 | $3,788.00 |
| CI-RC3-470-28 | 28 | 87.2 in | 9240 BTUs | 14784 BTUs | 61.6 ft² | 3 | $3,907.00 |
| CI-RC3-470-29 | 29 | 90.2 in | 9570 BTUs | 15312 BTUs | 63.8 ft² | 3 | $4,026.00 |
| CI-RC3-470-30 | 30 | 93.3 in | 9900 BTUs | 15840 BTUs | 66.0 ft² | 3 | $4,145.00 |
| CI-RC3-470-31 | 31 | 96.4 in | 10230 BTUs | 16368 BTUs | 68.2 ft² | 3 | $4,264.00 |
| CI-RC3-470-32 | 32 | 99.4 in | 10560 BTUs | 16896 BTUs | 70.4 ft² | 3 | $4,383.00 |
| CI-RC3-470-33 | 33 | 102.5 in | 10890 BTUs | 17424 BTUs | 72.6 ft² | 3 | $4,502.00 |
| CI-RC3-470-34 | 34 | 105.6 in | 11220 BTUs | 17952 BTUs | 74.8 ft² | 4 | $4,621.00 |
| CI-RC3-470-35 | 35 | 108.7 in | 11550 BTUs | 18480 BTUs | 77.0 ft² | 4 | $4,740.00 |
| CI-RC3-470-36 | 36 | 111.7 in | 11880 BTUs | 19008 BTUs | 79.2 ft² | 4 | $4,859.00 |
| CI-RC3-470-37 | 37 | 114.8 in | 12210 BTUs | 19536 BTUs | 81.4 ft² | 4 | $4,978.00 |
| CI-RC3-470-38 | 38 | 117.9 in | 12540 BTUs | 20064 BTUs | 83.6 ft² | 4 | $5,097.00 |
| CI-RC3-470-39 | 39 | 120.9 in | 12870 BTUs | 20592 BTUs | 85.8 ft² | 4 | $5,216.00 |
| CI-RC3-470-40 | 40 | 124.0 in | 13200 BTUs | 21120 BTUs | 88.0 ft² | 4 | $5,335.00 |
