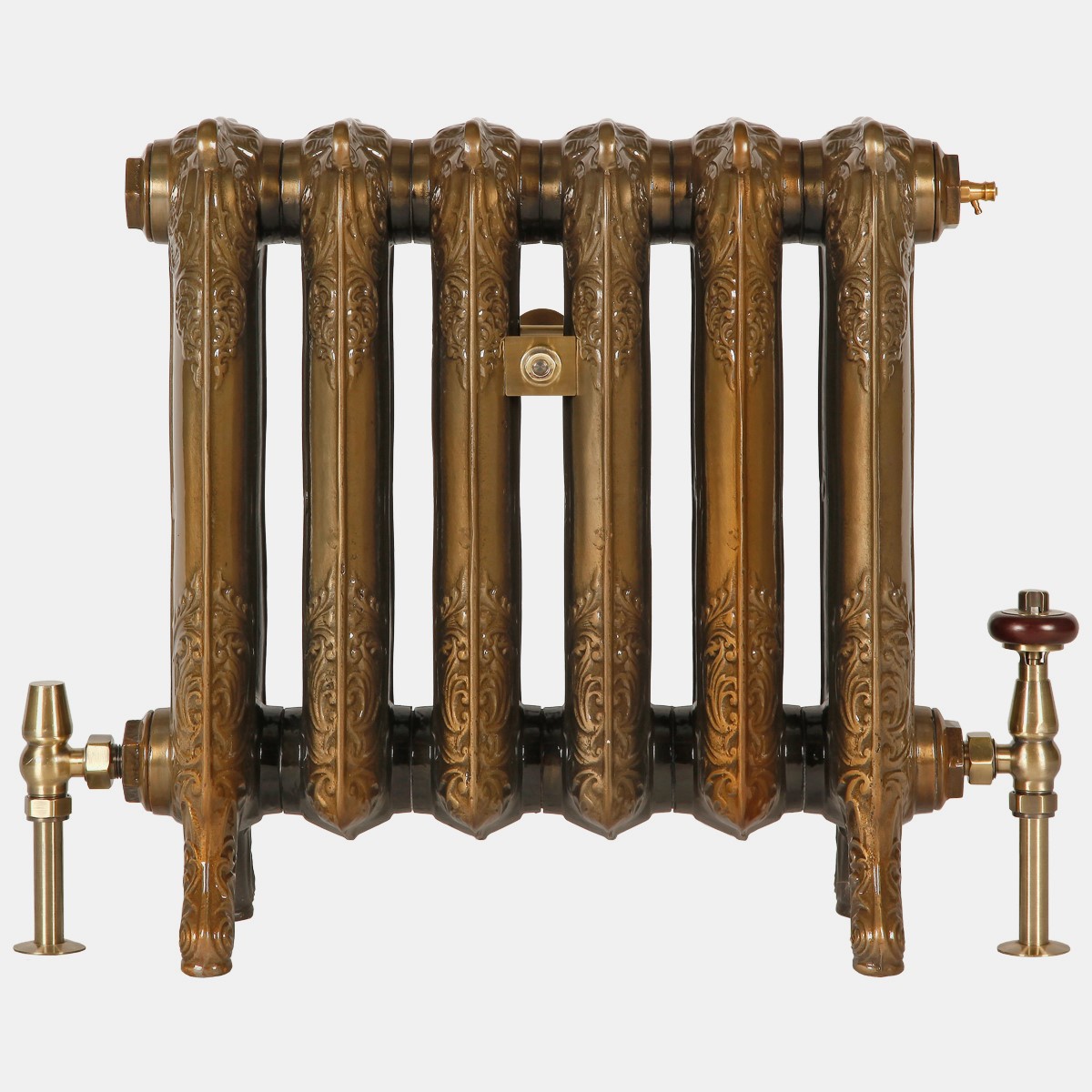

Rococo II 20in
From: $792.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 20.1 in |
| B | Bottom Inlet To Floor | 4.5 in |
| C | Max Section Depth | 8.7 in |
| D | Interaxis Distance | 13.8 in |
| E | Height Without Legs | 17.8 in |
| F | Section Length | 3.1 in |
| G | Mid Section Depth | 7.0 in |
| - | Internal Volume | 0.48 gal |
| - | Empty Leg Section Weight | 17.42 lb |
| - | Empty Mid Section Weight | 13.67 lb |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
| - | EDR Per Section | 2.07 ft² |
| - | Hydronic Output (170ºF) | 310 BTUs |
| - | Steam Output (215ºF) | 496 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-RC2-510-3 | 3 | 10.6 in | 930 BTUs | 1488 BTUs | 6.2 ft² | 1 | $792.00 |
| CI-RC2-510-4 | 4 | 13.8 in | 1240 BTUs | 1984 BTUs | 8.3 ft² | 3 | $971.00 |
| CI-RC2-510-5 | 5 | 16.9 in | 1550 BTUs | 2480 BTUs | 10.4 ft² | 1 | $990.00 |
| CI-RC2-510-6 | 6 | 20.1 in | 1860 BTUs | 2976 BTUs | 12.4 ft² | 3 | $1,169.00 |
| CI-RC2-510-7 | 7 | 23.2 in | 2170 BTUs | 3472 BTUs | 14.5 ft² | 4 | $1,268.00 |
| CI-RC2-510-8 | 8 | 26.4 in | 2480 BTUs | 3968 BTUs | 16.6 ft² | 3 | $1,367.00 |
| CI-RC2-510-9 | 9 | 29.5 in | 2790 BTUs | 4464 BTUs | 18.6 ft² | 4 | $1,466.00 |
| CI-RC2-510-10 | 10 | 32.7 in | 3100 BTUs | 4960 BTUs | 20.7 ft² | 3 | $1,565.00 |
| CI-RC2-510-11 | 11 | 35.8 in | 3410 BTUs | 5456 BTUs | 22.8 ft² | 4 | $1,664.00 |
| CI-RC2-510-12 | 12 | 39.0 in | 3720 BTUs | 5952 BTUs | 24.8 ft² | 2 | $1,763.00 |
| CI-RC2-510-13 | 13 | 42.1 in | 4030 BTUs | 6448 BTUs | 26.9 ft² | 2 | $1,862.00 |
| CI-RC2-510-14 | 14 | 45.3 in | 4340 BTUs | 6944 BTUs | 29.0 ft² | 2 | $1,961.00 |
| CI-RC2-510-15 | 15 | 48.4 in | 4650 BTUs | 7440 BTUs | 31.1 ft² | 3 | $2,060.00 |
| CI-RC2-510-16 | 16 | 51.6 in | 4960 BTUs | 7936 BTUs | 33.1 ft² | 1 | $2,079.00 |
| CI-RC2-510-17 | 17 | 54.7 in | 5270 BTUs | 8432 BTUs | 35.2 ft² | 2 | $2,258.00 |
| CI-RC2-510-18 | 18 | 57.9 in | 5580 BTUs | 8928 BTUs | 37.3 ft² | 3 | $2,357.00 |
| CI-RC2-510-19 | 19 | 61.0 in | 5890 BTUs | 9424 BTUs | 39.3 ft² | 3 | $2,456.00 |
| CI-RC2-510-20 | 20 | 64.2 in | 6200 BTUs | 9920 BTUs | 41.4 ft² | 1 | $2,475.00 |
| CI-RC2-510-21 | 21 | 67.3 in | 6510 BTUs | 10416 BTUs | 43.5 ft² | 1 | $2,574.00 |
| CI-RC2-510-22 | 22 | 70.5 in | 6820 BTUs | 10912 BTUs | 45.5 ft² | 2 | $2,753.00 |
| CI-RC2-510-23 | 23 | 73.6 in | 7130 BTUs | 11408 BTUs | 47.6 ft² | 3 | $2,852.00 |
| CI-RC2-510-24 | 24 | 76.8 in | 7440 BTUs | 11904 BTUs | 49.7 ft² | 1 | $2,871.00 |
| CI-RC2-510-25 | 25 | 79.9 in | 7750 BTUs | 12400 BTUs | 51.8 ft² | 3 | $3,050.00 |
| CI-RC2-510-26 | 26 | 83.1 in | 8060 BTUs | 12896 BTUs | 53.8 ft² | 1 | $3,069.00 |
| CI-RC2-510-27 | 27 | 86.2 in | 8370 BTUs | 13392 BTUs | 55.9 ft² | 3 | $3,248.00 |
| CI-RC2-510-28 | 28 | 89.4 in | 8680 BTUs | 13888 BTUs | 58.0 ft² | 4 | $3,347.00 |
| CI-RC2-510-29 | 29 | 92.5 in | 8990 BTUs | 14384 BTUs | 60.0 ft² | 3 | $3,446.00 |
| CI-RC2-510-30 | 30 | 95.7 in | 9300 BTUs | 14880 BTUs | 62.1 ft² | 1 | $3,465.00 |
| CI-RC2-510-31 | 31 | 98.8 in | 9610 BTUs | 15376 BTUs | 64.2 ft² | 3 | $3,644.00 |
| CI-RC2-510-32 | 32 | 102.0 in | 9920 BTUs | 15872 BTUs | 66.2 ft² | 4 | $3,743.00 |
| CI-RC2-510-33 | 33 | 105.1 in | 10230 BTUs | 16368 BTUs | 68.3 ft² | 1 | $3,762.00 |
| CI-RC2-510-34 | 34 | 108.3 in | 10540 BTUs | 16864 BTUs | 70.4 ft² | 4 | $3,941.00 |
| CI-RC2-510-35 | 35 | 111.4 in | 10850 BTUs | 17360 BTUs | 72.5 ft² | 3 | $4,040.00 |
| CI-RC2-510-36 | 36 | 114.6 in | 11160 BTUs | 17856 BTUs | 74.5 ft² | 1 | $4,059.00 |
| CI-RC2-510-37 | 37 | 117.7 in | 11470 BTUs | 18352 BTUs | 76.6 ft² | 1 | $4,158.00 |
| CI-RC2-510-38 | 38 | 120.9 in | 11780 BTUs | 18848 BTUs | 78.7 ft² | 2 | $4,337.00 |
| CI-RC2-510-39 | 39 | 124.0 in | 12090 BTUs | 19344 BTUs | 80.7 ft² | 2 | $4,436.00 |
| CI-RC2-510-40 | 40 | 127.2 in | 12400 BTUs | 19840 BTUs | 82.8 ft² | 1 | $4,455.00 |
