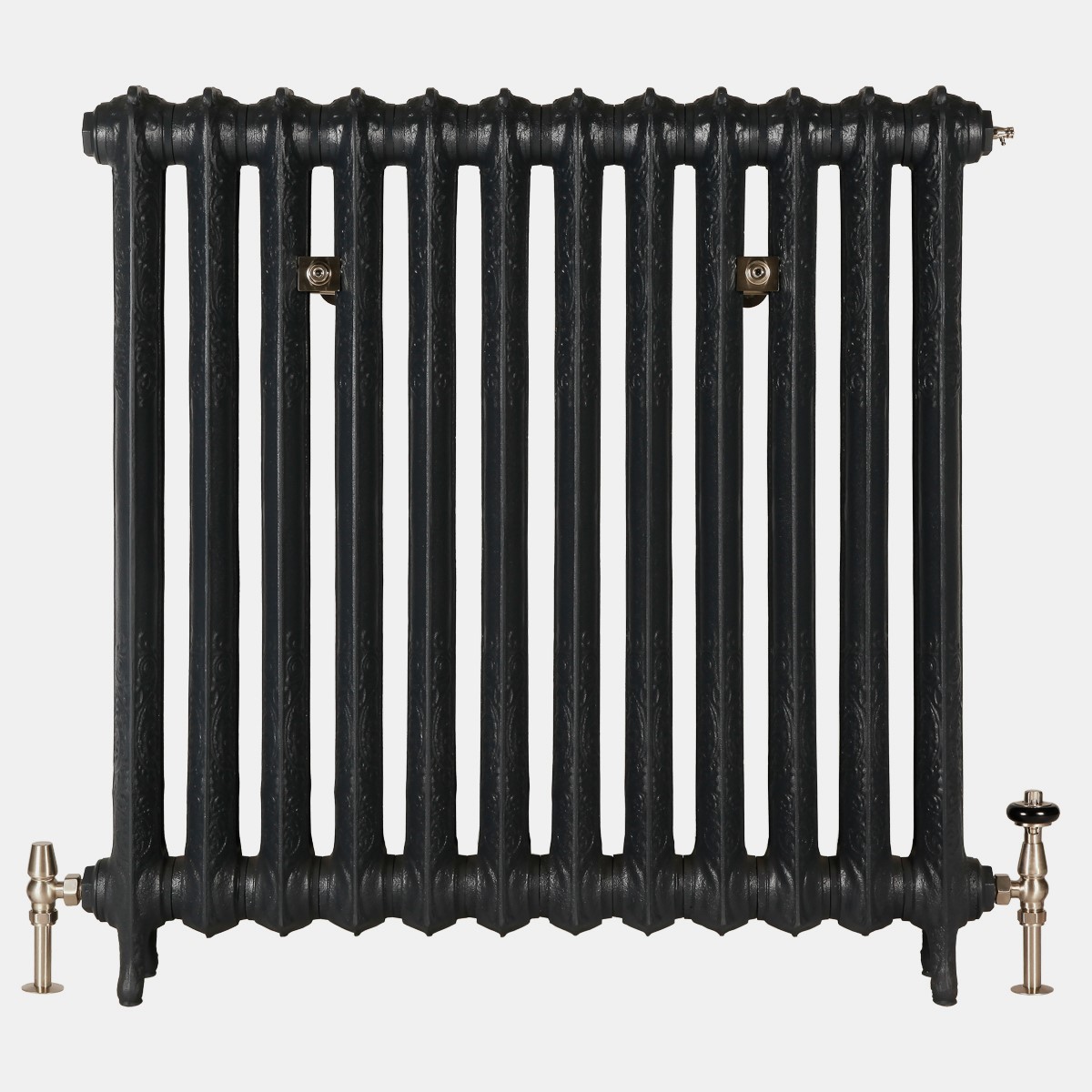

Rococo I 37in
From: $992.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 37.4 in |
| B | Bottom Inlet To Floor | 4.3 in |
| C | Max Section Depth | 5.5 in |
| D | Interaxis Distance | 31.1 in |
| E | Height Without Legs | 35.2 in |
| F | Section Length | 3.0 in |
| G | Mid Section Depth | 4.5 in |
| - | Internal Volume | 0.34 gal |
| - | Empty Leg Section Weight | 21.83 lb |
| - | Empty Mid Section Weight | 20.06 lb |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
| - | EDR Per Section | 2.79 ft² |
| - | Hydronic Output (170ºF) | 419 BTUs |
| - | Steam Output (215ºF) | 670 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-RC1-950-3 | 3 | 10.2 in | 1257 BTUs | 2010 BTUs | 8.4 ft² | 4 | $992.00 |
| CI-RC1-950-4 | 4 | 13.1 in | 1676 BTUs | 2680 BTUs | 11.2 ft² | 4 | $1,131.00 |
| CI-RC1-950-5 | 5 | 16.1 in | 2095 BTUs | 3350 BTUs | 14.0 ft² | 1 | $1,190.00 |
| CI-RC1-950-6 | 6 | 19.1 in | 2514 BTUs | 4020 BTUs | 16.7 ft² | 4 | $1,409.00 |
| CI-RC1-950-7 | 7 | 22.1 in | 2933 BTUs | 4690 BTUs | 19.5 ft² | 3 | $1,548.00 |
| CI-RC1-950-8 | 8 | 25.1 in | 3352 BTUs | 5360 BTUs | 22.3 ft² | 1 | $1,607.00 |
| CI-RC1-950-9 | 9 | 28.1 in | 3771 BTUs | 6030 BTUs | 25.1 ft² | 4 | $1,826.00 |
| CI-RC1-950-10 | 10 | 31.1 in | 4190 BTUs | 6700 BTUs | 27.9 ft² | 4 | $1,965.00 |
| CI-RC1-950-11 | 11 | 34.1 in | 4609 BTUs | 7370 BTUs | 30.7 ft² | 3 | $2,104.00 |
| CI-RC1-950-12 | 12 | 37.1 in | 5028 BTUs | 8040 BTUs | 33.5 ft² | 3 | $2,243.00 |
| CI-RC1-950-13 | 13 | 40.1 in | 5447 BTUs | 8710 BTUs | 36.3 ft² | 4 | $2,382.00 |
| CI-RC1-950-14 | 14 | 43.1 in | 5866 BTUs | 9380 BTUs | 39.1 ft² | 5 | $2,521.00 |
| CI-RC1-950-15 | 15 | 46.1 in | 6285 BTUs | 10050 BTUs | 41.9 ft² | 4 | $2,660.00 |
| CI-RC1-950-16 | 16 | 49.1 in | 6704 BTUs | 10720 BTUs | 44.6 ft² | 2 | $2,799.00 |
| CI-RC1-950-17 | 17 | 52.0 in | 7123 BTUs | 11390 BTUs | 47.4 ft² | 3 | $2,938.00 |
| CI-RC1-950-18 | 18 | 55.0 in | 7542 BTUs | 12060 BTUs | 50.2 ft² | 3 | $3,077.00 |
| CI-RC1-950-19 | 19 | 58.0 in | 7961 BTUs | 12730 BTUs | 53.0 ft² | 2 | $3,216.00 |
| CI-RC1-950-20 | 20 | 61.0 in | 8380 BTUs | 13400 BTUs | 55.8 ft² | 1 | $3,275.00 |
| CI-RC1-950-21 | 21 | 64.0 in | 8799 BTUs | 14070 BTUs | 58.6 ft² | 3 | $3,494.00 |
| CI-RC1-950-22 | 22 | 67.0 in | 9218 BTUs | 14740 BTUs | 61.4 ft² | 3 | $3,633.00 |
| CI-RC1-950-23 | 23 | 70.0 in | 9637 BTUs | 15410 BTUs | 64.2 ft² | 3 | $3,772.00 |
| CI-RC1-950-24 | 24 | 73.0 in | 10056 BTUs | 16080 BTUs | 67.0 ft² | 2 | $3,911.00 |
| CI-RC1-950-25 | 25 | 76.0 in | 10475 BTUs | 16750 BTUs | 69.8 ft² | 3 | $4,050.00 |
| CI-RC1-950-26 | 26 | 79.0 in | 10894 BTUs | 17420 BTUs | 72.5 ft² | 1 | $4,109.00 |
| CI-RC1-950-27 | 27 | 82.0 in | 11313 BTUs | 18090 BTUs | 75.3 ft² | 2 | $4,328.00 |
| CI-RC1-950-28 | 28 | 85.0 in | 11732 BTUs | 18760 BTUs | 78.1 ft² | 2 | $4,467.00 |
| CI-RC1-950-29 | 29 | 88.0 in | 12151 BTUs | 19430 BTUs | 80.9 ft² | 3 | $4,606.00 |
| CI-RC1-950-30 | 30 | 90.9 in | 12570 BTUs | 20100 BTUs | 83.7 ft² | 3 | $4,745.00 |
| CI-RC1-950-31 | 31 | 93.9 in | 12989 BTUs | 20770 BTUs | 86.5 ft² | 2 | $4,884.00 |
| CI-RC1-950-32 | 32 | 96.9 in | 13408 BTUs | 21440 BTUs | 89.3 ft² | 1 | $4,943.00 |
| CI-RC1-950-33 | 33 | 99.9 in | 13827 BTUs | 22110 BTUs | 92.1 ft² | 1 | $5,082.00 |
| CI-RC1-950-34 | 34 | 102.9 in | 14246 BTUs | 22780 BTUs | 94.9 ft² | 1 | $5,221.00 |
| CI-RC1-950-35 | 35 | 105.9 in | 14665 BTUs | 23450 BTUs | 97.7 ft² | 1 | $5,360.00 |
| CI-RC1-950-36 | 36 | 108.9 in | 15084 BTUs | 24120 BTUs | 100.4 ft² | 1 | $5,499.00 |
| CI-RC1-950-37 | 37 | 111.9 in | 15503 BTUs | 24790 BTUs | 103.2 ft² | 3 | $5,718.00 |
| CI-RC1-950-38 | 38 | 114.9 in | 15922 BTUs | 25460 BTUs | 106.0 ft² | 2 | $5,857.00 |
| CI-RC1-950-39 | 39 | 117.9 in | 16341 BTUs | 26130 BTUs | 108.8 ft² | 2 | $5,996.00 |
| CI-RC1-950-40 | 40 | 120.9 in | 16760 BTUs | 26800 BTUs | 111.6 ft² | 4 | $6,135.00 |
