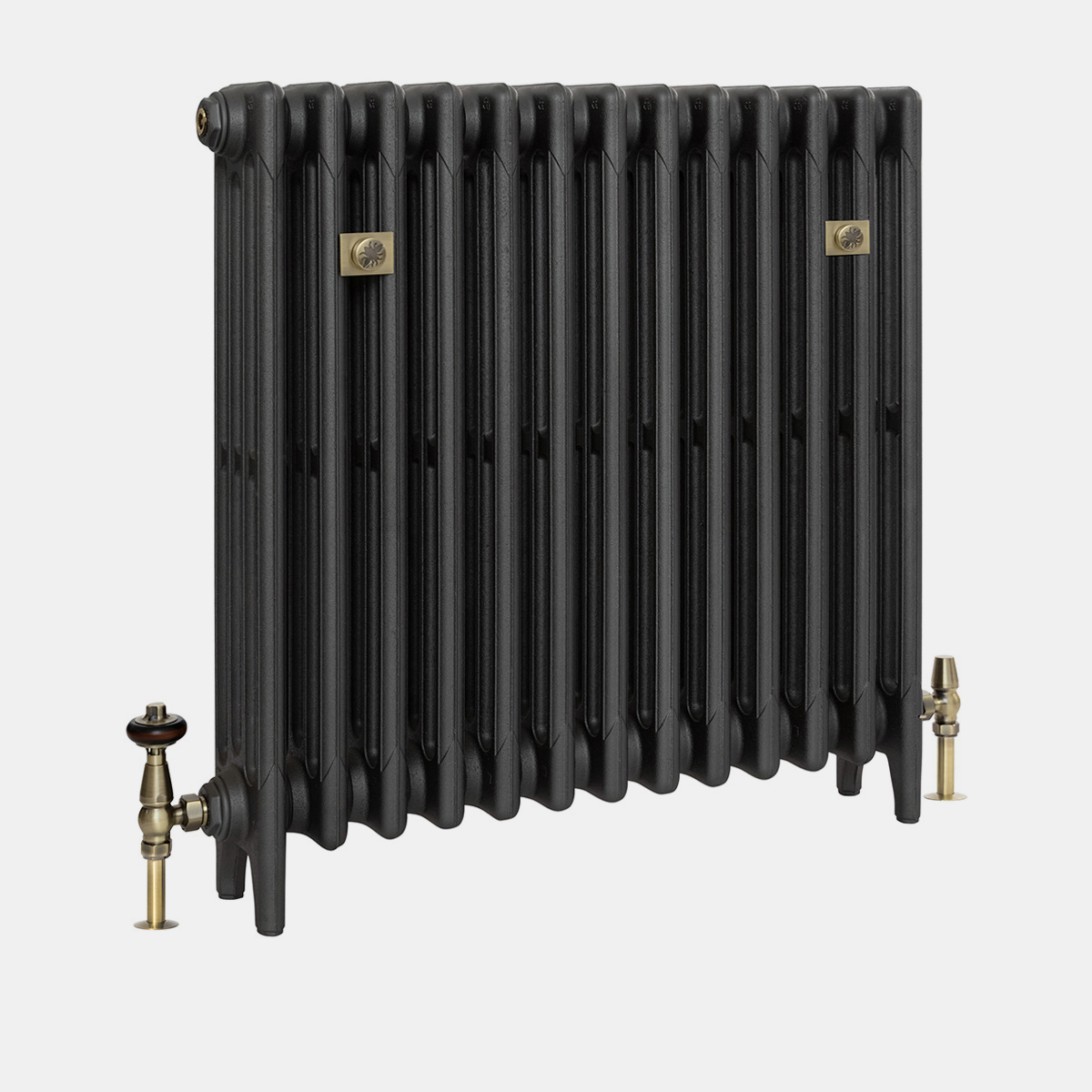

Mercury 4 Column 30in
From: $896.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 29.9 in |
| B | Bottom Inlet To Floor | 3.9 in |
| C | Max Section Depth | 5.5 in |
| D | Interaxis Distance | 24.5 in |
| E | Height Without Legs | 27.5 in |
| F | Section Length | 2.3 in |
| G | Mid Section Depth | 5.5 in |
| - | Internal Volume | 0.05 gal |
| - | Empty Leg Section Weight | 14.77 lb |
| - | Empty Mid Section Weight | 13.23 lb |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
| - | EDR Per Section | 2.54 ft² |
| - | Hydronic Output (170ºF) | 382 BTUs |
| - | Steam Output (215ºF) | 610 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-M4C-760-3 | 3 | 8.0 in | 1146 BTUs | 1830 BTUs | 7.6 ft² | 3 | $896.00 |
| CI-M4C-760-4 | 4 | 10.4 in | 1528 BTUs | 2440 BTUs | 10.2 ft² | 3 | $1,003.00 |
| CI-M4C-760-5 | 5 | 12.6 in | 1910 BTUs | 3050 BTUs | 12.7 ft² | 3 | $1,110.00 |
| CI-M4C-760-6 | 6 | 14.9 in | 2292 BTUs | 3660 BTUs | 15.2 ft² | 1 | $1,137.00 |
| CI-M4C-760-7 | 7 | 17.2 in | 2674 BTUs | 4270 BTUs | 17.8 ft² | 2 | $1,324.00 |
| CI-M4C-760-8 | 8 | 19.5 in | 3056 BTUs | 4880 BTUs | 20.3 ft² | 1 | $1,351.00 |
| CI-M4C-760-9 | 9 | 21.8 in | 3438 BTUs | 5490 BTUs | 22.9 ft² | 3 | $1,538.00 |
| CI-M4C-760-10 | 10 | 24.1 in | 3820 BTUs | 6100 BTUs | 25.4 ft² | 3 | $1,645.00 |
| CI-M4C-760-11 | 11 | 26.4 in | 4202 BTUs | 6710 BTUs | 27.9 ft² | 3 | $1,752.00 |
| CI-M4C-760-12 | 12 | 28.7 in | 4584 BTUs | 7320 BTUs | 30.5 ft² | 1 | $1,779.00 |
| CI-M4C-760-13 | 13 | 31.0 in | 4966 BTUs | 7930 BTUs | 33.0 ft² | 2 | $1,966.00 |
| CI-M4C-760-14 | 14 | 33.3 in | 5348 BTUs | 8540 BTUs | 35.6 ft² | 2 | $2,073.00 |
| CI-M4C-760-15 | 15 | 35.6 in | 5730 BTUs | 9150 BTUs | 38.1 ft² | 3 | $2,180.00 |
| CI-M4C-760-16 | 16 | 37.9 in | 6112 BTUs | 9760 BTUs | 40.6 ft² | 3 | $2,287.00 |
| CI-M4C-760-17 | 17 | 40.2 in | 6494 BTUs | 10370 BTUs | 43.2 ft² | 3 | $2,394.00 |
| CI-M4C-760-18 | 18 | 42.5 in | 6876 BTUs | 10980 BTUs | 45.7 ft² | 1 | $2,421.00 |
| CI-M4C-760-19 | 19 | 44.8 in | 7258 BTUs | 11590 BTUs | 48.3 ft² | 3 | $2,608.00 |
| CI-M4C-760-20 | 20 | 47.1 in | 7640 BTUs | 12200 BTUs | 50.8 ft² | 3 | $2,715.00 |
| CI-M4C-760-21 | 21 | 49.4 in | 8022 BTUs | 12810 BTUs | 53.3 ft² | 3 | $2,822.00 |
| CI-M4C-760-22 | 22 | 51.7 in | 8404 BTUs | 13420 BTUs | 55.9 ft² | 1 | $2,849.00 |
| CI-M4C-760-23 | 23 | 53.9 in | 8786 BTUs | 14030 BTUs | 58.4 ft² | 3 | $3,036.00 |
| CI-M4C-760-24 | 24 | 56.3 in | 9168 BTUs | 14640 BTUs | 61.0 ft² | 2 | $3,143.00 |
| CI-M4C-760-25 | 25 | 58.5 in | 9550 BTUs | 15250 BTUs | 63.5 ft² | 3 | $3,250.00 |
| CI-M4C-760-26 | 26 | 60.8 in | 9932 BTUs | 15860 BTUs | 66.0 ft² | 2 | $3,357.00 |
| CI-M4C-760-27 | 27 | 63.1 in | 10314 BTUs | 16470 BTUs | 68.6 ft² | 2 | $3,464.00 |
| CI-M4C-760-28 | 28 | 65.4 in | 10696 BTUs | 17080 BTUs | 71.1 ft² | 1 | $3,491.00 |
| CI-M4C-760-29 | 29 | 67.7 in | 11078 BTUs | 17690 BTUs | 73.7 ft² | 3 | $3,678.00 |
| CI-M4C-760-30 | 30 | 70.0 in | 11460 BTUs | 18300 BTUs | 76.2 ft² | 2 | $3,785.00 |
| CI-M4C-760-31 | 31 | 72.3 in | 11842 BTUs | 18910 BTUs | 78.7 ft² | 3 | $3,892.00 |
| CI-M4C-760-32 | 32 | 74.6 in | 12224 BTUs | 19520 BTUs | 81.3 ft² | 3 | $3,999.00 |
| CI-M4C-760-33 | 33 | 76.9 in | 12606 BTUs | 20130 BTUs | 83.8 ft² | 1 | $4,026.00 |
| CI-M4C-760-34 | 34 | 79.2 in | 12988 BTUs | 20740 BTUs | 86.4 ft² | 1 | $4,133.00 |
| CI-M4C-760-35 | 35 | 81.5 in | 13370 BTUs | 21350 BTUs | 88.9 ft² | 1 | $4,240.00 |
| CI-M4C-760-36 | 36 | 83.8 in | 13752 BTUs | 21960 BTUs | 91.4 ft² | 1 | $4,347.00 |
| CI-M4C-760-37 | 37 | 86.1 in | 14134 BTUs | 22570 BTUs | 94.0 ft² | 1 | $4,454.00 |
| CI-M4C-760-38 | 38 | 88.4 in | 14516 BTUs | 23180 BTUs | 96.5 ft² | 1 | $4,561.00 |
| CI-M4C-760-39 | 39 | 90.7 in | 14898 BTUs | 23790 BTUs | 99.1 ft² | 1 | $4,668.00 |
| CI-M4C-760-40 | 40 | 93.0 in | 15280 BTUs | 24400 BTUs | 101.6 ft² | 1 | $4,775.00 |
