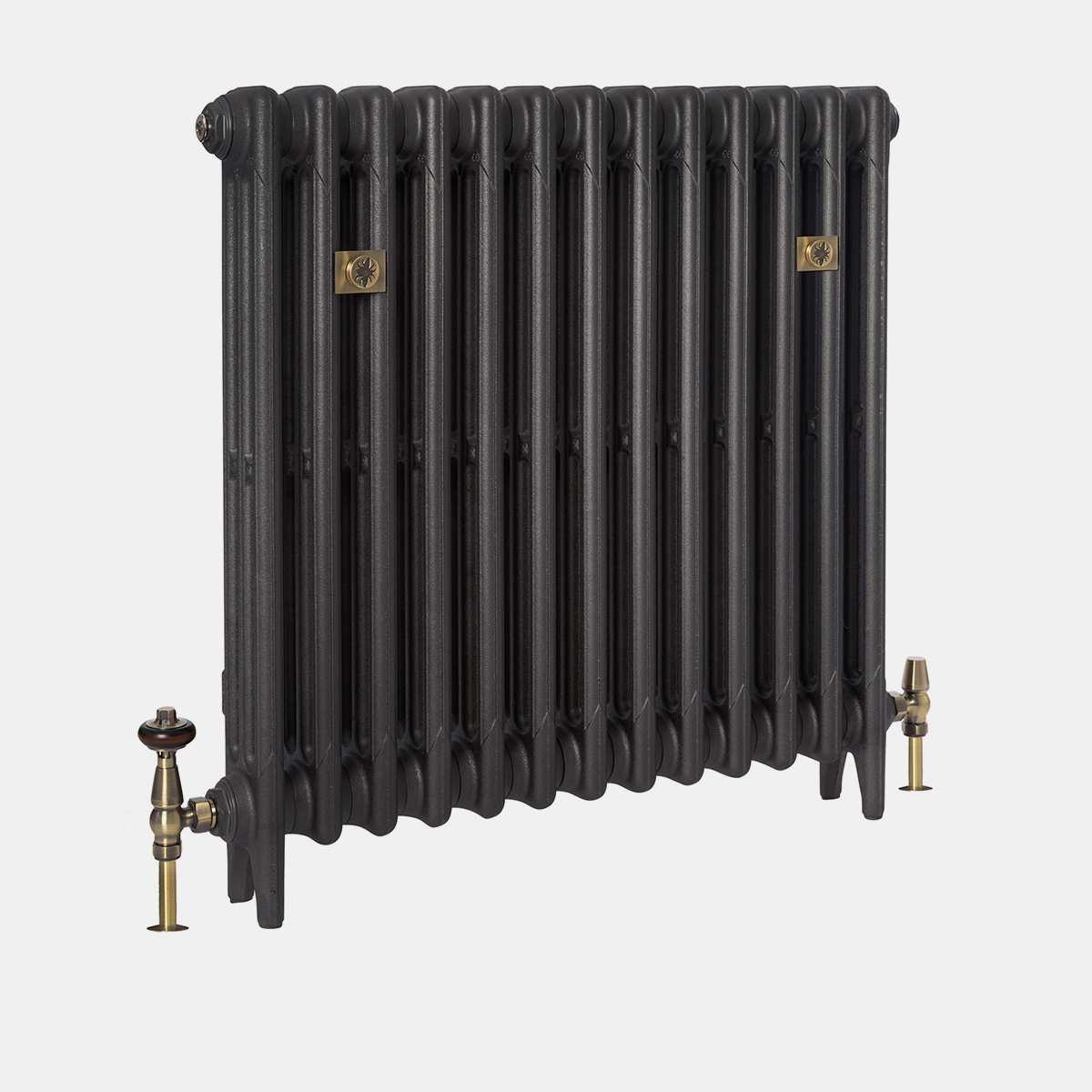

Mercury 3 Column 30in
From: $845.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 29.9 in |
| B | Bottom Inlet To Floor | 3.9 in |
| C | Max Section Depth | 4.0 in |
| D | Interaxis Distance | 24.5 in |
| E | Height Without Legs | 27.5 in |
| F | Section Length | 2.3 in |
| G | Mid Section Depth | 4.0 in |
| - | Internal Volume | 0.04 gal |
| - | Empty Leg Section Weight | 11.68 lb |
| - | Empty Mid Section Weight | 10.36 lb |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
| - | EDR Per Section | 2.08 ft² |
| - | Hydronic Output (170ºF) | 311 BTUs |
| - | Steam Output (215ºF) | 498 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-M3C-760-3 | 3 | 8.0 in | 933 BTUs | 1494 BTUs | 6.2 ft² | 3 | $845.00 |
| CI-M3C-760-4 | 4 | 10.4 in | 1244 BTUs | 1992 BTUs | 8.3 ft² | 2 | $935.00 |
| CI-M3C-760-5 | 5 | 12.6 in | 1555 BTUs | 2490 BTUs | 10.4 ft² | 3 | $1,025.00 |
| CI-M3C-760-6 | 6 | 14.9 in | 1866 BTUs | 2988 BTUs | 12.5 ft² | 3 | $1,115.00 |
| CI-M3C-760-7 | 7 | 17.2 in | 2177 BTUs | 3486 BTUs | 14.6 ft² | 1 | $1,125.00 |
| CI-M3C-760-8 | 8 | 19.5 in | 2488 BTUs | 3984 BTUs | 16.6 ft² | 1 | $1,215.00 |
| CI-M3C-760-9 | 9 | 21.8 in | 2799 BTUs | 4482 BTUs | 18.7 ft² | 1 | $1,305.00 |
| CI-M3C-760-10 | 10 | 24.1 in | 3110 BTUs | 4980 BTUs | 20.8 ft² | 3 | $1,475.00 |
| CI-M3C-760-11 | 11 | 26.4 in | 3421 BTUs | 5478 BTUs | 22.9 ft² | 1 | $1,485.00 |
| CI-M3C-760-12 | 12 | 28.7 in | 3732 BTUs | 5976 BTUs | 25.0 ft² | 3 | $1,655.00 |
| CI-M3C-760-13 | 13 | 31.0 in | 4043 BTUs | 6474 BTUs | 27.0 ft² | 2 | $1,745.00 |
| CI-M3C-760-14 | 14 | 33.3 in | 4354 BTUs | 6972 BTUs | 29.1 ft² | 2 | $1,835.00 |
| CI-M3C-760-15 | 15 | 35.6 in | 4665 BTUs | 7470 BTUs | 31.2 ft² | 3 | $1,925.00 |
| CI-M3C-760-16 | 16 | 37.9 in | 4976 BTUs | 7968 BTUs | 33.3 ft² | 1 | $1,935.00 |
| CI-M3C-760-17 | 17 | 40.2 in | 5287 BTUs | 8466 BTUs | 35.4 ft² | 1 | $2,025.00 |
| CI-M3C-760-18 | 18 | 42.5 in | 5598 BTUs | 8964 BTUs | 37.4 ft² | 2 | $2,195.00 |
| CI-M3C-760-19 | 19 | 44.8 in | 5909 BTUs | 9462 BTUs | 39.5 ft² | 3 | $2,285.00 |
| CI-M3C-760-20 | 20 | 47.1 in | 6220 BTUs | 9960 BTUs | 41.6 ft² | 1 | $2,295.00 |
| CI-M3C-760-21 | 21 | 49.4 in | 6531 BTUs | 10458 BTUs | 43.7 ft² | 2 | $2,465.00 |
| CI-M3C-760-22 | 22 | 51.7 in | 6842 BTUs | 10956 BTUs | 45.8 ft² | 3 | $2,555.00 |
| CI-M3C-760-23 | 23 | 53.9 in | 7153 BTUs | 11454 BTUs | 47.8 ft² | 2 | $2,645.00 |
| CI-M3C-760-24 | 24 | 56.3 in | 7464 BTUs | 11952 BTUs | 49.9 ft² | 2 | $2,735.00 |
| CI-M3C-760-25 | 25 | 58.5 in | 7775 BTUs | 12450 BTUs | 52.0 ft² | 1 | $2,745.00 |
| CI-M3C-760-26 | 26 | 60.8 in | 8086 BTUs | 12948 BTUs | 54.1 ft² | 3 | $2,915.00 |
| CI-M3C-760-27 | 27 | 63.1 in | 8397 BTUs | 13446 BTUs | 56.2 ft² | 1 | $2,925.00 |
| CI-M3C-760-28 | 28 | 65.4 in | 8708 BTUs | 13944 BTUs | 58.2 ft² | 1 | $3,015.00 |
| CI-M3C-760-29 | 29 | 67.7 in | 9019 BTUs | 14442 BTUs | 60.3 ft² | 1 | $3,105.00 |
| CI-M3C-760-30 | 30 | 70.0 in | 9330 BTUs | 14940 BTUs | 62.4 ft² | 2 | $3,275.00 |
| CI-M3C-760-31 | 31 | 72.3 in | 9641 BTUs | 15438 BTUs | 64.5 ft² | 1 | $3,285.00 |
| CI-M3C-760-32 | 32 | 74.6 in | 9952 BTUs | 15936 BTUs | 66.6 ft² | 3 | $3,455.00 |
| CI-M3C-760-33 | 33 | 76.9 in | 10263 BTUs | 16434 BTUs | 68.6 ft² | 1 | $3,465.00 |
| CI-M3C-760-34 | 34 | 79.2 in | 10574 BTUs | 16932 BTUs | 70.7 ft² | 1 | $3,555.00 |
| CI-M3C-760-35 | 35 | 81.5 in | 10885 BTUs | 17430 BTUs | 72.8 ft² | 3 | $3,725.00 |
| CI-M3C-760-36 | 36 | 83.8 in | 11196 BTUs | 17928 BTUs | 74.9 ft² | 1 | $3,735.00 |
| CI-M3C-760-37 | 37 | 86.1 in | 11507 BTUs | 18426 BTUs | 77.0 ft² | 3 | $3,905.00 |
| CI-M3C-760-38 | 38 | 88.4 in | 11818 BTUs | 18924 BTUs | 79.0 ft² | 1 | $3,915.00 |
| CI-M3C-760-39 | 39 | 90.7 in | 12129 BTUs | 19422 BTUs | 81.1 ft² | 3 | $4,085.00 |
| CI-M3C-760-40 | 40 | 93.0 in | 12440 BTUs | 19920 BTUs | 83.2 ft² | 3 | $4,175.00 |
