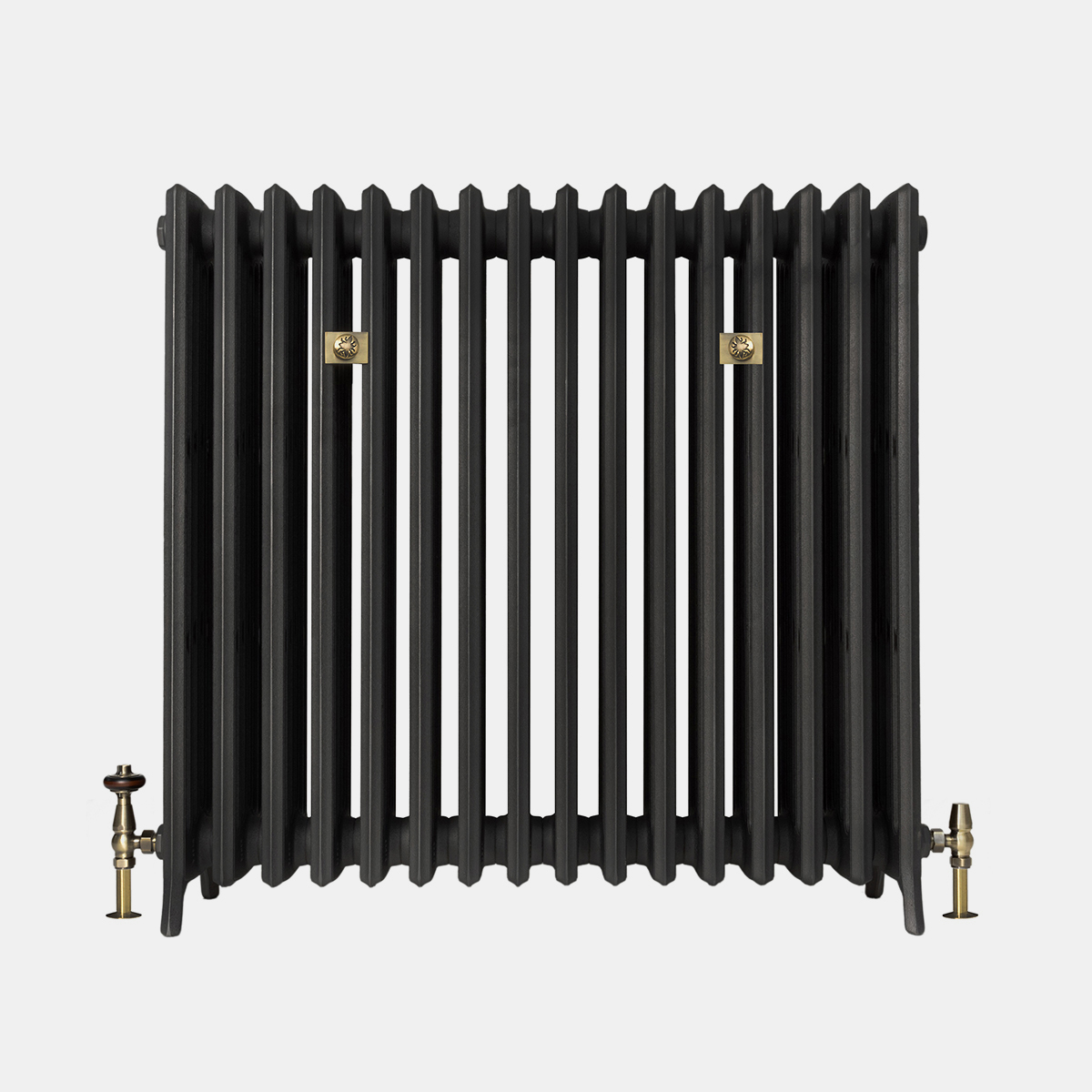

• Grace 6 column 960mm Castrads radiator in Matt Black finish

Grace 6 Column 38in

From: $1,016.00

Technical specs at 3 sections long:

Length
Heat output (Hydronic)
Height
Heat output (Steam)
Depth
Delivered in
SKU: CI-G6C-960

Model Specifications

Label Attribute Value
A Height With Legs 37.4 in
B Bottom Inlet To Floor 4.1 in
C Max Section Depth 10.0 in
D Interaxis Distance 31.5 in
E Height Without Legs 35.4 in
F Section Length 2.4 in
G Mid Section Depth 8.7 in
- Internal Volume 0.40 gal
- Empty Leg Section Weight 29.98 lb
- Empty Mid Section Weight 28.44 lb
- Heating medium Hydronic, One-pipe steam, Two-pipe steam
- EDR Per Section 4.71 ft²
- Hydronic Output (170ºF) 706 BTUs
- Steam Output (215ºF) 1129 BTUs
Grace 6 Column 960mm - Single Section Technical Drawing - SVG

Sizes Available

SKU N
Secs
Length
(L, mm)
Output
(Hydronic, 170ºF)
Output
(Steam, 215ºF)
EDR Delivery
pieces
Price
from
CI-G6C-960-3 3 8.3 in 2118 BTUs 3387 BTUs 14.1 ft² 3 $1,016.00
CI-G6C-960-4 4 10.7 in 2824 BTUs 4516 BTUs 18.8 ft² 2 $1,163.00
CI-G6C-960-5 5 13.1 in 3530 BTUs 5645 BTUs 23.6 ft² 2 $1,310.00
CI-G6C-960-6 6 15.5 in 4236 BTUs 6774 BTUs 28.3 ft² 2 $1,457.00
CI-G6C-960-7 7 17.8 in 4942 BTUs 7903 BTUs 33.0 ft² 5 $1,604.00
CI-G6C-960-8 8 20.2 in 5648 BTUs 9032 BTUs 37.7 ft² 5 $1,751.00
CI-G6C-960-9 9 22.6 in 6354 BTUs 10161 BTUs 42.4 ft² 1 $1,818.00
CI-G6C-960-10 10 25.0 in 7060 BTUs 11290 BTUs 47.1 ft² 5 $2,045.00
CI-G6C-960-11 11 27.4 in 7766 BTUs 12419 BTUs 51.8 ft² 2 $2,192.00
CI-G6C-960-12 12 29.8 in 8472 BTUs 13548 BTUs 56.5 ft² 2 $2,339.00
CI-G6C-960-13 13 32.1 in 9178 BTUs 14677 BTUs 61.2 ft² 3 $2,486.00
CI-G6C-960-14 14 34.5 in 9884 BTUs 15806 BTUs 65.9 ft² 4 $2,633.00
CI-G6C-960-15 15 36.9 in 10590 BTUs 16935 BTUs 70.7 ft² 4 $2,780.00
CI-G6C-960-16 16 39.3 in 11296 BTUs 18064 BTUs 75.4 ft² 3 $2,927.00
CI-G6C-960-17 17 41.7 in 12002 BTUs 19193 BTUs 80.1 ft² 5 $3,074.00
CI-G6C-960-18 18 44.1 in 12708 BTUs 20322 BTUs 84.8 ft² 5 $3,221.00
CI-G6C-960-19 19 46.4 in 13414 BTUs 21451 BTUs 89.5 ft² 4 $3,368.00
CI-G6C-960-20 20 48.8 in 14120 BTUs 22580 BTUs 94.2 ft² 3 $3,515.00
CI-G6C-960-21 21 51.2 in 14826 BTUs 23709 BTUs 98.9 ft² 2 $3,662.00
CI-G6C-960-22 22 53.6 in 15532 BTUs 24838 BTUs 103.6 ft² 2 $3,809.00
CI-G6C-960-23 23 55.9 in 16238 BTUs 25967 BTUs 108.3 ft² 1 $3,876.00
CI-G6C-960-24 24 58.3 in 16944 BTUs 27096 BTUs 113.0 ft² 3 $4,103.00
CI-G6C-960-25 25 60.7 in 17650 BTUs 28225 BTUs 117.8 ft² 2 $4,250.00
CI-G6C-960-26 26 63.1 in 18356 BTUs 29354 BTUs 122.5 ft² 4 $4,397.00
CI-G6C-960-27 27 65.5 in 19062 BTUs 30483 BTUs 127.2 ft² 5 $4,544.00
CI-G6C-960-28 28 67.9 in 19768 BTUs 31612 BTUs 131.9 ft² 3 $4,691.00
CI-G6C-960-29 29 70.2 in 20474 BTUs 32741 BTUs 136.6 ft² 1 $4,758.00
CI-G6C-960-30 30 72.6 in 21180 BTUs 33870 BTUs 141.3 ft² 3 $4,985.00
CI-G6C-960-31 31 75.0 in 21886 BTUs 34999 BTUs 146.0 ft² 4 $5,132.00
CI-G6C-960-32 32 77.4 in 22592 BTUs 36128 BTUs 150.7 ft² 5 $5,279.00
CI-G6C-960-33 33 79.8 in 23298 BTUs 37257 BTUs 155.4 ft² 1 $5,346.00
CI-G6C-960-34 34 82.2 in 24004 BTUs 38386 BTUs 160.1 ft² 4 $5,573.00
CI-G6C-960-35 35 84.5 in 24710 BTUs 39515 BTUs 164.9 ft² 4 $5,720.00
CI-G6C-960-36 36 86.9 in 25416 BTUs 40644 BTUs 169.6 ft² 4 $5,867.00
CI-G6C-960-37 37 89.3 in 26122 BTUs 41773 BTUs 174.3 ft² 1 $5,934.00
CI-G6C-960-38 38 91.7 in 26828 BTUs 42902 BTUs 179.0 ft² 1 $6,081.00
CI-G6C-960-39 39 94.1 in 27534 BTUs 44031 BTUs 183.7 ft² 5 $6,308.00
CI-G6C-960-40 40 96.5 in 28240 BTUs 45160 BTUs 188.4 ft² 5 $6,455.00
Grace 6 Column 960mm - 10 Section Battery Technical Drawing - SVG
