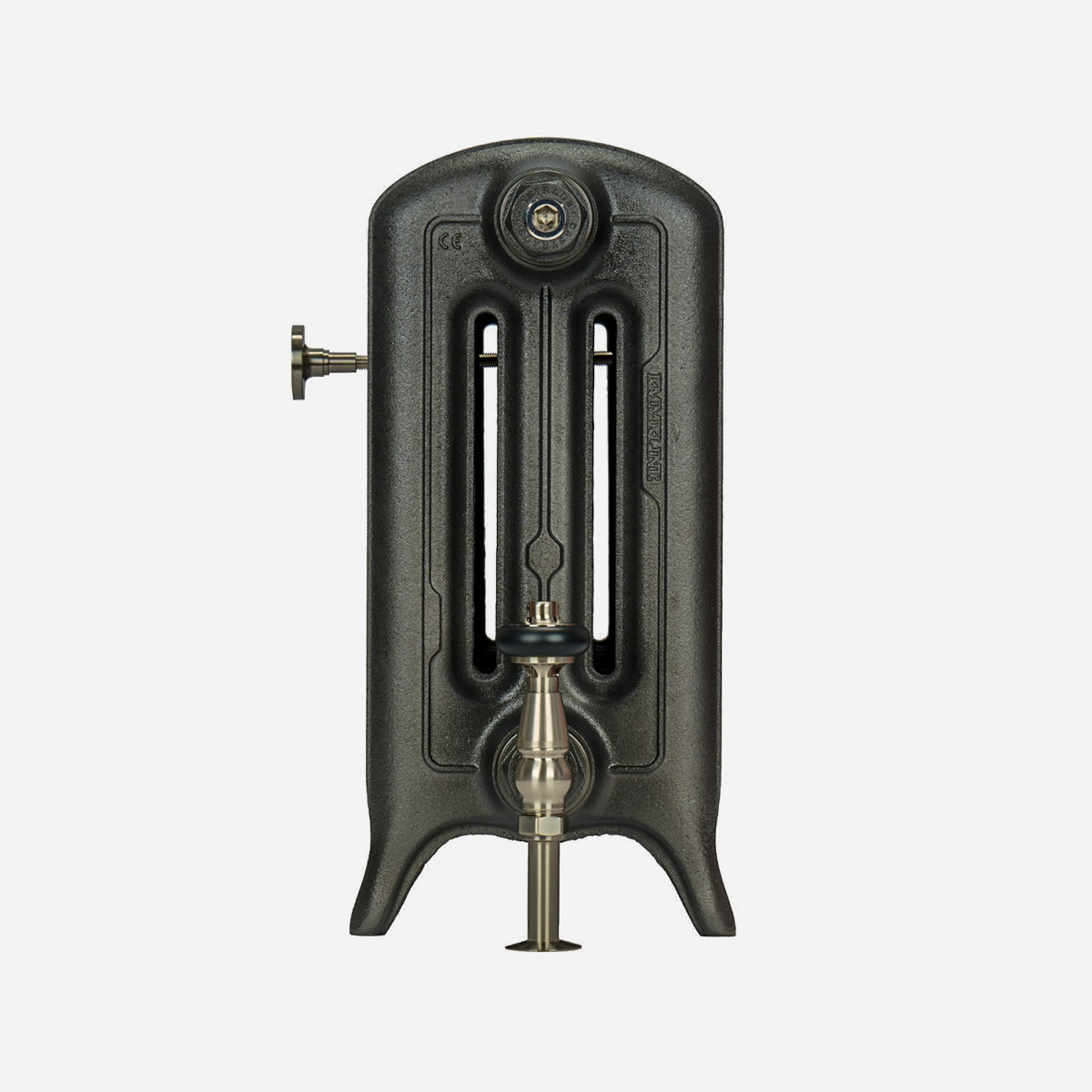

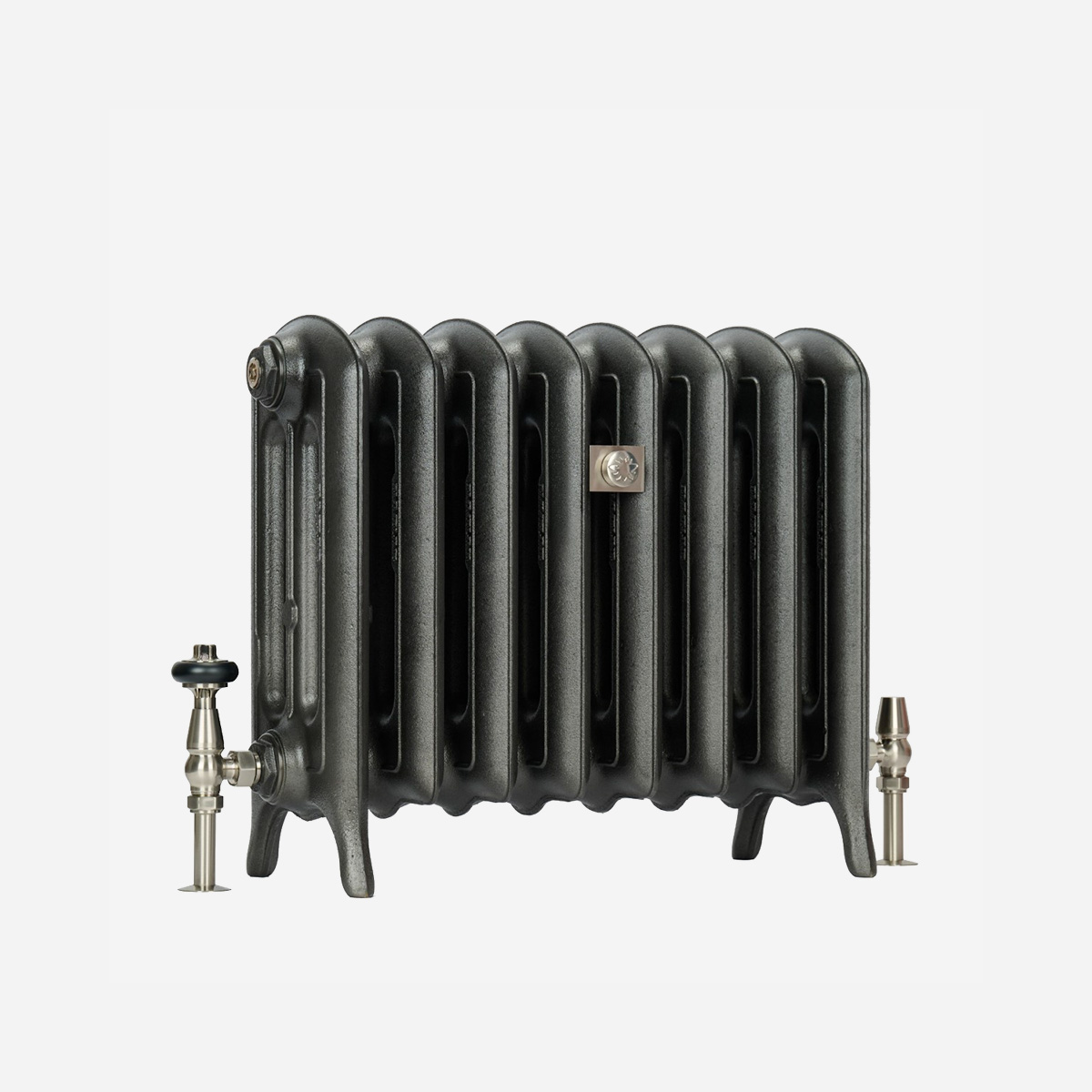

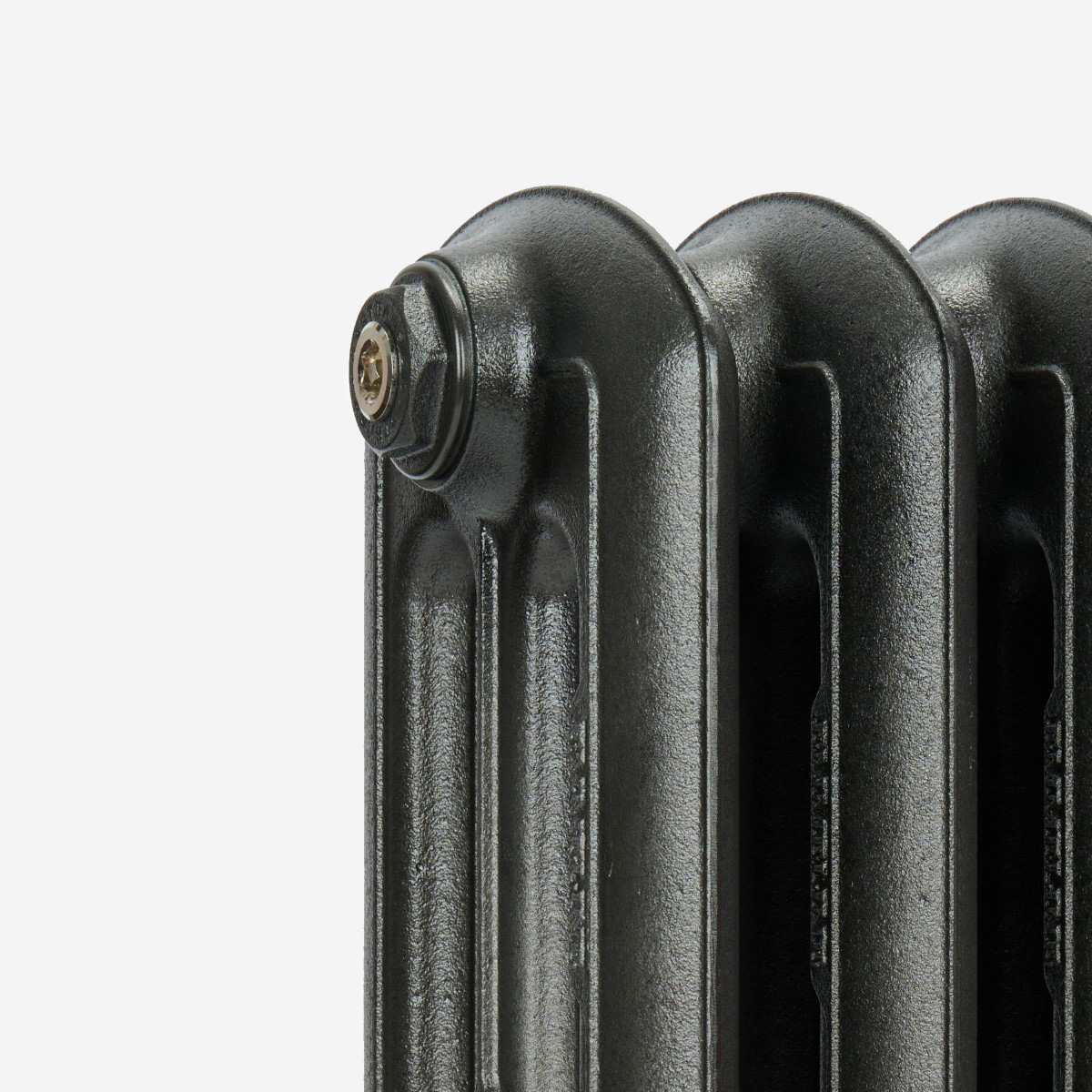

Emmeline III 18in
From: $837.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 16 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 18.5 in |
| B | Bottom Inlet To Floor | 3.9 in |
| C | Max Section Depth | 9.1 in |
| D | Interaxis Distance | 12.7 in |
| E | Height Without Legs | 16.4 in |
| F | Section Length | 2.6 in |
| G | Mid Section Depth | 8.3 in |
| - | Internal Volume | 0.35 gal |
| - | Empty Leg Section Weight | 16.76 lb |
| - | Empty Mid Section Weight | 14.33 lb |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
| - | EDR Per Section | 2.17 ft² |
| - | Hydronic Output (170ºF) | 325 BTUs |
| - | Steam Output (215ºF) | 520 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-EML3-470-3 | 3 | 9.0 in | 975 BTUs | 1560 BTUs | 6.5 ft² | 1 | $837.00 |
| CI-EML3-470-4 | 4 | 11.7 in | 1300 BTUs | 2080 BTUs | 8.7 ft² | 1 | $951.00 |
| CI-EML3-470-5 | 5 | 14.3 in | 1625 BTUs | 2600 BTUs | 10.9 ft² | 1 | $1,065.00 |
| CI-EML3-470-6 | 6 | 16.9 in | 1950 BTUs | 3120 BTUs | 13.0 ft² | 1 | $1,179.00 |
| CI-EML3-470-7 | 7 | 19.5 in | 2275 BTUs | 3640 BTUs | 15.2 ft² | 1 | $1,293.00 |
| CI-EML3-470-8 | 8 | 22.1 in | 2600 BTUs | 4160 BTUs | 17.4 ft² | 1 | $1,407.00 |
| CI-EML3-470-9 | 9 | 24.7 in | 2925 BTUs | 4680 BTUs | 19.5 ft² | 1 | $1,521.00 |
| CI-EML3-470-10 | 10 | 27.4 in | 3250 BTUs | 5200 BTUs | 21.7 ft² | 1 | $1,635.00 |
| CI-EML3-470-11 | 11 | 30.0 in | 3575 BTUs | 5720 BTUs | 23.9 ft² | 1 | $1,749.00 |
| CI-EML3-470-12 | 12 | 32.6 in | 3900 BTUs | 6240 BTUs | 26.0 ft² | 1 | $1,863.00 |
| CI-EML3-470-13 | 13 | 35.2 in | 4225 BTUs | 6760 BTUs | 28.2 ft² | 1 | $1,977.00 |
| CI-EML3-470-14 | 14 | 37.8 in | 4550 BTUs | 7280 BTUs | 30.4 ft² | 1 | $2,091.00 |
| CI-EML3-470-15 | 15 | 40.4 in | 4875 BTUs | 7800 BTUs | 32.6 ft² | 1 | $2,205.00 |
| CI-EML3-470-16 | 16 | 43.1 in | 5200 BTUs | 8320 BTUs | 34.7 ft² | 1 | $2,319.00 |
| CI-EML3-470-17 | 17 | 45.7 in | 5525 BTUs | 8840 BTUs | 36.9 ft² | 2 | $2,513.00 |
| CI-EML3-470-18 | 18 | 48.3 in | 5850 BTUs | 9360 BTUs | 39.1 ft² | 2 | $2,627.00 |
| CI-EML3-470-19 | 19 | 50.9 in | 6175 BTUs | 9880 BTUs | 41.2 ft² | 2 | $2,741.00 |
| CI-EML3-470-20 | 20 | 53.5 in | 6500 BTUs | 10400 BTUs | 43.4 ft² | 2 | $2,855.00 |
| CI-EML3-470-21 | 21 | 56.1 in | 6825 BTUs | 10920 BTUs | 45.6 ft² | 2 | $2,969.00 |
| CI-EML3-470-22 | 22 | 58.8 in | 7150 BTUs | 11440 BTUs | 47.7 ft² | 2 | $3,083.00 |
| CI-EML3-470-23 | 23 | 61.4 in | 7475 BTUs | 11960 BTUs | 49.9 ft² | 2 | $3,197.00 |
| CI-EML3-470-24 | 24 | 64.0 in | 7800 BTUs | 12480 BTUs | 52.1 ft² | 2 | $3,311.00 |
| CI-EML3-470-25 | 25 | 66.6 in | 8125 BTUs | 13000 BTUs | 54.3 ft² | 2 | $3,425.00 |
| CI-EML3-470-26 | 26 | 69.3 in | 8450 BTUs | 13520 BTUs | 56.4 ft² | 3 | $3,539.00 |
| CI-EML3-470-27 | 27 | 71.9 in | 8775 BTUs | 14040 BTUs | 58.6 ft² | 3 | $3,653.00 |
| CI-EML3-470-28 | 28 | 74.5 in | 9100 BTUs | 14560 BTUs | 60.8 ft² | 3 | $3,767.00 |
| CI-EML3-470-29 | 29 | 77.1 in | 9425 BTUs | 15080 BTUs | 62.9 ft² | 3 | $3,881.00 |
| CI-EML3-470-30 | 30 | 79.7 in | 9750 BTUs | 15600 BTUs | 65.1 ft² | 3 | $3,995.00 |
| CI-EML3-470-31 | 31 | 82.3 in | 10075 BTUs | 16120 BTUs | 67.3 ft² | 3 | $4,109.00 |
| CI-EML3-470-32 | 32 | 85.0 in | 10400 BTUs | 16640 BTUs | 69.4 ft² | 3 | $4,223.00 |
| CI-EML3-470-33 | 33 | 87.6 in | 10725 BTUs | 17160 BTUs | 71.6 ft² | 3 | $4,337.00 |
| CI-EML3-470-34 | 34 | 90.2 in | 11050 BTUs | 17680 BTUs | 73.8 ft² | 3 | $4,451.00 |
| CI-EML3-470-35 | 35 | 92.8 in | 11375 BTUs | 18200 BTUs | 76.0 ft² | 3 | $4,565.00 |
| CI-EML3-470-36 | 36 | 95.4 in | 11700 BTUs | 18720 BTUs | 78.1 ft² | 3 | $4,679.00 |
| CI-EML3-470-37 | 37 | 98.0 in | 12025 BTUs | 19240 BTUs | 80.3 ft² | 3 | $4,793.00 |
| CI-EML3-470-38 | 38 | 100.7 in | 12350 BTUs | 19760 BTUs | 82.5 ft² | 3 | $4,907.00 |
| CI-EML3-470-39 | 39 | 103.3 in | 12675 BTUs | 20280 BTUs | 84.6 ft² | 3 | $5,021.00 |
| CI-EML3-470-40 | 40 | 105.9 in | 13000 BTUs | 20800 BTUs | 86.8 ft² | 3 | $5,135.00 |
