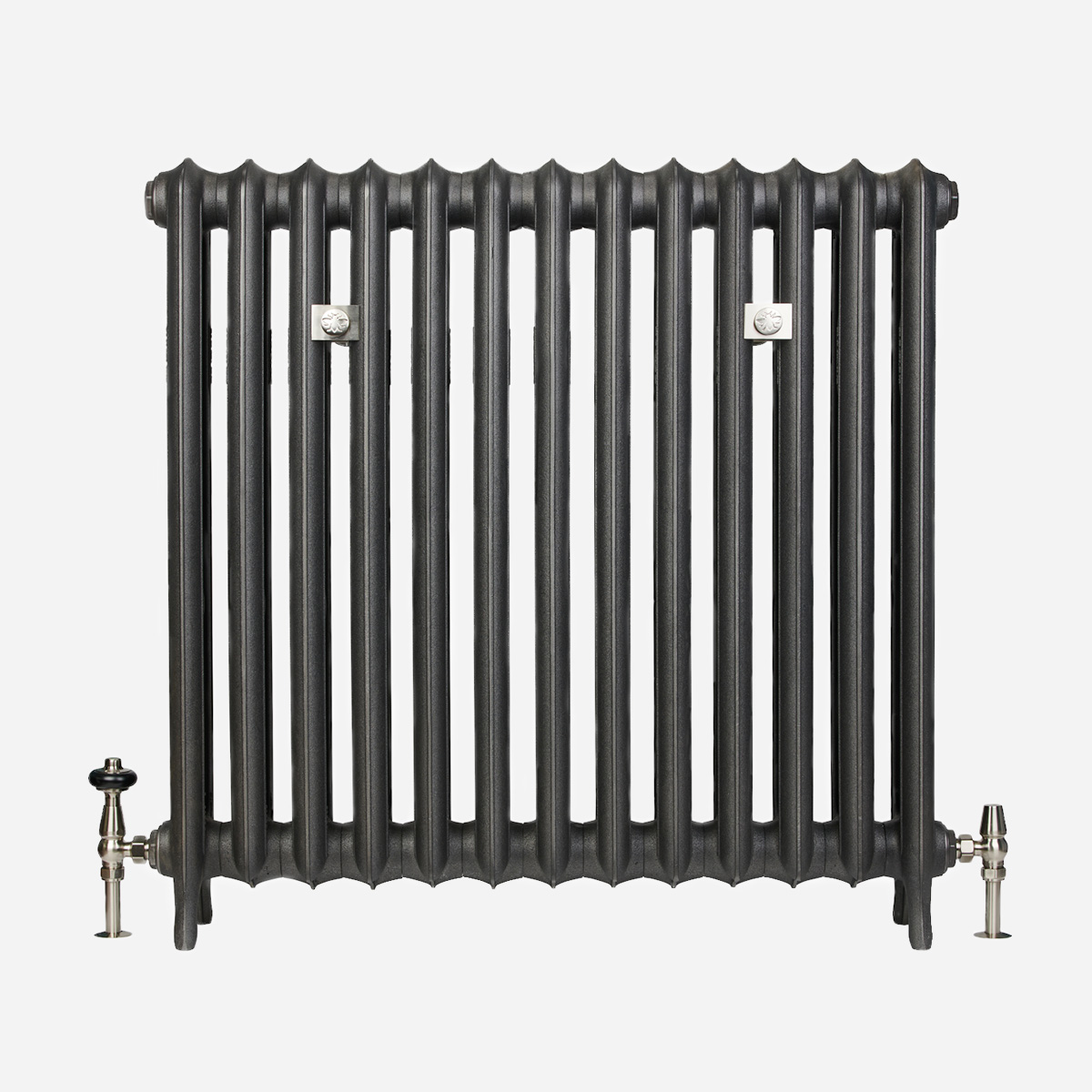

Emmeline II 34in
From: $831.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 13 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 34.3 in |
| B | Bottom Inlet To Floor | 3.9 in |
| C | Max Section Depth | 6.7 in |
| D | Interaxis Distance | 28.5 in |
| E | Height Without Legs | 32.0 in |
| F | Section Length | 2.6 in |
| G | Mid Section Depth | 5.9 in |
| - | Internal Volume | 0.50 gal |
| - | Empty Leg Section Weight | 20.06 lb |
| - | Empty Mid Section Weight | 18.30 lb |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
| - | EDR Per Section | 3.03 ft² |
| - | Hydronic Output (170ºF) | 454 BTUs |
| - | Steam Output (215ºF) | 727 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-EML2-870-3 | 3 | 9.0 in | 1362 BTUs | 2181 BTUs | 9.1 ft² | 1 | $831.00 |
| CI-EML2-870-4 | 4 | 11.7 in | 1816 BTUs | 2908 BTUs | 12.1 ft² | 1 | $943.00 |
| CI-EML2-870-5 | 5 | 14.3 in | 2270 BTUs | 3635 BTUs | 15.2 ft² | 1 | $1,055.00 |
| CI-EML2-870-6 | 6 | 16.9 in | 2724 BTUs | 4362 BTUs | 18.2 ft² | 1 | $1,167.00 |
| CI-EML2-870-7 | 7 | 19.5 in | 3178 BTUs | 5089 BTUs | 21.2 ft² | 1 | $1,279.00 |
| CI-EML2-870-8 | 8 | 22.1 in | 3632 BTUs | 5816 BTUs | 24.2 ft² | 1 | $1,391.00 |
| CI-EML2-870-9 | 9 | 24.7 in | 4086 BTUs | 6543 BTUs | 27.3 ft² | 1 | $1,503.00 |
| CI-EML2-870-10 | 10 | 27.4 in | 4540 BTUs | 7270 BTUs | 30.3 ft² | 1 | $1,615.00 |
| CI-EML2-870-11 | 11 | 30.0 in | 4994 BTUs | 7997 BTUs | 33.3 ft² | 1 | $1,727.00 |
| CI-EML2-870-12 | 12 | 32.6 in | 5448 BTUs | 8724 BTUs | 36.4 ft² | 1 | $1,839.00 |
| CI-EML2-870-13 | 13 | 35.2 in | 5902 BTUs | 9451 BTUs | 39.4 ft² | 1 | $1,951.00 |
| CI-EML2-870-14 | 14 | 37.8 in | 6356 BTUs | 10178 BTUs | 42.4 ft² | 2 | $2,143.00 |
| CI-EML2-870-15 | 15 | 40.4 in | 6810 BTUs | 10905 BTUs | 45.5 ft² | 2 | $2,255.00 |
| CI-EML2-870-16 | 16 | 43.1 in | 7264 BTUs | 11632 BTUs | 48.5 ft² | 2 | $2,367.00 |
| CI-EML2-870-17 | 17 | 45.7 in | 7718 BTUs | 12359 BTUs | 51.5 ft² | 2 | $2,479.00 |
| CI-EML2-870-18 | 18 | 48.3 in | 8172 BTUs | 13086 BTUs | 54.5 ft² | 2 | $2,591.00 |
| CI-EML2-870-19 | 19 | 50.9 in | 8626 BTUs | 13813 BTUs | 57.6 ft² | 2 | $2,703.00 |
| CI-EML2-870-20 | 20 | 53.5 in | 9080 BTUs | 14540 BTUs | 60.6 ft² | 2 | $2,815.00 |
| CI-EML2-870-21 | 21 | 56.1 in | 9534 BTUs | 15267 BTUs | 63.6 ft² | 2 | $2,927.00 |
| CI-EML2-870-22 | 22 | 58.8 in | 9988 BTUs | 15994 BTUs | 66.7 ft² | 2 | $3,039.00 |
| CI-EML2-870-23 | 23 | 61.4 in | 10442 BTUs | 16721 BTUs | 69.7 ft² | 2 | $3,151.00 |
| CI-EML2-870-24 | 24 | 64.0 in | 10896 BTUs | 17448 BTUs | 72.7 ft² | 3 | $3,263.00 |
| CI-EML2-870-25 | 25 | 66.6 in | 11350 BTUs | 18175 BTUs | 75.8 ft² | 2 | $3,375.00 |
| CI-EML2-870-26 | 26 | 69.3 in | 11804 BTUs | 18902 BTUs | 78.8 ft² | 3 | $3,487.00 |
| CI-EML2-870-27 | 27 | 71.9 in | 12258 BTUs | 19629 BTUs | 81.8 ft² | 3 | $3,599.00 |
| CI-EML2-870-28 | 28 | 74.5 in | 12712 BTUs | 20356 BTUs | 84.8 ft² | 3 | $3,711.00 |
| CI-EML2-870-29 | 29 | 77.1 in | 13166 BTUs | 21083 BTUs | 87.9 ft² | 3 | $3,823.00 |
| CI-EML2-870-30 | 30 | 79.7 in | 13620 BTUs | 21810 BTUs | 90.9 ft² | 3 | $3,935.00 |
| CI-EML2-870-31 | 31 | 82.3 in | 14074 BTUs | 22537 BTUs | 93.9 ft² | 3 | $4,047.00 |
| CI-EML2-870-32 | 32 | 85.0 in | 14528 BTUs | 23264 BTUs | 97.0 ft² | 3 | $4,159.00 |
| CI-EML2-870-33 | 33 | 87.6 in | 14982 BTUs | 23991 BTUs | 100.0 ft² | 3 | $4,271.00 |
| CI-EML2-870-34 | 34 | 90.2 in | 15436 BTUs | 24718 BTUs | 103.0 ft² | 3 | $4,383.00 |
| CI-EML2-870-35 | 35 | 92.8 in | 15890 BTUs | 25445 BTUs | 106.1 ft² | 3 | $4,495.00 |
| CI-EML2-870-36 | 36 | 95.4 in | 16344 BTUs | 26172 BTUs | 109.1 ft² | 3 | $4,607.00 |
| CI-EML2-870-37 | 37 | 98.0 in | 16798 BTUs | 26899 BTUs | 112.1 ft² | 3 | $4,719.00 |
| CI-EML2-870-38 | 38 | 100.7 in | 17252 BTUs | 27626 BTUs | 115.1 ft² | 4 | $4,831.00 |
| CI-EML2-870-39 | 39 | 103.3 in | 17706 BTUs | 28353 BTUs | 118.2 ft² | 4 | $4,943.00 |
| CI-EML2-870-40 | 40 | 105.9 in | 18160 BTUs | 29080 BTUs | 121.2 ft² | 4 | $5,055.00 |
