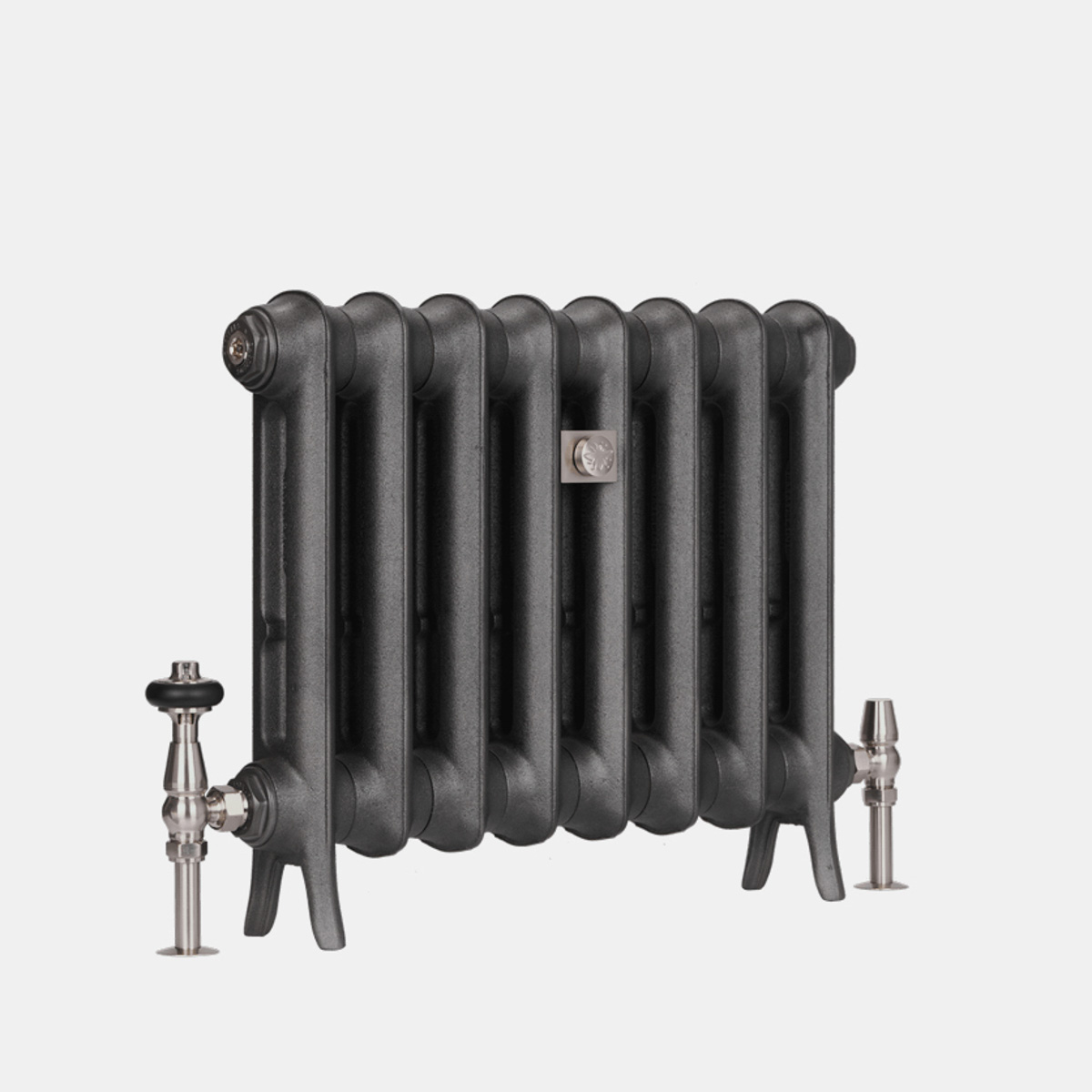

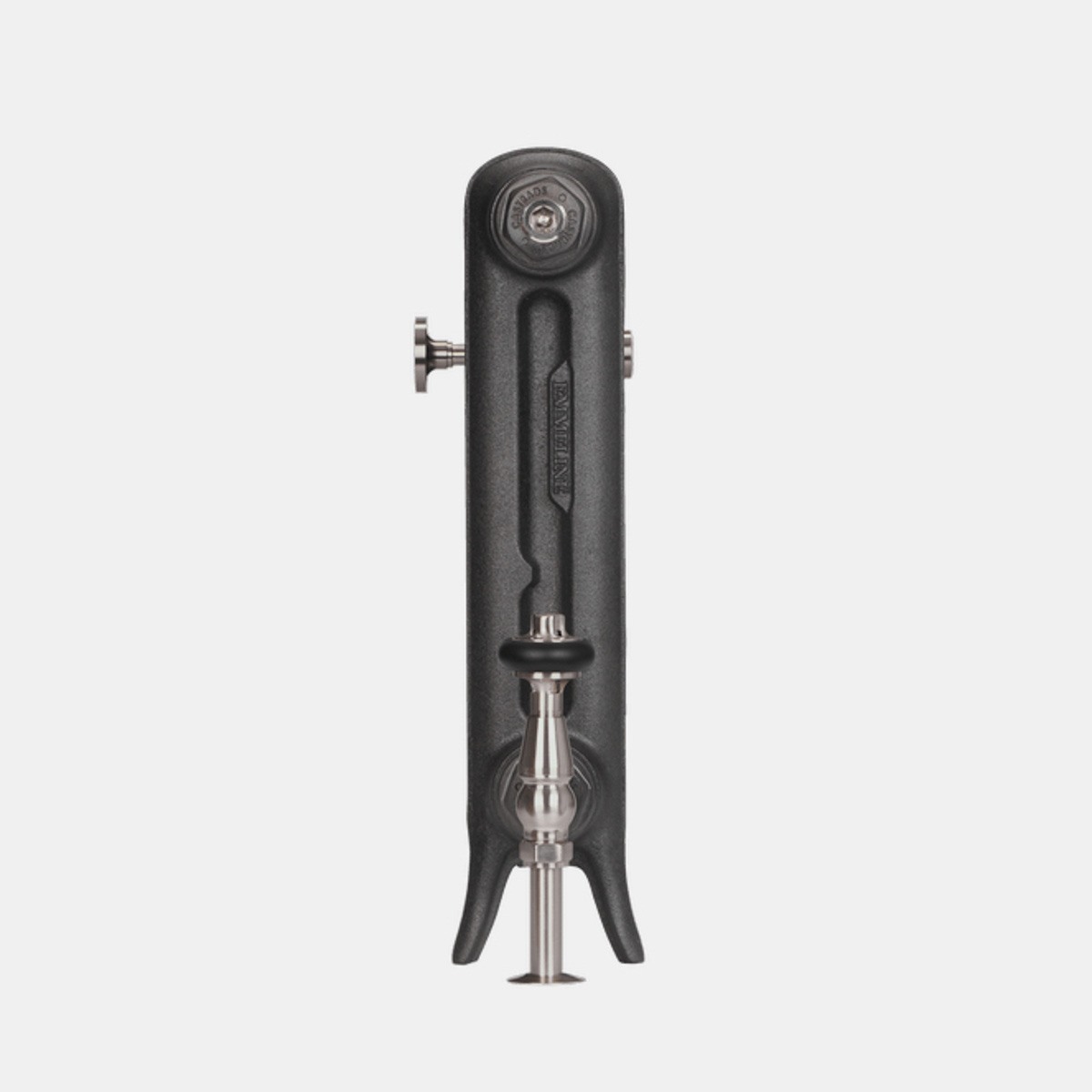

Emmeline I 18in
From: $711.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 16 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 18.3 in |
| B | Bottom Inlet To Floor | 3.9 in |
| C | Max Section Depth | 4.3 in |
| D | Interaxis Distance | 12.7 in |
| E | Height Without Legs | 16.0 in |
| F | Section Length | 2.6 in |
| G | Mid Section Depth | 3.5 in |
| - | Internal Volume | 0.03 gal |
| - | Empty Leg Section Weight | 7.72 lb |
| - | Empty Mid Section Weight | 7.05 lb |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
| - | EDR Per Section | 1.19 ft² |
| - | Hydronic Output (170ºF) | 178 BTUs |
| - | Steam Output (215ºF) | 284 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-EML1-465-3 | 3 | 9.0 in | 534 BTUs | 852 BTUs | 3.6 ft² | 1 | $711.00 |
| CI-EML1-465-4 | 4 | 11.7 in | 712 BTUs | 1136 BTUs | 4.8 ft² | 1 | $783.00 |
| CI-EML1-465-5 | 5 | 14.3 in | 890 BTUs | 1420 BTUs | 6.0 ft² | 1 | $855.00 |
| CI-EML1-465-6 | 6 | 16.9 in | 1068 BTUs | 1704 BTUs | 7.1 ft² | 1 | $927.00 |
| CI-EML1-465-7 | 7 | 19.5 in | 1246 BTUs | 1988 BTUs | 8.3 ft² | 1 | $999.00 |
| CI-EML1-465-8 | 8 | 22.1 in | 1424 BTUs | 2272 BTUs | 9.5 ft² | 1 | $1,071.00 |
| CI-EML1-465-9 | 9 | 24.7 in | 1602 BTUs | 2556 BTUs | 10.7 ft² | 1 | $1,143.00 |
| CI-EML1-465-10 | 10 | 27.4 in | 1780 BTUs | 2840 BTUs | 11.9 ft² | 1 | $1,215.00 |
| CI-EML1-465-11 | 11 | 30.0 in | 1958 BTUs | 3124 BTUs | 13.1 ft² | 1 | $1,287.00 |
| CI-EML1-465-12 | 12 | 32.6 in | 2136 BTUs | 3408 BTUs | 14.3 ft² | 1 | $1,359.00 |
| CI-EML1-465-13 | 13 | 35.2 in | 2314 BTUs | 3692 BTUs | 15.5 ft² | 1 | $1,431.00 |
| CI-EML1-465-14 | 14 | 37.8 in | 2492 BTUs | 3976 BTUs | 16.7 ft² | 1 | $1,503.00 |
| CI-EML1-465-15 | 15 | 40.4 in | 2670 BTUs | 4260 BTUs | 17.9 ft² | 1 | $1,575.00 |
| CI-EML1-465-16 | 16 | 43.1 in | 2848 BTUs | 4544 BTUs | 19.0 ft² | 1 | $1,647.00 |
| CI-EML1-465-17 | 17 | 45.7 in | 3026 BTUs | 4828 BTUs | 20.2 ft² | 2 | $1,799.00 |
| CI-EML1-465-18 | 18 | 48.3 in | 3204 BTUs | 5112 BTUs | 21.4 ft² | 2 | $1,871.00 |
| CI-EML1-465-19 | 19 | 50.9 in | 3382 BTUs | 5396 BTUs | 22.6 ft² | 2 | $1,943.00 |
| CI-EML1-465-20 | 20 | 53.5 in | 3560 BTUs | 5680 BTUs | 23.8 ft² | 2 | $2,015.00 |
| CI-EML1-465-21 | 21 | 56.1 in | 3738 BTUs | 5964 BTUs | 25.0 ft² | 2 | $2,087.00 |
| CI-EML1-465-22 | 22 | 58.8 in | 3916 BTUs | 6248 BTUs | 26.2 ft² | 2 | $2,159.00 |
| CI-EML1-465-23 | 23 | 61.4 in | 4094 BTUs | 6532 BTUs | 27.4 ft² | 2 | $2,231.00 |
| CI-EML1-465-24 | 24 | 64.0 in | 4272 BTUs | 6816 BTUs | 28.6 ft² | 2 | $2,303.00 |
| CI-EML1-465-25 | 25 | 66.6 in | 4450 BTUs | 7100 BTUs | 29.8 ft² | 2 | $2,375.00 |
| CI-EML1-465-26 | 26 | 69.3 in | 4628 BTUs | 7384 BTUs | 30.9 ft² | 2 | $2,447.00 |
| CI-EML1-465-27 | 27 | 71.9 in | 4806 BTUs | 7668 BTUs | 32.1 ft² | 2 | $2,519.00 |
| CI-EML1-465-28 | 28 | 74.5 in | 4984 BTUs | 7952 BTUs | 33.3 ft² | 2 | $2,591.00 |
| CI-EML1-465-29 | 29 | 77.1 in | 5162 BTUs | 8236 BTUs | 34.5 ft² | 2 | $2,663.00 |
| CI-EML1-465-30 | 30 | 79.7 in | 5340 BTUs | 8520 BTUs | 35.7 ft² | 3 | $2,735.00 |
| CI-EML1-465-31 | 31 | 82.3 in | 5518 BTUs | 8804 BTUs | 36.9 ft² | 3 | $2,807.00 |
| CI-EML1-465-32 | 32 | 85.0 in | 5696 BTUs | 9088 BTUs | 38.1 ft² | 3 | $2,879.00 |
| CI-EML1-465-33 | 33 | 87.6 in | 5874 BTUs | 9372 BTUs | 39.3 ft² | 3 | $2,951.00 |
| CI-EML1-465-34 | 34 | 90.2 in | 6052 BTUs | 9656 BTUs | 40.5 ft² | 3 | $3,023.00 |
| CI-EML1-465-35 | 35 | 92.8 in | 6230 BTUs | 9940 BTUs | 41.7 ft² | 3 | $3,095.00 |
| CI-EML1-465-36 | 36 | 95.4 in | 6408 BTUs | 10224 BTUs | 42.8 ft² | 3 | $3,167.00 |
| CI-EML1-465-37 | 37 | 98.0 in | 6586 BTUs | 10508 BTUs | 44.0 ft² | 3 | $3,239.00 |
| CI-EML1-465-38 | 38 | 100.7 in | 6764 BTUs | 10792 BTUs | 45.2 ft² | 3 | $3,311.00 |
| CI-EML1-465-39 | 39 | 103.3 in | 6942 BTUs | 11076 BTUs | 46.4 ft² | 3 | $3,383.00 |
| CI-EML1-465-40 | 40 | 105.9 in | 7120 BTUs | 11360 BTUs | 47.6 ft² | 3 | $3,455.00 |
