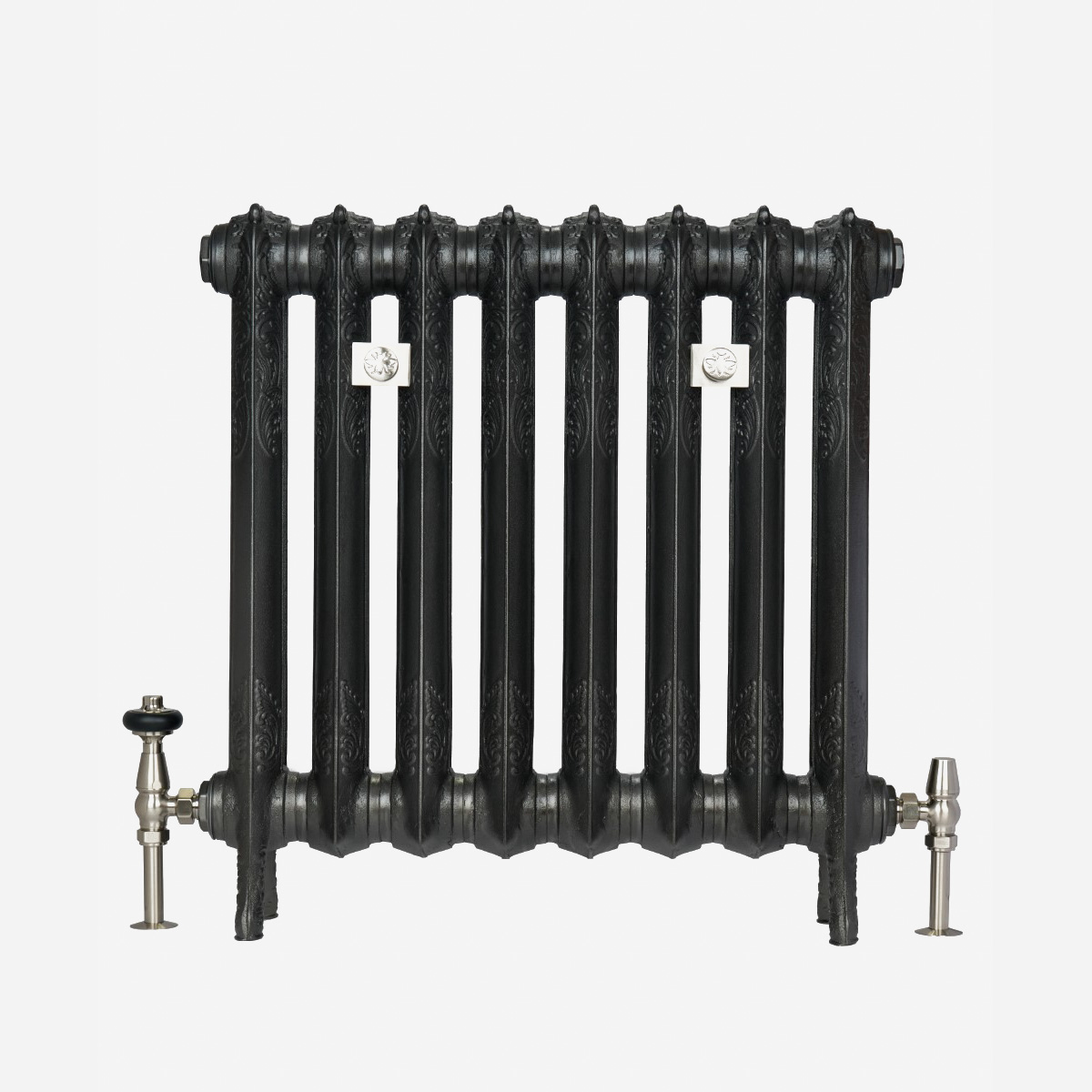

• Rococo I cast iron radiator in Black Iron with Satin Nickel accessories

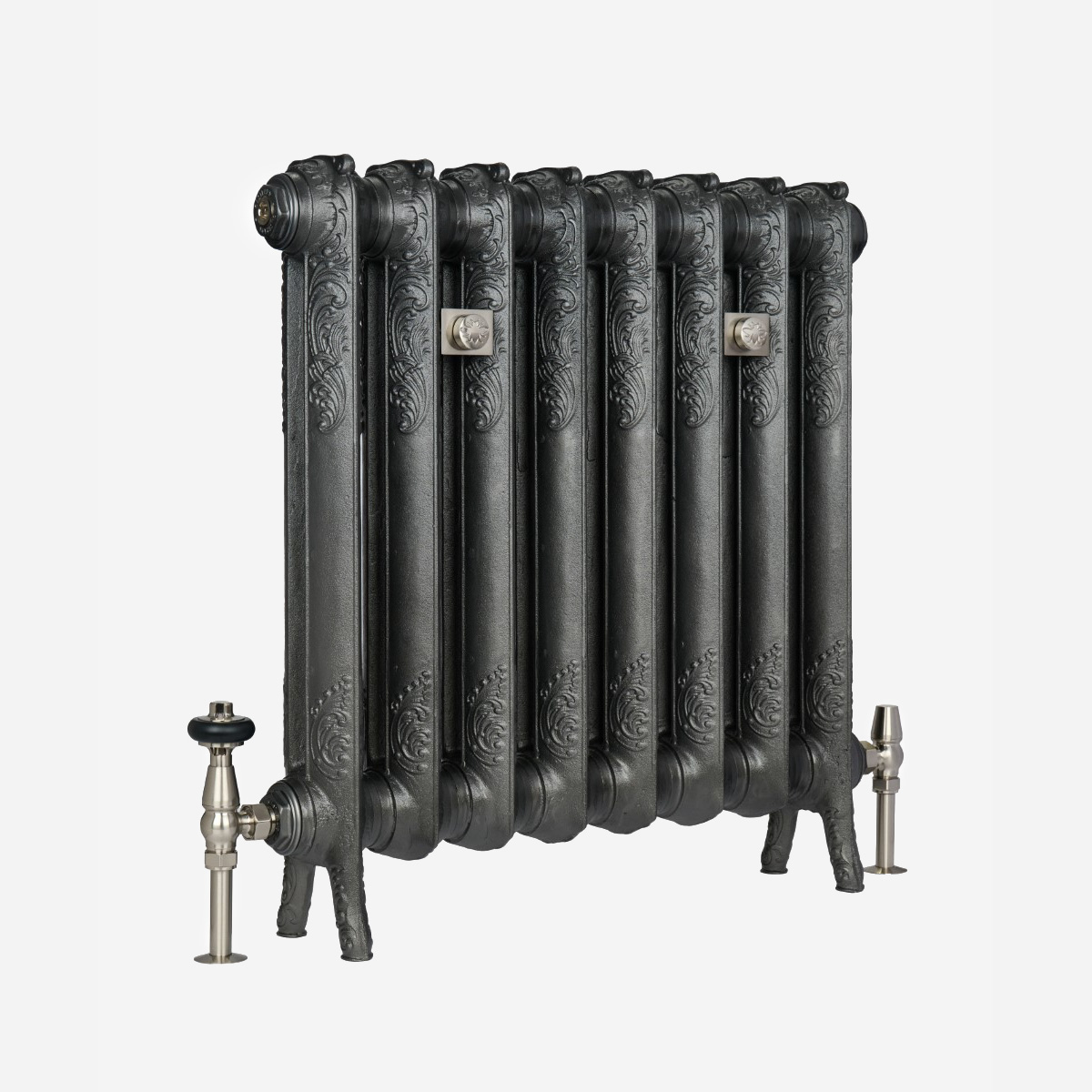

  • Rococo I cast iron radiator in Black Iron with Satin Nickel accessories - angled view

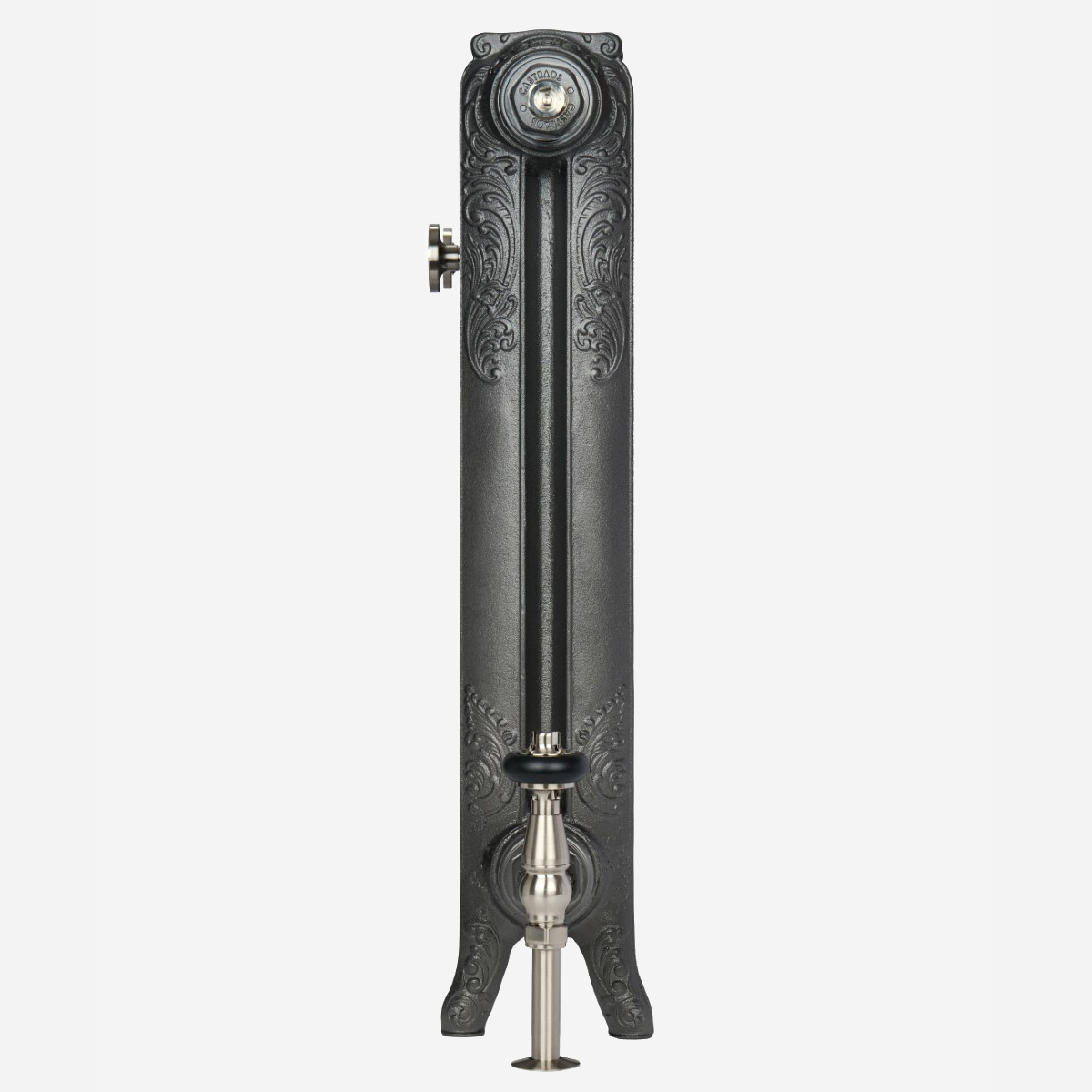

  • Rococo I cast iron radiator in Black Iron with Satin Nickel accessories - valve side view

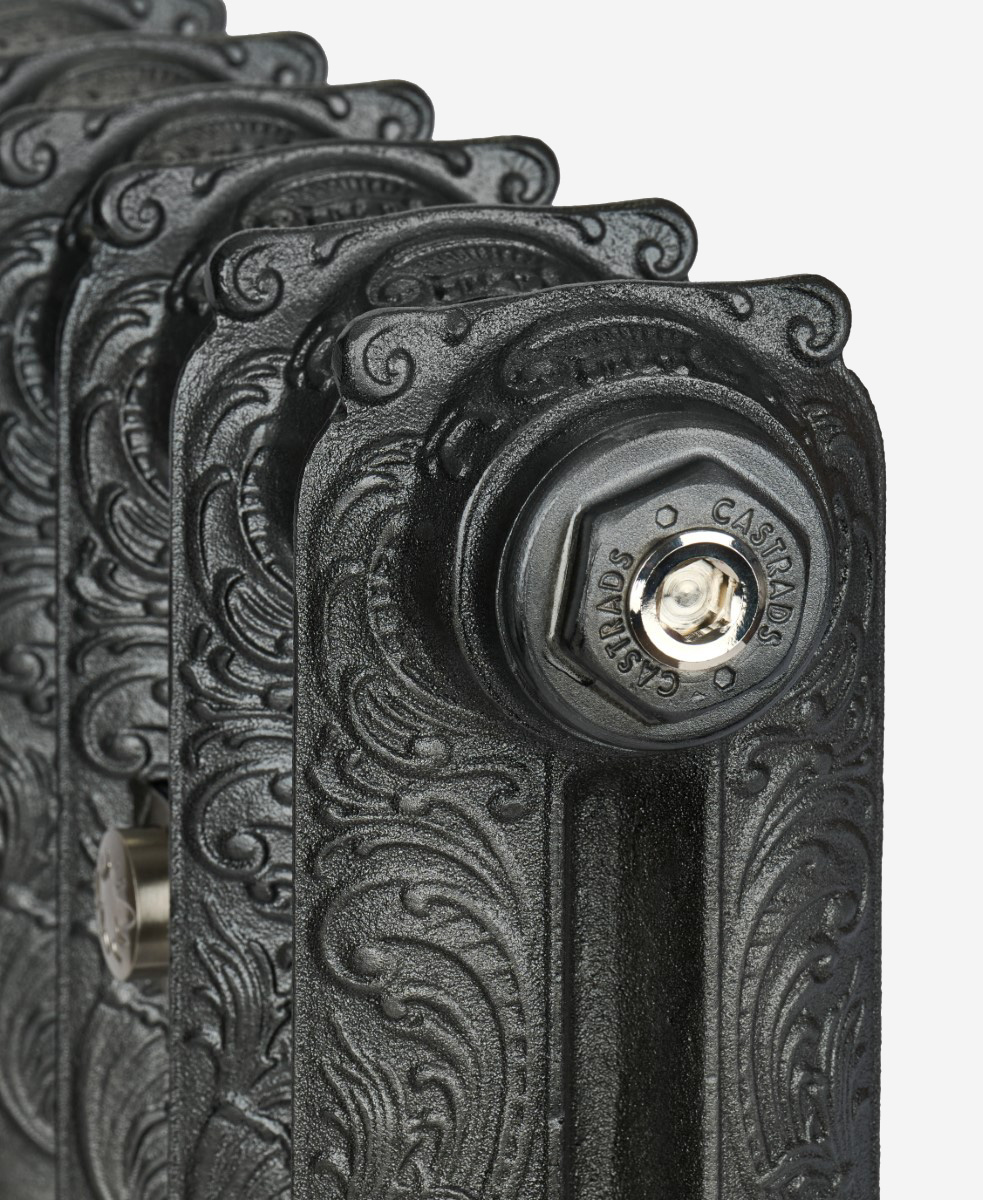

  • Rococo I cast iron radiator in Black Iron with Satin Nickel accessories - blanking plug view

Rococo I 660mm

From: £363.60

Technical specs at 3 sections long:

Length
Heat output (∆T50)
Height
Pipe centres
Depth
Delivered in

Model Specifications

Label Attribute Value
A Height With Legs (mm) 660
B Bottom Inlet To Floor (mm) 114
C Max Section Depth (mm) 140
- Output (ΔT50, W) 69
- Output (ΔT30, W) 36.4
D Interaxis Distance (mm) 500
E Height Without Legs (mm) 592
F Section Length (mm) 76
G Mid Section Depth (mm) 114
- Internal Volume (L) 1.1
- Empty Leg Section Weight (kg) 6.9
- Empty Mid Section Weight (kg) 5.9
- Factor, Km 0.5163
- Exponent, n 1.2511
- Heating medium Hydronic, One-pipe steam, Two-pipe steam
Rococo I 660mm - Single Section Technical Drawing - SVG

Sizes Available

83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
83753
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CI-RC1-660-3 3 258 207 109 1 £363.60
CI-RC1-660-4 4 334 276 145 1 £430.80
CI-RC1-660-5 5 410 345 182 1 £498.00
CI-RC1-660-6 6 486 414 218 1 £565.20
CI-RC1-660-7 7 562 483 254 1 £632.40
CI-RC1-660-8 8 638 552 291 1 £699.60
CI-RC1-660-9 9 714 621 327 1 £766.80
CI-RC1-660-10 10 790 690 364 1 £834.00
CI-RC1-660-11 11 866 759 400 1 £901.20
CI-RC1-660-12 12 942 828 436 1 £968.40
CI-RC1-660-13 13 1018 897 473 1 £1,035.60
CI-RC1-660-14 14 1094 966 509 1 £1,102.80
CI-RC1-660-15 15 1170 1035 546 2 £1,254.00
CI-RC1-660-16 16 1246 1104 582 2 £1,321.20
CI-RC1-660-17 17 1322 1173 618 2 £1,388.40
CI-RC1-660-18 18 1398 1242 655 2 £1,455.60
CI-RC1-660-19 19 1474 1311 691 2 £1,522.80
CI-RC1-660-20 20 1550 1380 728 2 £1,590.00
CI-RC1-660-21 21 1626 1449 764 2 £1,657.20
CI-RC1-660-22 22 1702 1518 800 3 £1,724.40
CI-RC1-660-23 23 1778 1587 837 3 £1,791.60
CI-RC1-660-24 24 1854 1656 873 3 £1,858.80
CI-RC1-660-25 25 1930 1725 910 3 £1,926.00
CI-RC1-660-26 26 2006 1794 946 3 £1,993.20
CI-RC1-660-27 27 2082 1863 982 3 £2,060.40
CI-RC1-660-28 28 2158 1932 1019 3 £2,127.60
CI-RC1-660-29 29 2234 2001 1055 3 £2,194.80
CI-RC1-660-30 30 2310 2070 1092 3 £2,262.00
CI-RC1-660-31 31 2386 2139 1128 3 £2,329.20
CI-RC1-660-32 32 2462 2208 1164 3 £2,396.40
CI-RC1-660-33 33 2538 2277 1201 3 £2,463.60
CI-RC1-660-34 34 2614 2346 1237 4 £2,530.80
CI-RC1-660-35 35 2690 2415 1274 4 £2,598.00
CI-RC1-660-36 36 2766 2484 1310 4 £2,665.20
CI-RC1-660-37 37 2842 2553 1346 4 £2,732.40
CI-RC1-660-38 38 2918 2622 1383 4 £2,799.60
CI-RC1-660-39 39 2994 2691 1419 4 £2,866.80
CI-RC1-660-40 40 3070 2760 1456 4 £2,934.00
Rococo I 660mm - 10 Section Battery Technical Drawing - SVG
