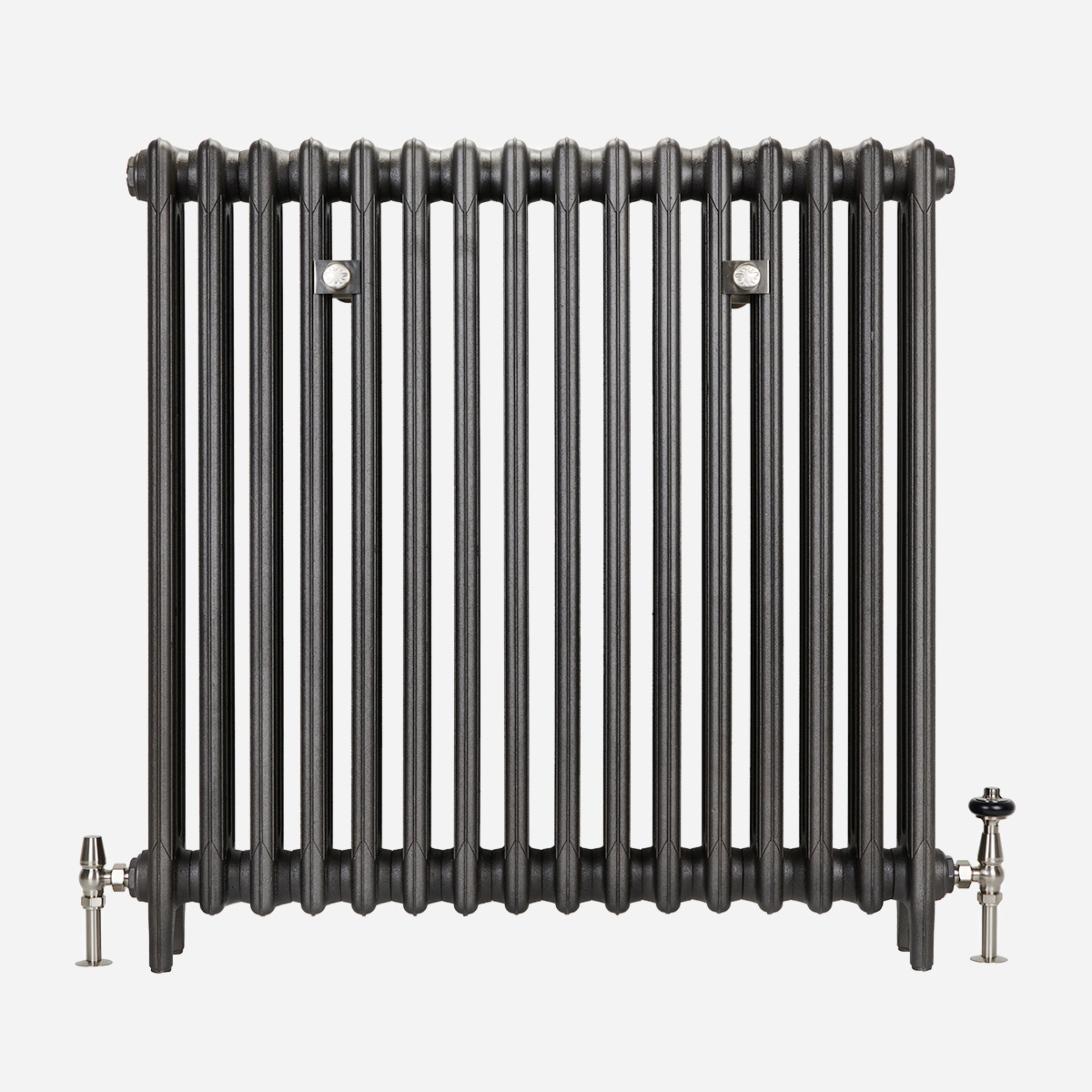

• Mercury 4 column 960mm Castrads radiator in Matt Black finish
  • Mercury 4 Column 960mm - angled view
  • Mercury 4Col 960mm - valve side view

Mercury 4 Column 960mm

From: £406.80

Technical specs at 3 sections long:

Length
Heat output (∆T50)
Height
Pipe centres
Depth
Delivered in
SKU: CI-M4C-960

Model Specifications

Label Attribute Value
A Height With Legs (mm) 960
B Bottom Inlet To Floor (mm) 100
C Max Section Depth (mm) 140
- Output (ΔT50, W) 122.3
- Output (ΔT30, W) 62.4
D Interaxis Distance (mm) 823
E Height Without Legs (mm) 898
F Section Length (mm) 58.3
G Mid Section Depth (mm) 140
- Internal Volume (L) 1.1
- Empty Leg Section Weight (kg) 8.7
- Empty Mid Section Weight (kg) 8
- Factor, Km 0.7115
- Exponent, n 1.3156
- Heating medium Hydronic, One-pipe steam, Two-pipe steam
Mercury 4 Column 960mm - Single Section Technical Drawing - SVG

Sizes Available

83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
83747
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CI-M4C-960-3 3 204 366 187 1 £406.80
CI-M4C-960-4 4 263 489 249 1 £488.40
CI-M4C-960-5 5 321 611 312 1 £570.00
CI-M4C-960-6 6 379 733 374 1 £651.60
CI-M4C-960-7 7 438 856 436 1 £733.20
CI-M4C-960-8 8 496 978 499 1 £814.80
CI-M4C-960-9 9 554 1100 561 1 £896.40
CI-M4C-960-10 10 613 1223 624 1 £978.00
CI-M4C-960-11 11 671 1345 686 1 £1,059.60
CI-M4C-960-12 12 729 1467 748 1 £1,141.20
CI-M4C-960-13 13 787 1589 811 1 £1,222.80
CI-M4C-960-14 14 846 1712 873 2 £1,388.40
CI-M4C-960-15 15 904 1834 936 2 £1,470.00
CI-M4C-960-16 16 962 1956 998 2 £1,551.60
CI-M4C-960-17 17 1021 2079 1060 2 £1,633.20
CI-M4C-960-18 18 1079 2201 1123 2 £1,714.80
CI-M4C-960-19 19 1137 2323 1185 2 £1,796.40
CI-M4C-960-20 20 1196 2446 1248 2 £1,878.00
CI-M4C-960-21 21 1254 2568 1310 2 £1,959.60
CI-M4C-960-22 22 1312 2690 1372 3 £2,041.20
CI-M4C-960-23 23 1370 2812 1435 3 £2,122.80
CI-M4C-960-24 24 1429 2935 1497 3 £2,204.40
CI-M4C-960-25 25 1487 3057 1560 3 £2,286.00
CI-M4C-960-26 26 1545 3179 1622 3 £2,367.60
CI-M4C-960-27 27 1604 3302 1684 3 £2,449.20
CI-M4C-960-28 28 1662 3424 1747 3 £2,530.80
CI-M4C-960-29 29 1720 3546 1809 3 £2,612.40
CI-M4C-960-30 30 1779 3669 1872 3 £2,694.00
CI-M4C-960-31 31 1837 3791 1934 3 £2,775.60
CI-M4C-960-32 32 1895 3913 1996 3 £2,857.20
CI-M4C-960-33 33 1953 4035 2059 3 £2,938.80
CI-M4C-960-34 34 2012 4158 2121 3 £3,020.40
CI-M4C-960-35 35 2070 4280 2184 3 £3,102.00
CI-M4C-960-36 36 2128 4402 2246 3 £3,183.60
CI-M4C-960-37 37 2187 4525 2308 3 £3,265.20
CI-M4C-960-38 38 2245 4647 2371 4 £3,346.80
CI-M4C-960-39 39 2303 4769 2433 3 £3,428.40
CI-M4C-960-40 40 2362 4892 2496 4 £3,510.00
Mercury 4 Column 960mm - 10 Section Battery Technical Drawing - SVG
