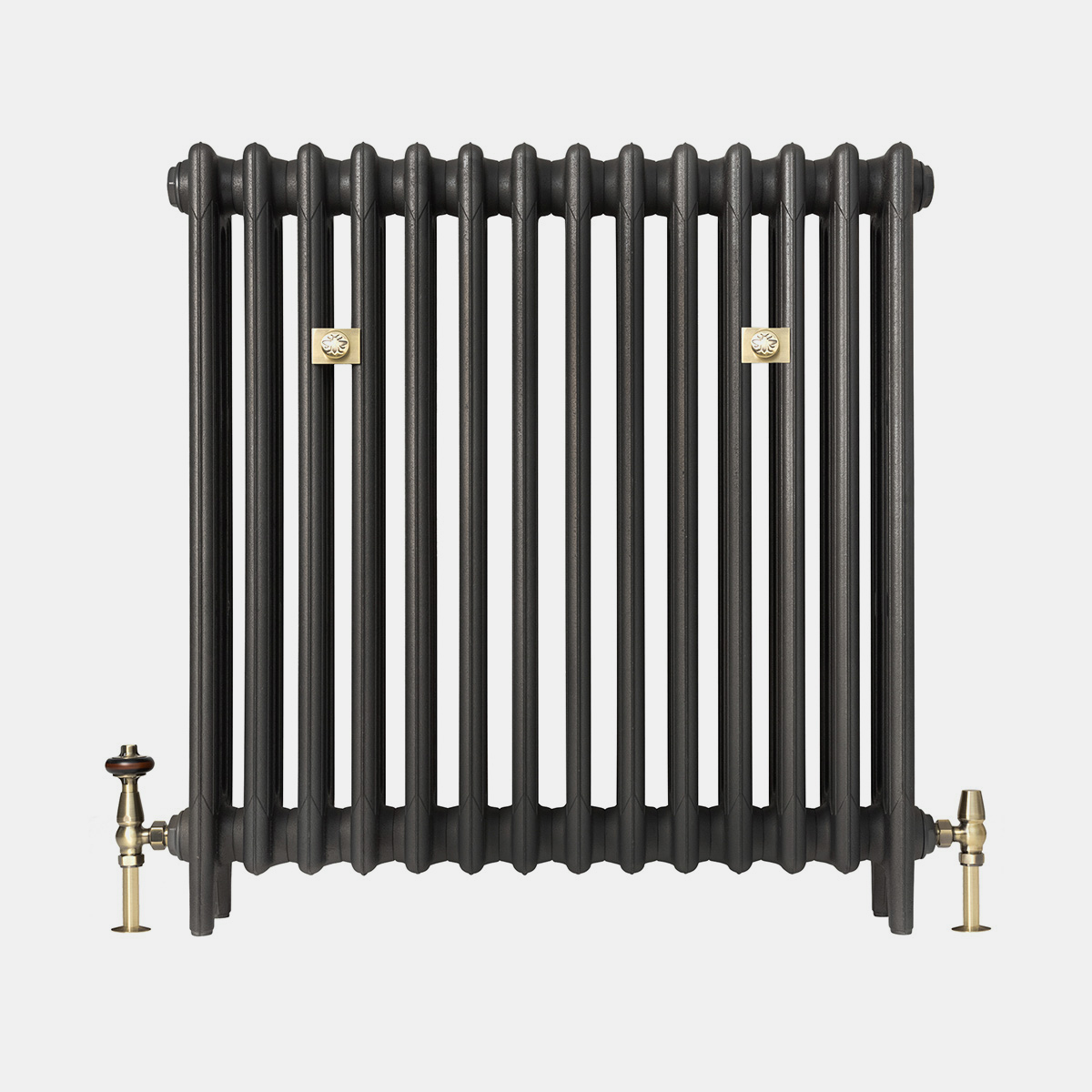

• Mercury 4 column 860mm Castrads radiator in Matt Black finish

Mercury 4 Column 860mm

From: £352.80

Technical specs at 3 sections long:

Length
Heat output (∆T50)
Height
Pipe centres
Depth
Delivered in
SKU: CI-M4C-860

Model Specifications

Label Attribute Value
A Height With Legs (mm) 860
B Bottom Inlet To Floor (mm) 100
C Max Section Depth (mm) 140
- Output (ΔT50, W) 109
- Output (ΔT30, W) 57.3
D Interaxis Distance (mm) 723
E Height Without Legs (mm) 798
F Section Length (mm) 58.3
G Mid Section Depth (mm) 140
- Internal Volume (L) 1
- Empty Leg Section Weight (kg) 7.7
- Empty Mid Section Weight (kg) 6.9
- Factor, Km 0.7808
- Exponent, n 1.2626
- Heating medium Hydronic, One-pipe steam, Two-pipe steam
Mercury 4 Column 860mm - Single Section Technical Drawing - SVG

Sizes Available

83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
83746
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CI-M4C-860-3 3 204 327 171 1 £352.80
CI-M4C-860-4 4 263 436 229 1 £416.40
CI-M4C-860-5 5 321 545 286 1 £480.00
CI-M4C-860-6 6 379 654 343 1 £543.60
CI-M4C-860-7 7 438 763 401 1 £607.20
CI-M4C-860-8 8 496 872 458 1 £670.80
CI-M4C-860-9 9 554 981 515 1 £734.40
CI-M4C-860-10 10 613 1090 573 1 £798.00
CI-M4C-860-11 11 671 1199 630 1 £861.60
CI-M4C-860-12 12 729 1308 687 1 £925.20
CI-M4C-860-13 13 787 1417 744 1 £988.80
CI-M4C-860-14 14 846 1526 802 1 £1,052.40
CI-M4C-860-15 15 904 1635 859 1 £1,116.00
CI-M4C-860-16 16 962 1744 916 2 £1,263.60
CI-M4C-860-17 17 1021 1853 974 2 £1,327.20
CI-M4C-860-18 18 1079 1962 1031 2 £1,390.80
CI-M4C-860-19 19 1137 2071 1088 2 £1,454.40
CI-M4C-860-20 20 1196 2180 1146 2 £1,518.00
CI-M4C-860-21 21 1254 2289 1203 2 £1,581.60
CI-M4C-860-22 22 1312 2398 1260 3 £1,645.20
CI-M4C-860-23 23 1370 2507 1317 3 £1,708.80
CI-M4C-860-24 24 1429 2616 1375 3 £1,772.40
CI-M4C-860-25 25 1487 2725 1432 3 £1,836.00
CI-M4C-860-26 26 1545 2834 1489 3 £1,899.60
CI-M4C-860-27 27 1604 2943 1547 3 £1,963.20
CI-M4C-860-28 28 1662 3052 1604 3 £2,026.80
CI-M4C-860-29 29 1720 3161 1661 3 £2,090.40
CI-M4C-860-30 30 1779 3270 1719 3 £2,154.00
CI-M4C-860-31 31 1837 3379 1776 3 £2,217.60
CI-M4C-860-32 32 1895 3488 1833 3 £2,281.20
CI-M4C-860-33 33 1953 3597 1890 3 £2,344.80
CI-M4C-860-34 34 2012 3706 1948 3 £2,408.40
CI-M4C-860-35 35 2070 3815 2005 3 £2,472.00
CI-M4C-860-36 36 2128 3924 2062 3 £2,535.60
CI-M4C-860-37 37 2187 4033 2120 3 £2,599.20
CI-M4C-860-38 38 2245 4142 2177 3 £2,662.80
CI-M4C-860-39 39 2303 4251 2234 3 £2,726.40
CI-M4C-860-40 40 2362 4360 2292 3 £2,790.00
Mercury 4 Column 860mm - 10 Section Battery Technical Drawing - SVG
