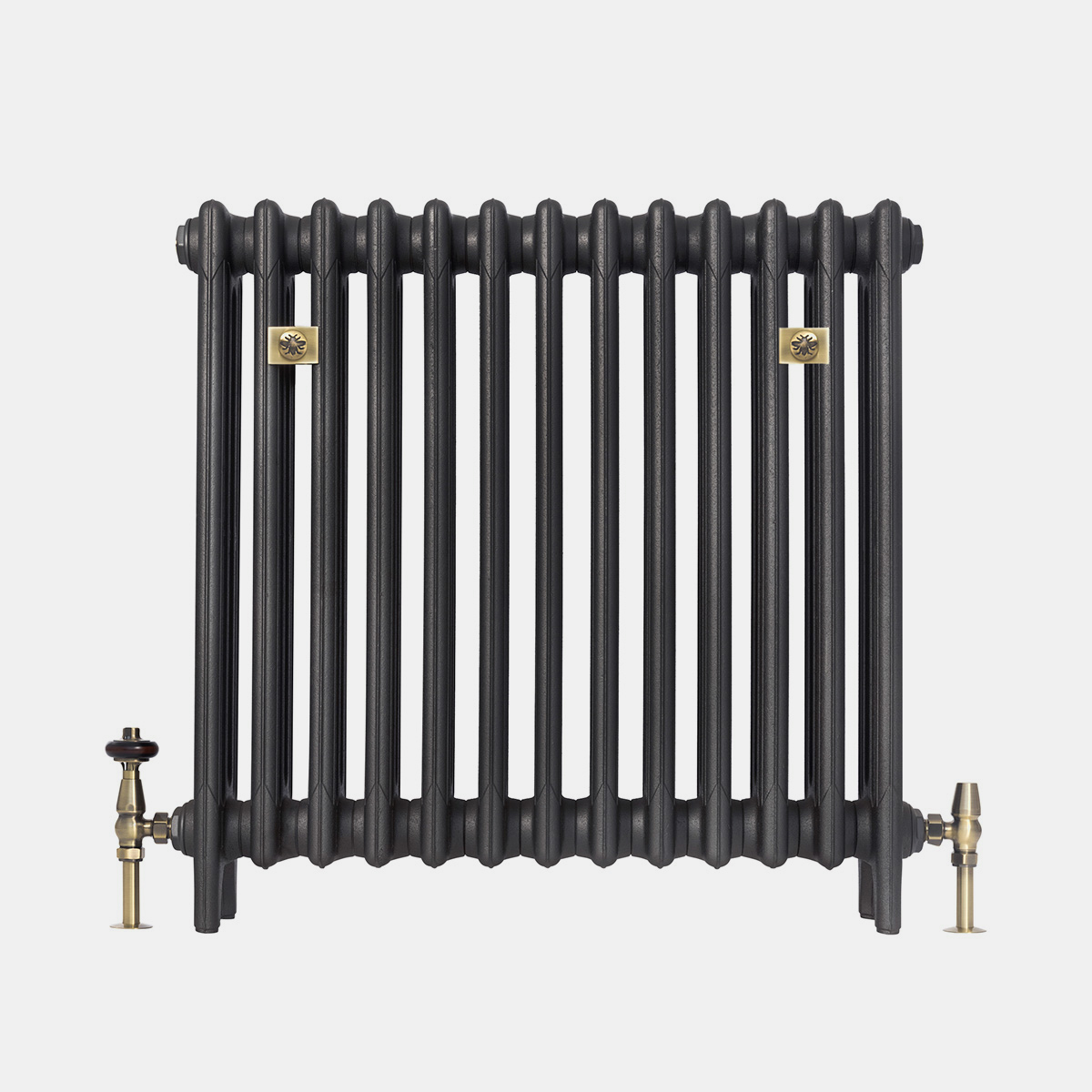

Mercury 4 Column 760mm
From: £342.00
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 18 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 5-6 weeks lead time
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 760 |
| B | Bottom Inlet To Floor (mm) | 100 |
| C | Max Section Depth (mm) | 140 |
| - | Output (ΔT50, W) | 95.6 |
| - | Output (ΔT30, W) | 50.6 |
| D | Interaxis Distance (mm) | 623 |
| E | Height Without Legs (mm) | 698 |
| F | Section Length (mm) | 58.3 |
| G | Mid Section Depth (mm) | 140 |
| - | Internal Volume (L) | 0.9 |
| - | Empty Leg Section Weight (kg) | 6.7 |
| - | Empty Mid Section Weight (kg) | 6 |
| - | Factor, Km | 0.7326 |
| - | Exponent, n | 1.2454 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| CI-M4C-760-3 | 3 | 204 | 286 | 151 | 1 | £342.00 |
| CI-M4C-760-4 | 4 | 263 | 382 | 202 | 1 | £402.00 |
| CI-M4C-760-5 | 5 | 321 | 478 | 253 | 1 | £462.00 |
| CI-M4C-760-6 | 6 | 379 | 573 | 303 | 1 | £522.00 |
| CI-M4C-760-7 | 7 | 438 | 669 | 354 | 1 | £582.00 |
| CI-M4C-760-8 | 8 | 496 | 764 | 404 | 1 | £642.00 |
| CI-M4C-760-9 | 9 | 554 | 860 | 455 | 1 | £702.00 |
| CI-M4C-760-10 | 10 | 613 | 956 | 506 | 1 | £762.00 |
| CI-M4C-760-11 | 11 | 671 | 1051 | 556 | 1 | £822.00 |
| CI-M4C-760-12 | 12 | 729 | 1147 | 607 | 1 | £882.00 |
| CI-M4C-760-13 | 13 | 787 | 1242 | 657 | 1 | £942.00 |
| CI-M4C-760-14 | 14 | 846 | 1338 | 708 | 1 | £1,002.00 |
| CI-M4C-760-15 | 15 | 904 | 1434 | 759 | 1 | £1,062.00 |
| CI-M4C-760-16 | 16 | 962 | 1529 | 809 | 1 | £1,122.00 |
| CI-M4C-760-17 | 17 | 1021 | 1625 | 860 | 1 | £1,182.00 |
| CI-M4C-760-18 | 18 | 1079 | 1720 | 910 | 1 | £1,242.00 |
| CI-M4C-760-19 | 19 | 1137 | 1816 | 961 | 2 | £1,386.00 |
| CI-M4C-760-20 | 20 | 1196 | 1912 | 1012 | 2 | £1,446.00 |
| CI-M4C-760-21 | 21 | 1254 | 2007 | 1062 | 2 | £1,506.00 |
| CI-M4C-760-22 | 22 | 1312 | 2103 | 1113 | 2 | £1,566.00 |
| CI-M4C-760-23 | 23 | 1370 | 2198 | 1163 | 2 | £1,626.00 |
| CI-M4C-760-24 | 24 | 1429 | 2294 | 1214 | 3 | £1,686.00 |
| CI-M4C-760-25 | 25 | 1487 | 2390 | 1265 | 3 | £1,746.00 |
| CI-M4C-760-26 | 26 | 1545 | 2485 | 1315 | 3 | £1,806.00 |
| CI-M4C-760-27 | 27 | 1604 | 2581 | 1366 | 3 | £1,866.00 |
| CI-M4C-760-28 | 28 | 1662 | 2676 | 1416 | 3 | £1,926.00 |
| CI-M4C-760-29 | 29 | 1720 | 2772 | 1467 | 3 | £1,986.00 |
| CI-M4C-760-30 | 30 | 1779 | 2868 | 1518 | 3 | £2,046.00 |
| CI-M4C-760-31 | 31 | 1837 | 2963 | 1568 | 3 | £2,106.00 |
| CI-M4C-760-32 | 32 | 1895 | 3059 | 1619 | 3 | £2,166.00 |
| CI-M4C-760-33 | 33 | 1953 | 3154 | 1669 | 3 | £2,226.00 |
| CI-M4C-760-34 | 34 | 2012 | 3250 | 1720 | 3 | £2,286.00 |
| CI-M4C-760-35 | 35 | 2070 | 3346 | 1771 | 3 | £2,346.00 |
| CI-M4C-760-36 | 36 | 2128 | 3441 | 1821 | 3 | £2,406.00 |
| CI-M4C-760-37 | 37 | 2187 | 3537 | 1872 | 3 | £2,466.00 |
| CI-M4C-760-38 | 38 | 2245 | 3632 | 1922 | 3 | £2,526.00 |
| CI-M4C-760-39 | 39 | 2303 | 3728 | 1973 | 3 | £2,586.00 |
| CI-M4C-760-40 | 40 | 2362 | 3824 | 2024 | 3 | £2,646.00 |
