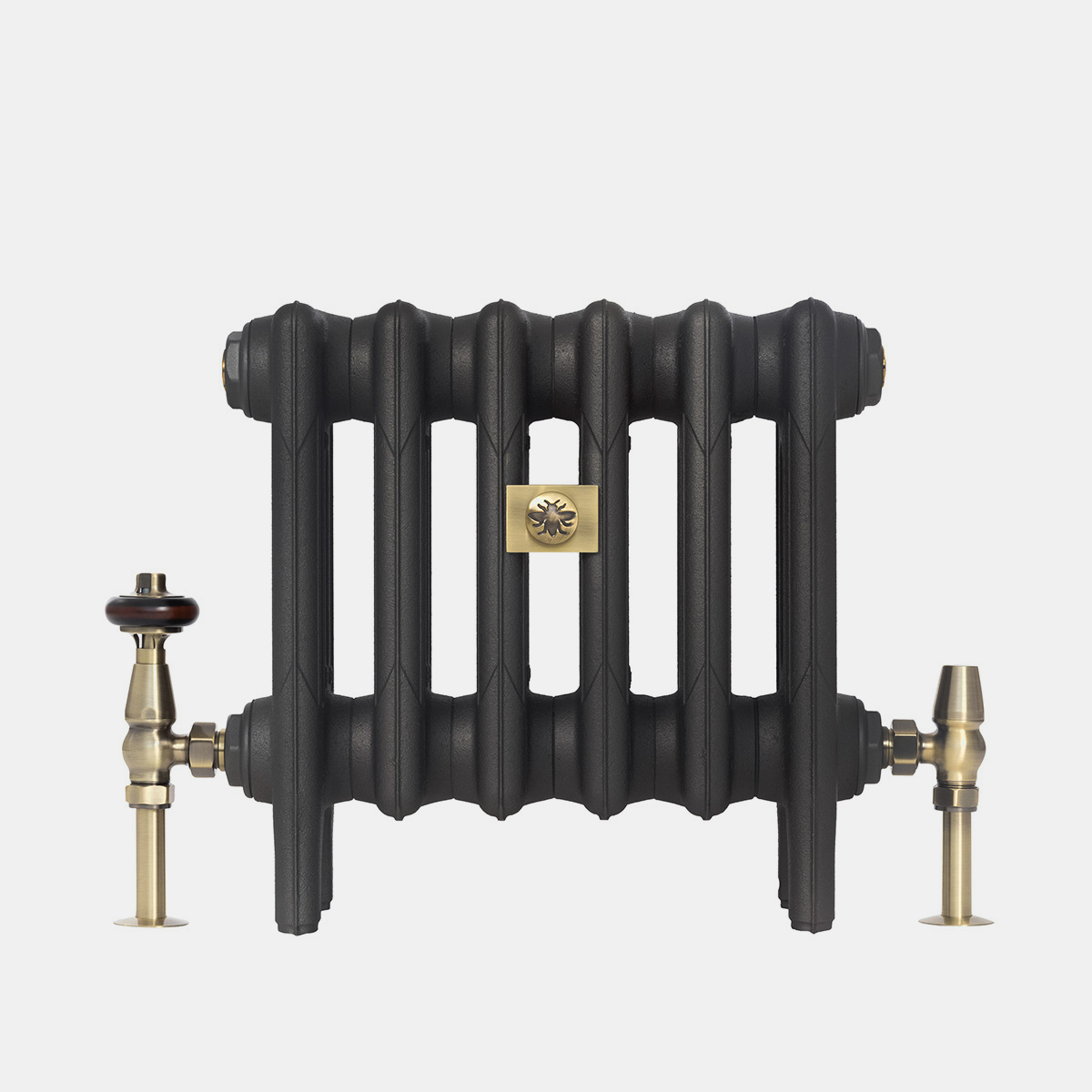

Mercury 4 Column 360mm
From: £295.20
Available on backorder
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 18 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 5-6 weeks lead time
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 360 |
| B | Bottom Inlet To Floor (mm) | 100 |
| C | Max Section Depth (mm) | 140 |
| - | Output (ΔT50, W) | 44 |
| - | Output (ΔT30, W) | 23.5 |
| D | Interaxis Distance (mm) | 223 |
| E | Height Without Legs (mm) | 298 |
| F | Section Length (mm) | 58.3 |
| G | Mid Section Depth (mm) | 140 |
| - | Internal Volume (L) | 0.55 |
| - | Empty Leg Section Weight (kg) | 3.7 |
| - | Empty Mid Section Weight (kg) | 2.9 |
| - | Factor, Km | 0.3689 |
| - | Exponent, n | 1.222 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| CI-M4C-360-3 | 3 | 204 | 132 | 70 | 1 | £295.20 |
| CI-M4C-360-4 | 4 | 263 | 176 | 94 | 1 | £339.60 |
| CI-M4C-360-5 | 5 | 321 | 220 | 117 | 1 | £384.00 |
| CI-M4C-360-6 | 6 | 379 | 264 | 141 | 1 | £428.40 |
| CI-M4C-360-7 | 7 | 438 | 308 | 164 | 1 | £472.80 |
| CI-M4C-360-8 | 8 | 496 | 352 | 188 | 1 | £517.20 |
| CI-M4C-360-9 | 9 | 554 | 396 | 211 | 1 | £561.60 |
| CI-M4C-360-10 | 10 | 613 | 440 | 235 | 1 | £606.00 |
| CI-M4C-360-11 | 11 | 671 | 484 | 258 | 1 | £650.40 |
| CI-M4C-360-12 | 12 | 729 | 528 | 282 | 1 | £694.80 |
| CI-M4C-360-13 | 13 | 787 | 572 | 305 | 1 | £739.20 |
| CI-M4C-360-14 | 14 | 846 | 616 | 329 | 1 | £783.60 |
| CI-M4C-360-15 | 15 | 904 | 660 | 352 | 1 | £828.00 |
| CI-M4C-360-16 | 16 | 962 | 704 | 376 | 1 | £872.40 |
| CI-M4C-360-17 | 17 | 1021 | 748 | 399 | 1 | £916.80 |
| CI-M4C-360-18 | 18 | 1079 | 792 | 423 | 1 | £961.20 |
| CI-M4C-360-19 | 19 | 1137 | 836 | 446 | 2 | £1,089.60 |
| CI-M4C-360-20 | 20 | 1196 | 880 | 470 | 2 | £1,134.00 |
| CI-M4C-360-21 | 21 | 1254 | 924 | 493 | 2 | £1,178.40 |
| CI-M4C-360-22 | 22 | 1312 | 968 | 517 | 2 | £1,222.80 |
| CI-M4C-360-23 | 23 | 1370 | 1012 | 540 | 2 | £1,267.20 |
| CI-M4C-360-24 | 24 | 1429 | 1056 | 564 | 2 | £1,311.60 |
| CI-M4C-360-25 | 25 | 1487 | 1100 | 587 | 2 | £1,356.00 |
| CI-M4C-360-26 | 26 | 1545 | 1144 | 611 | 2 | £1,400.40 |
| CI-M4C-360-27 | 27 | 1604 | 1188 | 634 | 2 | £1,444.80 |
| CI-M4C-360-28 | 28 | 1662 | 1232 | 658 | 2 | £1,489.20 |
| CI-M4C-360-29 | 29 | 1720 | 1276 | 681 | 2 | £1,533.60 |
| CI-M4C-360-30 | 30 | 1779 | 1320 | 705 | 2 | £1,578.00 |
| CI-M4C-360-31 | 31 | 1837 | 1364 | 728 | 2 | £1,622.40 |
| CI-M4C-360-32 | 32 | 1895 | 1408 | 752 | 2 | £1,666.80 |
| CI-M4C-360-33 | 33 | 1953 | 1452 | 775 | 3 | £1,711.20 |
| CI-M4C-360-34 | 34 | 2012 | 1496 | 799 | 3 | £1,755.60 |
| CI-M4C-360-35 | 35 | 2070 | 1540 | 822 | 3 | £1,800.00 |
| CI-M4C-360-36 | 36 | 2128 | 1584 | 846 | 3 | £1,844.40 |
| CI-M4C-360-37 | 37 | 2187 | 1628 | 869 | 3 | £1,888.80 |
| CI-M4C-360-38 | 38 | 2245 | 1672 | 893 | 3 | £1,933.20 |
| CI-M4C-360-39 | 39 | 2303 | 1716 | 916 | 3 | £1,977.60 |
| CI-M4C-360-40 | 40 | 2362 | 1760 | 940 | 3 | £2,022.00 |
