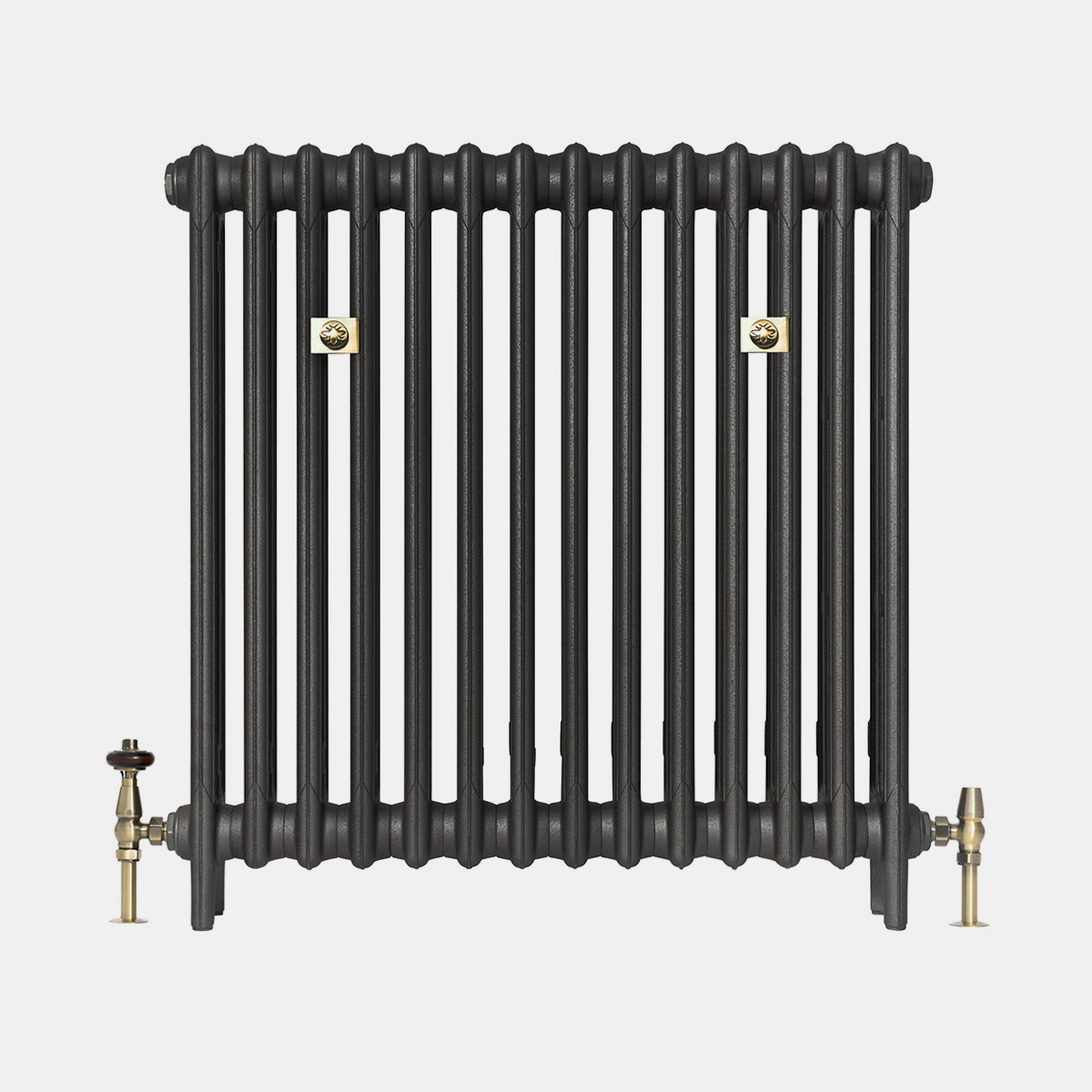

• Mercury 3 column 860mm slimline Castrads radiator

Mercury 3 Column 860mm

From: £324.00

Technical specs at 3 sections long:

Length
Heat output (∆T50)
Height
Pipe centres
Depth
Delivered in
SKU: CI-M3C-860

Model Specifications

Label Attribute Value
A Height With Legs (mm) 860
B Bottom Inlet To Floor (mm) 100
C Max Section Depth (mm) 101
- Output (ΔT50, W) 87.4
- Output (ΔT30, W) 44.9
D Interaxis Distance (mm) 723
E Height Without Legs (mm) 798
F Section Length (mm) 58.3
G Mid Section Depth (mm) 101
- Internal Volume (L) 0.73
- Empty Leg Section Weight (kg) 5.8
- Empty Mid Section Weight (kg) 5.2
- Factor, Km 0.536
- Exponent, n 1.302
- Heating medium Hydronic, One-pipe steam, Two-pipe steam
Mercury 3 Column 860mm - Single Section Technical Drawing - SVG

Sizes Available

83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
83741
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CI-M3C-860-3 3 204 262 134 1 £324.00
CI-M3C-860-4 4 263 349 179 1 £378.00
CI-M3C-860-5 5 321 437 224 1 £432.00
CI-M3C-860-6 6 379 524 269 1 £486.00
CI-M3C-860-7 7 438 611 314 1 £540.00
CI-M3C-860-8 8 496 699 359 1 £594.00
CI-M3C-860-9 9 554 786 404 1 £648.00
CI-M3C-860-10 10 613 874 449 1 £702.00
CI-M3C-860-11 11 671 961 493 1 £756.00
CI-M3C-860-12 12 729 1048 538 1 £810.00
CI-M3C-860-13 13 787 1136 583 1 £864.00
CI-M3C-860-14 14 846 1223 628 1 £918.00
CI-M3C-860-15 15 904 1311 673 1 £972.00
CI-M3C-860-16 16 962 1398 718 1 £1,026.00
CI-M3C-860-17 17 1021 1485 763 1 £1,080.00
CI-M3C-860-18 18 1079 1573 808 1 £1,134.00
CI-M3C-860-19 19 1137 1660 853 2 £1,272.00
CI-M3C-860-20 20 1196 1748 898 2 £1,326.00
CI-M3C-860-21 21 1254 1835 942 2 £1,380.00
CI-M3C-860-22 22 1312 1922 987 2 £1,434.00
CI-M3C-860-23 23 1370 2010 1032 2 £1,488.00
CI-M3C-860-24 24 1429 2097 1077 2 £1,542.00
CI-M3C-860-25 25 1487 2185 1122 2 £1,596.00
CI-M3C-860-26 26 1545 2272 1167 2 £1,650.00
CI-M3C-860-27 27 1604 2359 1212 2 £1,704.00
CI-M3C-860-28 28 1662 2447 1257 3 £1,758.00
CI-M3C-860-29 29 1720 2534 1302 3 £1,812.00
CI-M3C-860-30 30 1779 2622 1347 3 £1,866.00
CI-M3C-860-31 31 1837 2709 1391 3 £1,920.00
CI-M3C-860-32 32 1895 2796 1436 3 £1,974.00
CI-M3C-860-33 33 1953 2884 1481 3 £2,028.00
CI-M3C-860-34 34 2012 2971 1526 3 £2,082.00
CI-M3C-860-35 35 2070 3059 1571 3 £2,136.00
CI-M3C-860-36 36 2128 3146 1616 3 £2,190.00
CI-M3C-860-37 37 2187 3233 1661 3 £2,244.00
CI-M3C-860-38 38 2245 3321 1706 3 £2,298.00
CI-M3C-860-39 39 2303 3408 1751 3 £2,352.00
CI-M3C-860-40 40 2362 3496 1796 3 £2,406.00
Mercury 3 Column 860mm - 10 Section Battery Technical Drawing - SVG
