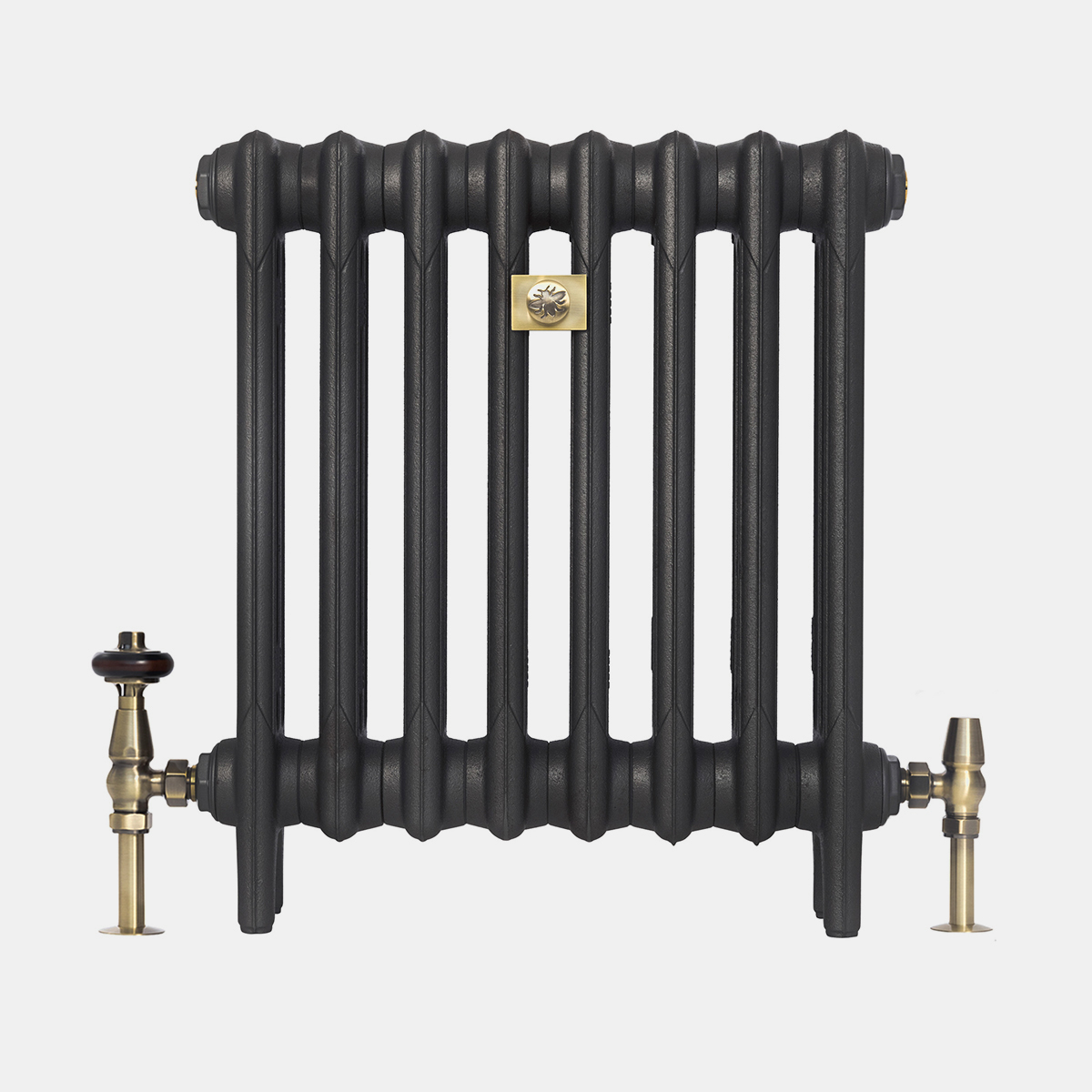

• Mercury 3 column 560mm slimline Castrads bay window radiator in matt black finish

Mercury 3 Column 560mm

From: £277.20

Technical specs at 3 sections long:

Length
Heat output (∆T50)
Height
Pipe centres
Depth
Delivered in

Model Specifications

Label Attribute Value
A Height With Legs (mm) 560
B Bottom Inlet To Floor (mm) 100
C Max Section Depth (mm) 101
- Output (ΔT50, W) 53.8
- Output (ΔT30, W) 28.5
D Interaxis Distance (mm) 423
E Height Without Legs (mm) 498
F Section Length (mm) 58.3
G Mid Section Depth (mm) 101
- Internal Volume (L) 0.4
- Empty Leg Section Weight (kg) 4.4
- Empty Mid Section Weight (kg) 3.7
- Factor, Km 0.4122
- Exponent, n 1.2451
- Heating medium Hydronic, One-pipe steam, Two-pipe steam
Mercury 3 Column 560mm - Single Section Technical Drawing - SVG

Sizes Available

83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
83738
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CI-M3C-560-3 3 204 161 85 1 £277.20
CI-M3C-560-4 4 263 215 114 1 £315.60
CI-M3C-560-5 5 321 269 142 1 £354.00
CI-M3C-560-6 6 379 322 171 1 £392.40
CI-M3C-560-7 7 438 376 199 1 £430.80
CI-M3C-560-8 8 496 430 228 1 £469.20
CI-M3C-560-9 9 554 484 256 1 £507.60
CI-M3C-560-10 10 613 538 285 1 £546.00
CI-M3C-560-11 11 671 591 313 1 £584.40
CI-M3C-560-12 12 729 645 342 1 £622.80
CI-M3C-560-13 13 787 699 370 1 £661.20
CI-M3C-560-14 14 846 753 399 1 £699.60
CI-M3C-560-15 15 904 807 427 1 £738.00
CI-M3C-560-16 16 962 860 456 1 £776.40
CI-M3C-560-17 17 1021 914 484 1 £814.80
CI-M3C-560-18 18 1079 968 513 1 £853.20
CI-M3C-560-19 19 1137 1022 541 2 £975.60
CI-M3C-560-20 20 1196 1076 570 2 £1,014.00
CI-M3C-560-21 21 1254 1129 598 2 £1,052.40
CI-M3C-560-22 22 1312 1183 627 2 £1,090.80
CI-M3C-560-23 23 1370 1237 655 2 £1,129.20
CI-M3C-560-24 24 1429 1291 684 2 £1,167.60
CI-M3C-560-25 25 1487 1345 712 2 £1,206.00
CI-M3C-560-26 26 1545 1398 741 2 £1,244.40
CI-M3C-560-27 27 1604 1452 769 2 £1,282.80
CI-M3C-560-28 28 1662 1506 798 3 £1,321.20
CI-M3C-560-29 29 1720 1560 826 3 £1,359.60
CI-M3C-560-30 30 1779 1614 855 3 £1,398.00
CI-M3C-560-31 31 1837 1667 883 3 £1,436.40
CI-M3C-560-32 32 1895 1721 912 3 £1,474.80
CI-M3C-560-33 33 1953 1775 940 3 £1,513.20
CI-M3C-560-34 34 2012 1829 969 3 £1,551.60
CI-M3C-560-35 35 2070 1883 997 3 £1,590.00
CI-M3C-560-36 36 2128 1936 1026 3 £1,628.40
CI-M3C-560-37 37 2187 1990 1054 3 £1,666.80
CI-M3C-560-38 38 2245 2044 1083 3 £1,705.20
CI-M3C-560-39 39 2303 2098 1111 3 £1,743.60
CI-M3C-560-40 40 2362 2152 1140 3 £1,782.00
Mercury 3 Column 560mm - 10 Section Battery Technical Drawing - SVG
