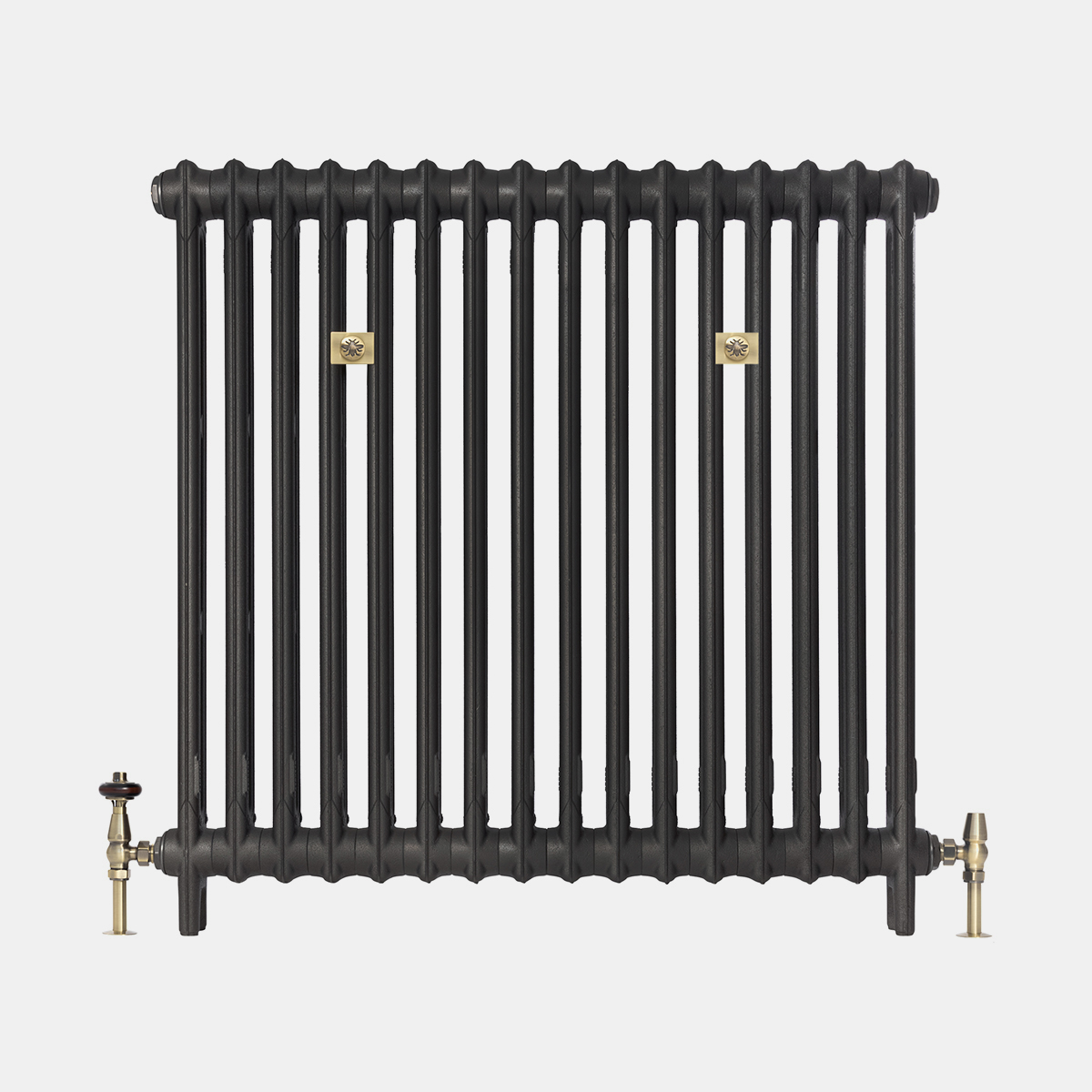

Mercury 2 Column 960mm
From: £277.20
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 18 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 5-6 weeks lead time
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 960 |
| B | Bottom Inlet To Floor (mm) | 100 |
| C | Max Section Depth (mm) | 70 |
| - | Output (ΔT50, W) | 73.6 |
| - | Output (ΔT30, W) | 37.9 |
| D | Interaxis Distance (mm) | 823 |
| E | Height Without Legs (mm) | 898 |
| F | Section Length (mm) | 58.3 |
| G | Mid Section Depth (mm) | 70 |
| - | Internal Volume (L) | 0.66 |
| - | Empty Leg Section Weight (kg) | 4.6 |
| - | Empty Mid Section Weight (kg) | 4.2 |
| - | Factor, Km | 0.457 |
| - | Exponent, n | 1.2991 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| CI-M2C-960-3 | 3 | 204 | 220 | 113 | 1 | £277.20 |
| CI-M2C-960-4 | 4 | 263 | 294 | 151 | 1 | £315.60 |
| CI-M2C-960-5 | 5 | 321 | 368 | 189 | 1 | £354.00 |
| CI-M2C-960-6 | 6 | 379 | 441 | 227 | 1 | £392.40 |
| CI-M2C-960-7 | 7 | 438 | 515 | 265 | 1 | £430.80 |
| CI-M2C-960-8 | 8 | 496 | 588 | 303 | 1 | £469.20 |
| CI-M2C-960-9 | 9 | 554 | 662 | 341 | 1 | £507.60 |
| CI-M2C-960-10 | 10 | 613 | 736 | 379 | 1 | £546.00 |
| CI-M2C-960-11 | 11 | 671 | 809 | 416 | 1 | £584.40 |
| CI-M2C-960-12 | 12 | 729 | 883 | 454 | 1 | £622.80 |
| CI-M2C-960-13 | 13 | 787 | 956 | 492 | 1 | £661.20 |
| CI-M2C-960-14 | 14 | 846 | 1030 | 530 | 1 | £699.60 |
| CI-M2C-960-15 | 15 | 904 | 1104 | 568 | 1 | £738.00 |
| CI-M2C-960-16 | 16 | 962 | 1177 | 606 | 1 | £776.40 |
| CI-M2C-960-17 | 17 | 1021 | 1251 | 644 | 1 | £814.80 |
| CI-M2C-960-18 | 18 | 1079 | 1324 | 682 | 1 | £853.20 |
| CI-M2C-960-19 | 19 | 1137 | 1398 | 720 | 2 | £975.60 |
| CI-M2C-960-20 | 20 | 1196 | 1472 | 758 | 2 | £1,014.00 |
| CI-M2C-960-21 | 21 | 1254 | 1545 | 795 | 2 | £1,052.40 |
| CI-M2C-960-22 | 22 | 1312 | 1619 | 833 | 2 | £1,090.80 |
| CI-M2C-960-23 | 23 | 1370 | 1692 | 871 | 2 | £1,129.20 |
| CI-M2C-960-24 | 24 | 1429 | 1766 | 909 | 2 | £1,167.60 |
| CI-M2C-960-25 | 25 | 1487 | 1839 | 947 | 2 | £1,206.00 |
| CI-M2C-960-26 | 26 | 1545 | 1913 | 985 | 2 | £1,244.40 |
| CI-M2C-960-27 | 27 | 1604 | 1987 | 1023 | 2 | £1,282.80 |
| CI-M2C-960-28 | 28 | 1662 | 2060 | 1061 | 3 | £1,321.20 |
| CI-M2C-960-29 | 29 | 1720 | 2134 | 1099 | 3 | £1,359.60 |
| CI-M2C-960-30 | 30 | 1779 | 2208 | 1137 | 3 | £1,398.00 |
| CI-M2C-960-31 | 31 | 1837 | 2281 | 1174 | 3 | £1,436.40 |
| CI-M2C-960-32 | 32 | 1895 | 2355 | 1212 | 3 | £1,474.80 |
| CI-M2C-960-33 | 33 | 1953 | 2428 | 1250 | 3 | £1,513.20 |
| CI-M2C-960-34 | 34 | 2012 | 2502 | 1288 | 3 | £1,551.60 |
| CI-M2C-960-35 | 35 | 2070 | 2576 | 1326 | 3 | £1,590.00 |
| CI-M2C-960-36 | 36 | 2128 | 2649 | 1364 | 3 | £1,628.40 |
| CI-M2C-960-37 | 37 | 2187 | 2723 | 1402 | 3 | £1,666.80 |
| CI-M2C-960-38 | 38 | 2245 | 2796 | 1440 | 3 | £1,705.20 |
| CI-M2C-960-39 | 39 | 2303 | 2870 | 1478 | 3 | £1,743.60 |
| CI-M2C-960-40 | 40 | 2362 | 2944 | 1516 | 3 | £1,782.00 |
