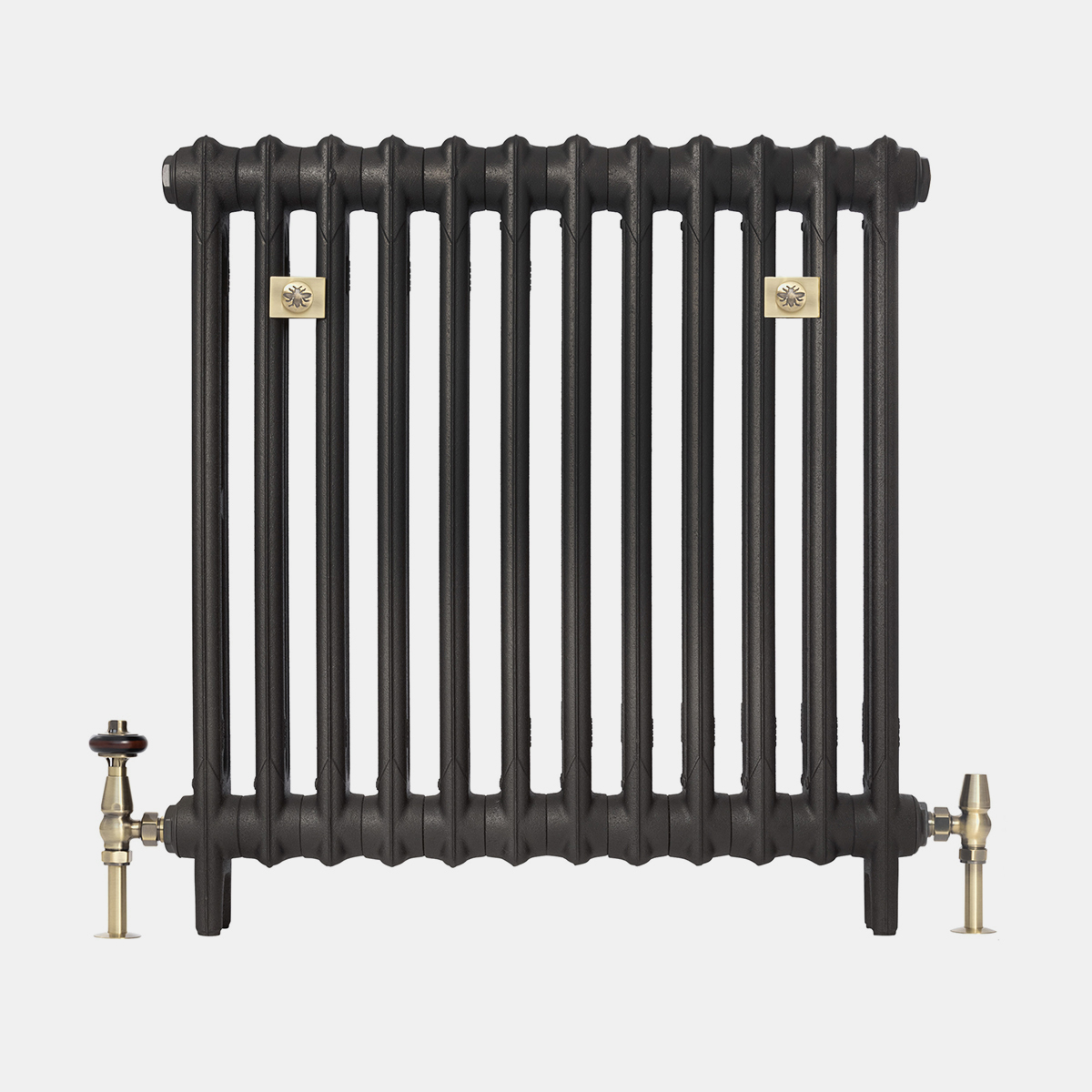

Mercury 2 Column 760mm
From: £270.00
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 18 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 5-6 weeks lead time
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 760 |
| B | Bottom Inlet To Floor (mm) | 100 |
| C | Max Section Depth (mm) | 70 |
| - | Output (ΔT50, W) | 58.6 |
| - | Output (ΔT30, W) | 30.7 |
| D | Interaxis Distance (mm) | 623 |
| E | Height Without Legs (mm) | 698 |
| F | Section Length (mm) | 58.3 |
| G | Mid Section Depth (mm) | 70 |
| - | Internal Volume (L) | 0.5 |
| - | Empty Leg Section Weight (kg) | 4.2 |
| - | Empty Mid Section Weight (kg) | 3.6 |
| - | Factor, Km | 0.4127 |
| - | Exponent, n | 1.2669 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| CI-M2C-760-3 | 3 | 204 | 175 | 92 | 1 | £270.00 |
| CI-M2C-760-4 | 4 | 263 | 234 | 122 | 1 | £306.00 |
| CI-M2C-760-5 | 5 | 321 | 293 | 153 | 1 | £342.00 |
| CI-M2C-760-6 | 6 | 379 | 351 | 184 | 1 | £378.00 |
| CI-M2C-760-7 | 7 | 438 | 410 | 214 | 1 | £414.00 |
| CI-M2C-760-8 | 8 | 496 | 468 | 245 | 1 | £450.00 |
| CI-M2C-760-9 | 9 | 554 | 527 | 276 | 1 | £486.00 |
| CI-M2C-760-10 | 10 | 613 | 586 | 307 | 1 | £522.00 |
| CI-M2C-760-11 | 11 | 671 | 644 | 337 | 1 | £558.00 |
| CI-M2C-760-12 | 12 | 729 | 703 | 368 | 1 | £594.00 |
| CI-M2C-760-13 | 13 | 787 | 761 | 399 | 1 | £630.00 |
| CI-M2C-760-14 | 14 | 846 | 820 | 429 | 1 | £666.00 |
| CI-M2C-760-15 | 15 | 904 | 879 | 460 | 1 | £702.00 |
| CI-M2C-760-16 | 16 | 962 | 937 | 491 | 1 | £738.00 |
| CI-M2C-760-17 | 17 | 1021 | 996 | 521 | 1 | £774.00 |
| CI-M2C-760-18 | 18 | 1079 | 1054 | 552 | 1 | £810.00 |
| CI-M2C-760-19 | 19 | 1137 | 1113 | 583 | 2 | £930.00 |
| CI-M2C-760-20 | 20 | 1196 | 1172 | 614 | 2 | £966.00 |
| CI-M2C-760-21 | 21 | 1254 | 1230 | 644 | 2 | £1,002.00 |
| CI-M2C-760-22 | 22 | 1312 | 1289 | 675 | 2 | £1,038.00 |
| CI-M2C-760-23 | 23 | 1370 | 1347 | 706 | 2 | £1,074.00 |
| CI-M2C-760-24 | 24 | 1429 | 1406 | 736 | 2 | £1,110.00 |
| CI-M2C-760-25 | 25 | 1487 | 1465 | 767 | 2 | £1,146.00 |
| CI-M2C-760-26 | 26 | 1545 | 1523 | 798 | 2 | £1,182.00 |
| CI-M2C-760-27 | 27 | 1604 | 1582 | 828 | 2 | £1,218.00 |
| CI-M2C-760-28 | 28 | 1662 | 1640 | 859 | 3 | £1,254.00 |
| CI-M2C-760-29 | 29 | 1720 | 1699 | 890 | 3 | £1,290.00 |
| CI-M2C-760-30 | 30 | 1779 | 1758 | 921 | 3 | £1,326.00 |
| CI-M2C-760-31 | 31 | 1837 | 1816 | 951 | 3 | £1,362.00 |
| CI-M2C-760-32 | 32 | 1895 | 1875 | 982 | 3 | £1,398.00 |
| CI-M2C-760-33 | 33 | 1953 | 1933 | 1013 | 3 | £1,434.00 |
| CI-M2C-760-34 | 34 | 2012 | 1992 | 1043 | 3 | £1,470.00 |
| CI-M2C-760-35 | 35 | 2070 | 2051 | 1074 | 3 | £1,506.00 |
| CI-M2C-760-36 | 36 | 2128 | 2109 | 1105 | 3 | £1,542.00 |
| CI-M2C-760-37 | 37 | 2187 | 2168 | 1135 | 3 | £1,578.00 |
| CI-M2C-760-38 | 38 | 2245 | 2226 | 1166 | 3 | £1,614.00 |
| CI-M2C-760-39 | 39 | 2303 | 2285 | 1197 | 3 | £1,650.00 |
| CI-M2C-760-40 | 40 | 2362 | 2344 | 1228 | 3 | £1,686.00 |
