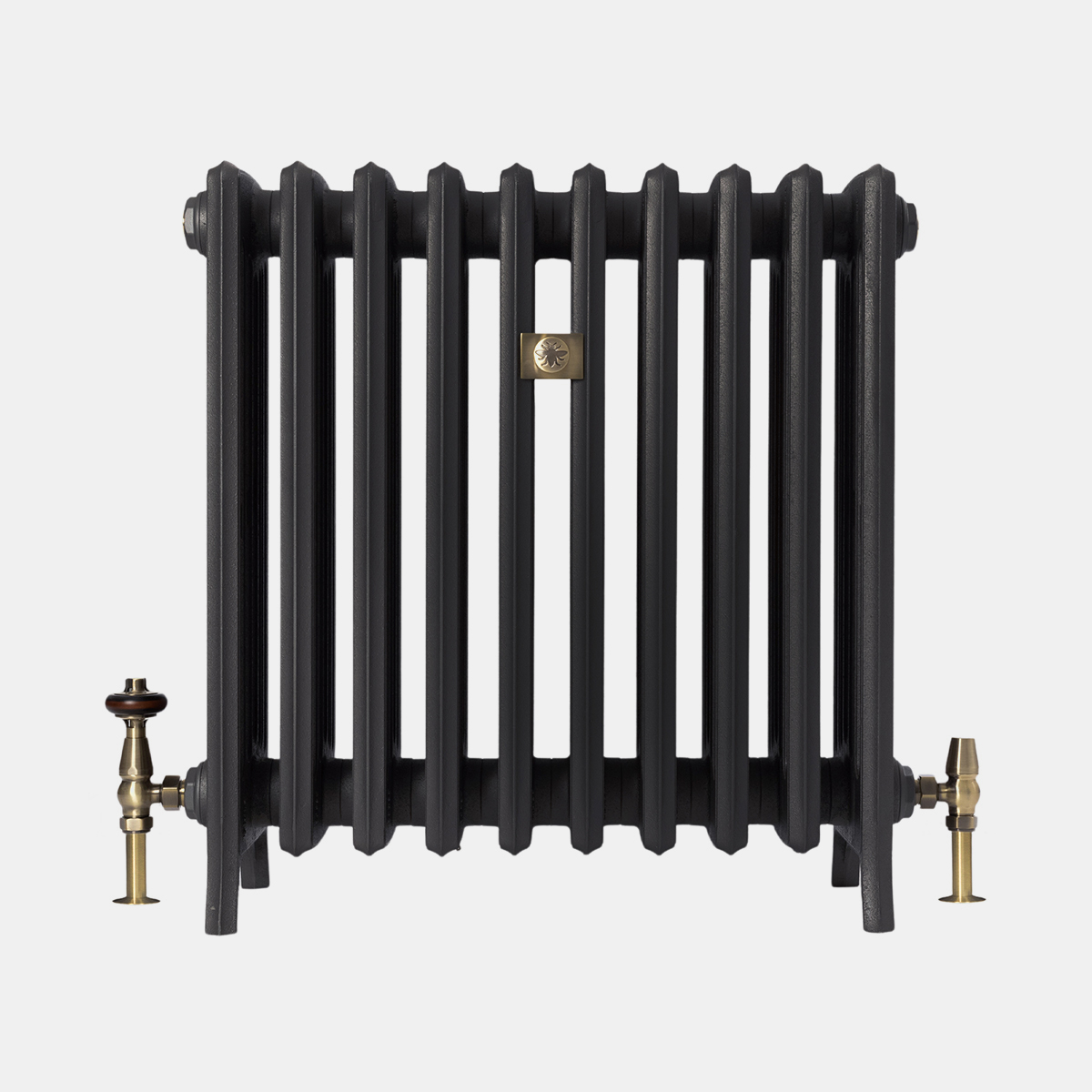

Grace 6 Column 660mm
From: £374.40
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 12 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 5-6 weeks lead time
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 650 |
| B | Bottom Inlet To Floor (mm) | 105 |
| C | Max Section Depth (mm) | 255 |
| - | Output (ΔT50, W) | 120.3 |
| - | Output (ΔT30, W) | 61.5 |
| D | Interaxis Distance (mm) | 500 |
| E | Height Without Legs (mm) | 600 |
| F | Section Length (mm) | 60.5 |
| G | Mid Section Depth (mm) | 221 |
| - | Internal Volume (L) | 1.3 |
| - | Empty Leg Section Weight (kg) | 8.9 |
| - | Empty Mid Section Weight (kg) | 8.5 |
| - | Factor, Km | 0.7042 |
| - | Exponent, n | 1.3141 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| CI-G6C-660-3 | 3 | 211 | 360 | 184 | 1 | £374.40 |
| CI-G6C-660-4 | 4 | 272 | 481 | 246 | 1 | £445.20 |
| CI-G6C-660-5 | 5 | 332 | 601 | 307 | 1 | £516.00 |
| CI-G6C-660-6 | 6 | 393 | 721 | 369 | 1 | £586.80 |
| CI-G6C-660-7 | 7 | 453 | 842 | 430 | 1 | £657.60 |
| CI-G6C-660-8 | 8 | 514 | 962 | 492 | 1 | £728.40 |
| CI-G6C-660-9 | 9 | 574 | 1082 | 553 | 1 | £799.20 |
| CI-G6C-660-10 | 10 | 635 | 1203 | 615 | 1 | £870.00 |
| CI-G6C-660-11 | 11 | 695 | 1323 | 676 | 1 | £940.80 |
| CI-G6C-660-12 | 12 | 756 | 1443 | 738 | 1 | £1,011.60 |
| CI-G6C-660-13 | 13 | 816 | 1563 | 799 | 2 | £1,166.40 |
| CI-G6C-660-14 | 14 | 877 | 1684 | 861 | 2 | £1,237.20 |
| CI-G6C-660-15 | 15 | 937 | 1804 | 922 | 2 | £1,308.00 |
| CI-G6C-660-16 | 16 | 998 | 1924 | 984 | 2 | £1,378.80 |
| CI-G6C-660-17 | 17 | 1058 | 2045 | 1045 | 2 | £1,449.60 |
| CI-G6C-660-18 | 18 | 1119 | 2165 | 1107 | 2 | £1,520.40 |
| CI-G6C-660-19 | 19 | 1179 | 2285 | 1168 | 2 | £1,591.20 |
| CI-G6C-660-20 | 20 | 1240 | 2406 | 1230 | 3 | £1,662.00 |
| CI-G6C-660-21 | 21 | 1300 | 2526 | 1291 | 2 | £1,732.80 |
| CI-G6C-660-22 | 22 | 1361 | 2646 | 1353 | 3 | £1,803.60 |
| CI-G6C-660-23 | 23 | 1421 | 2766 | 1414 | 3 | £1,874.40 |
| CI-G6C-660-24 | 24 | 1482 | 2887 | 1476 | 3 | £1,945.20 |
| CI-G6C-660-25 | 25 | 1542 | 3007 | 1537 | 3 | £2,016.00 |
| CI-G6C-660-26 | 26 | 1603 | 3127 | 1599 | 3 | £2,086.80 |
| CI-G6C-660-27 | 27 | 1663 | 3248 | 1660 | 3 | £2,157.60 |
| CI-G6C-660-28 | 28 | 1724 | 3368 | 1722 | 3 | £2,228.40 |
| CI-G6C-660-29 | 29 | 1784 | 3488 | 1783 | 3 | £2,299.20 |
| CI-G6C-660-30 | 30 | 1845 | 3609 | 1845 | 3 | £2,370.00 |
| CI-G6C-660-31 | 31 | 1905 | 3729 | 1906 | 3 | £2,440.80 |
| CI-G6C-660-32 | 32 | 1966 | 3849 | 1968 | 3 | £2,511.60 |
| CI-G6C-660-33 | 33 | 2026 | 3969 | 2029 | 3 | £2,582.40 |
| CI-G6C-660-34 | 34 | 2087 | 4090 | 2091 | 3 | £2,653.20 |
| CI-G6C-660-35 | 35 | 2147 | 4210 | 2152 | 4 | £2,724.00 |
| CI-G6C-660-36 | 36 | 2208 | 4330 | 2214 | 3 | £2,794.80 |
| CI-G6C-660-37 | 37 | 2268 | 4451 | 2275 | 4 | £2,865.60 |
| CI-G6C-660-38 | 38 | 2329 | 4571 | 2337 | 4 | £2,936.40 |
| CI-G6C-660-39 | 39 | 2389 | 4691 | 2398 | 4 | £3,007.20 |
| CI-G6C-660-40 | 40 | 2450 | 4812 | 2460 | 4 | £3,078.00 |
