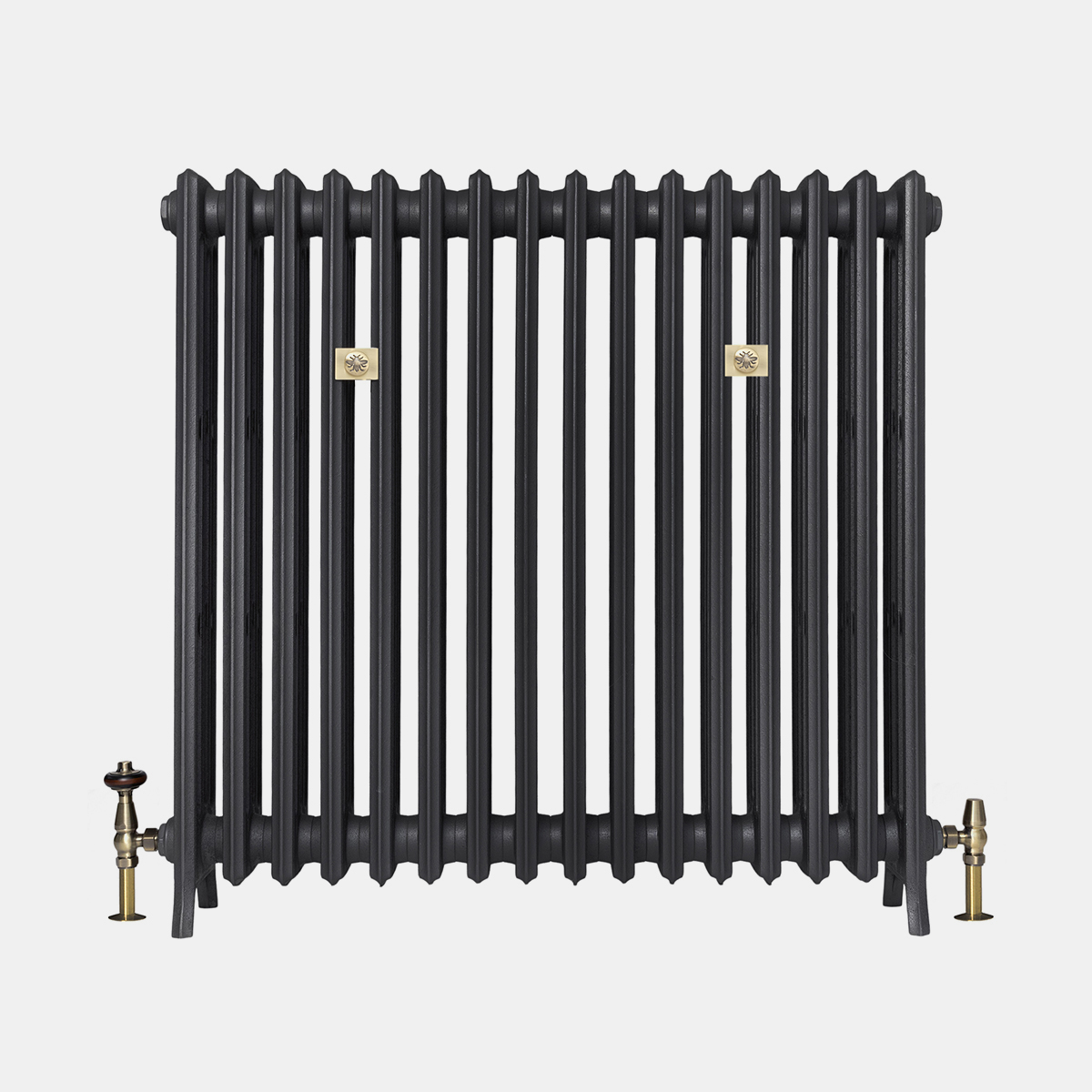

Grace 4 Column 960mm
From: £363.60
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 12 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 5-6 weeks lead time
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 950 |
| B | Bottom Inlet To Floor (mm) | 105 |
| C | Max Section Depth (mm) | 175 |
| - | Output (ΔT50, W) | 127.2 |
| - | Output (ΔT30, W) | 64.5 |
| D | Interaxis Distance (mm) | 800 |
| E | Height Without Legs (mm) | 898 |
| F | Section Length (mm) | 60.5 |
| G | Mid Section Depth (mm) | 144 |
| - | Internal Volume (L) | 1.1 |
| - | Empty Leg Section Weight (kg) | 9.6 |
| - | Empty Mid Section Weight (kg) | 9 |
| - | Factor, Km | 0.7004 |
| - | Exponent, n | 1.3297 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| CI-G4C-960-3 | 3 | 211 | 381 | 193 | 1 | £363.60 |
| CI-G4C-960-4 | 4 | 272 | 508 | 258 | 1 | £430.80 |
| CI-G4C-960-5 | 5 | 332 | 636 | 322 | 1 | £498.00 |
| CI-G4C-960-6 | 6 | 393 | 763 | 387 | 1 | £565.20 |
| CI-G4C-960-7 | 7 | 453 | 890 | 451 | 1 | £632.40 |
| CI-G4C-960-8 | 8 | 514 | 1017 | 516 | 1 | £699.60 |
| CI-G4C-960-9 | 9 | 574 | 1144 | 580 | 1 | £766.80 |
| CI-G4C-960-10 | 10 | 635 | 1272 | 645 | 1 | £834.00 |
| CI-G4C-960-11 | 11 | 695 | 1399 | 709 | 1 | £901.20 |
| CI-G4C-960-12 | 12 | 756 | 1526 | 774 | 1 | £968.40 |
| CI-G4C-960-13 | 13 | 816 | 1653 | 838 | 2 | £1,119.60 |
| CI-G4C-960-14 | 14 | 877 | 1780 | 903 | 2 | £1,186.80 |
| CI-G4C-960-15 | 15 | 937 | 1908 | 967 | 2 | £1,254.00 |
| CI-G4C-960-16 | 16 | 998 | 2035 | 1032 | 2 | £1,321.20 |
| CI-G4C-960-17 | 17 | 1058 | 2162 | 1096 | 2 | £1,388.40 |
| CI-G4C-960-18 | 18 | 1119 | 2289 | 1161 | 2 | £1,455.60 |
| CI-G4C-960-19 | 19 | 1179 | 2416 | 1225 | 2 | £1,522.80 |
| CI-G4C-960-20 | 20 | 1240 | 2544 | 1290 | 2 | £1,590.00 |
| CI-G4C-960-21 | 21 | 1300 | 2671 | 1354 | 3 | £1,657.20 |
| CI-G4C-960-22 | 22 | 1361 | 2798 | 1419 | 3 | £1,724.40 |
| CI-G4C-960-23 | 23 | 1421 | 2925 | 1483 | 3 | £1,791.60 |
| CI-G4C-960-24 | 24 | 1482 | 3052 | 1548 | 3 | £1,858.80 |
| CI-G4C-960-25 | 25 | 1542 | 3180 | 1612 | 3 | £1,926.00 |
| CI-G4C-960-26 | 26 | 1603 | 3307 | 1677 | 3 | £1,993.20 |
| CI-G4C-960-27 | 27 | 1663 | 3434 | 1741 | 3 | £2,060.40 |
| CI-G4C-960-28 | 28 | 1724 | 3561 | 1806 | 3 | £2,127.60 |
| CI-G4C-960-29 | 29 | 1784 | 3688 | 1870 | 3 | £2,194.80 |
| CI-G4C-960-30 | 30 | 1845 | 3816 | 1935 | 3 | £2,262.00 |
| CI-G4C-960-31 | 31 | 1905 | 3943 | 1999 | 3 | £2,329.20 |
| CI-G4C-960-32 | 32 | 1966 | 4070 | 2064 | 4 | £2,396.40 |
| CI-G4C-960-33 | 33 | 2026 | 4197 | 2128 | 3 | £2,463.60 |
| CI-G4C-960-34 | 34 | 2087 | 4324 | 2193 | 4 | £2,530.80 |
| CI-G4C-960-35 | 35 | 2147 | 4452 | 2257 | 4 | £2,598.00 |
| CI-G4C-960-36 | 36 | 2208 | 4579 | 2322 | 4 | £2,665.20 |
| CI-G4C-960-37 | 37 | 2268 | 4706 | 2386 | 4 | £2,732.40 |
| CI-G4C-960-38 | 38 | 2329 | 4833 | 2451 | 4 | £2,799.60 |
| CI-G4C-960-39 | 39 | 2389 | 4960 | 2515 | 4 | £2,866.80 |
| CI-G4C-960-40 | 40 | 2450 | 5088 | 2580 | 4 | £2,934.00 |
