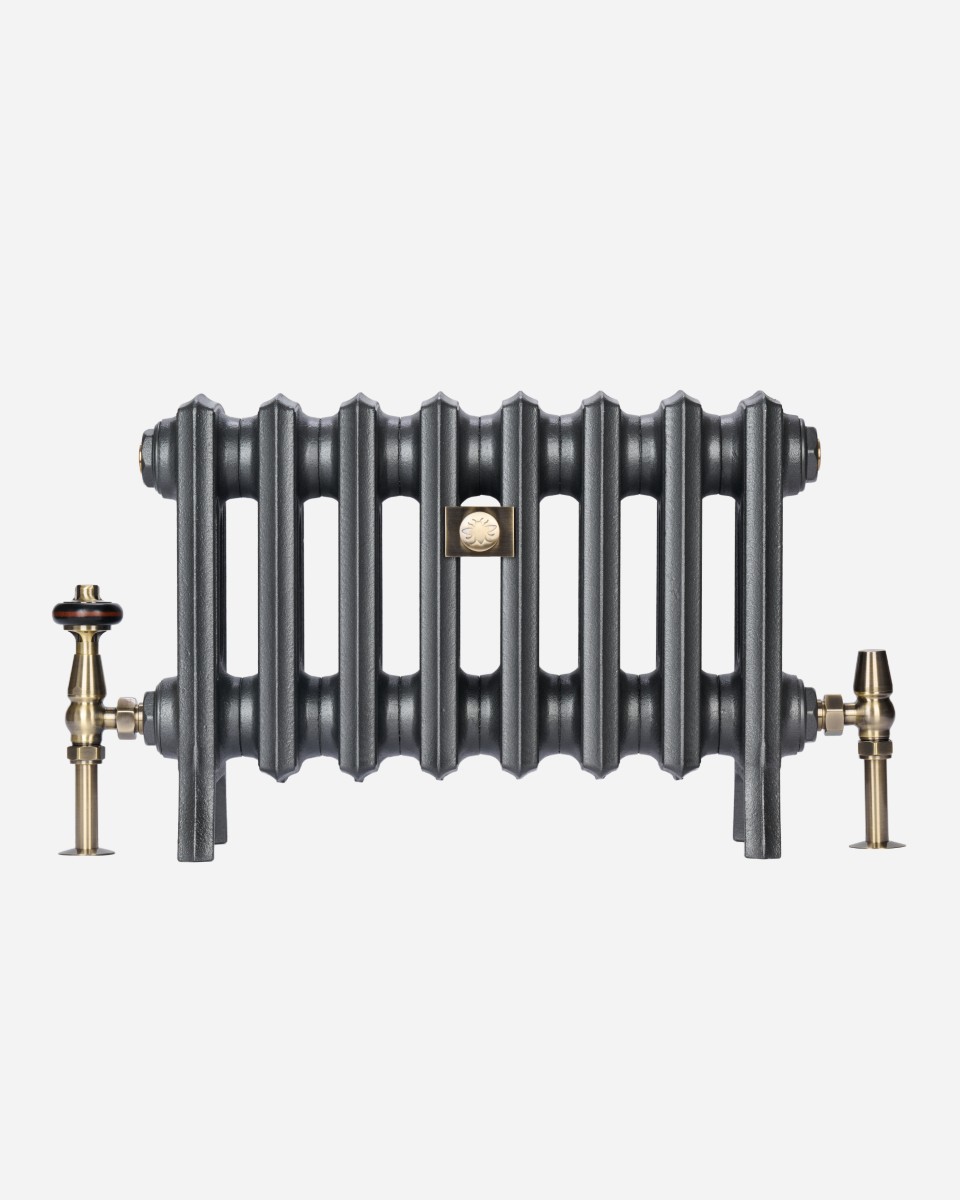

• Grace 4 column 360mm Castrads bay window radiator in matt black finish

Grace 4 Column 360mm

From: £259.20

Technical specs at 3 sections long:

Length
Heat output (∆T50)
Height
Pipe centres
Depth
Delivered in
SKU: CI-G4C-360

Model Specifications

Label Attribute Value
A Height With Legs (mm) 350
B Bottom Inlet To Floor (mm) 105
C Max Section Depth (mm) 175
- Output (ΔT50, W) 43.7
- Output (ΔT30, W) 23.5
D Interaxis Distance (mm) 200
E Height Without Legs (mm) 300
F Section Length (mm) 60.5
G Mid Section Depth (mm) 144
- Internal Volume (L) 0.55
- Empty Leg Section Weight (kg) 3.7
- Empty Mid Section Weight (kg) 3.2
- Factor, Km 0.3728
- Exponent, n 1.2178
- Heating medium Hydronic, One-pipe steam, Two-pipe steam
Grace 4 Column 360mm - Single Section Technical Drawing - SVG

Sizes Available

83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
83726
SKU N
Secs
Length
(L, mm)
Output
(∆T50, Watts)
Output
(∆T30, Watts)
Delivery
pieces
Price
from
CI-G4C-360-3 3 211 131 70 1 £259.20
CI-G4C-360-4 4 272 174 94 1 £291.60
CI-G4C-360-5 5 332 218 117 1 £324.00
CI-G4C-360-6 6 393 262 141 1 £356.40
CI-G4C-360-7 7 453 305 164 1 £388.80
CI-G4C-360-8 8 514 349 188 1 £421.20
CI-G4C-360-9 9 574 393 211 1 £453.60
CI-G4C-360-10 10 635 437 235 1 £486.00
CI-G4C-360-11 11 695 480 258 1 £518.40
CI-G4C-360-12 12 756 524 282 1 £550.80
CI-G4C-360-13 13 816 568 305 1 £583.20
CI-G4C-360-14 14 877 611 329 1 £615.60
CI-G4C-360-15 15 937 655 352 1 £648.00
CI-G4C-360-16 16 998 699 376 1 £680.40
CI-G4C-360-17 17 1058 742 399 1 £712.80
CI-G4C-360-18 18 1119 786 423 1 £745.20
CI-G4C-360-19 19 1179 830 446 2 £861.60
CI-G4C-360-20 20 1240 874 470 2 £894.00
CI-G4C-360-21 21 1300 917 493 2 £926.40
CI-G4C-360-22 22 1361 961 517 2 £958.80
CI-G4C-360-23 23 1421 1005 540 2 £991.20
CI-G4C-360-24 24 1482 1048 564 2 £1,023.60
CI-G4C-360-25 25 1542 1092 587 2 £1,056.00
CI-G4C-360-26 26 1603 1136 611 2 £1,088.40
CI-G4C-360-27 27 1663 1179 634 2 £1,120.80
CI-G4C-360-28 28 1724 1223 658 2 £1,153.20
CI-G4C-360-29 29 1784 1267 681 2 £1,185.60
CI-G4C-360-30 30 1845 1311 705 2 £1,218.00
CI-G4C-360-31 31 1905 1354 728 2 £1,250.40
CI-G4C-360-32 32 1966 1398 752 3 £1,282.80
CI-G4C-360-33 33 2026 1442 775 3 £1,315.20
CI-G4C-360-34 34 2087 1485 799 3 £1,347.60
CI-G4C-360-35 35 2147 1529 822 3 £1,380.00
CI-G4C-360-36 36 2208 1573 846 3 £1,412.40
CI-G4C-360-37 37 2268 1616 869 3 £1,444.80
CI-G4C-360-38 38 2329 1660 893 3 £1,477.20
CI-G4C-360-39 39 2389 1704 916 3 £1,509.60
CI-G4C-360-40 40 2450 1748 940 3 £1,542.00
Grace 4 Column 360mm - 10 Section Battery Technical Drawing - SVG
