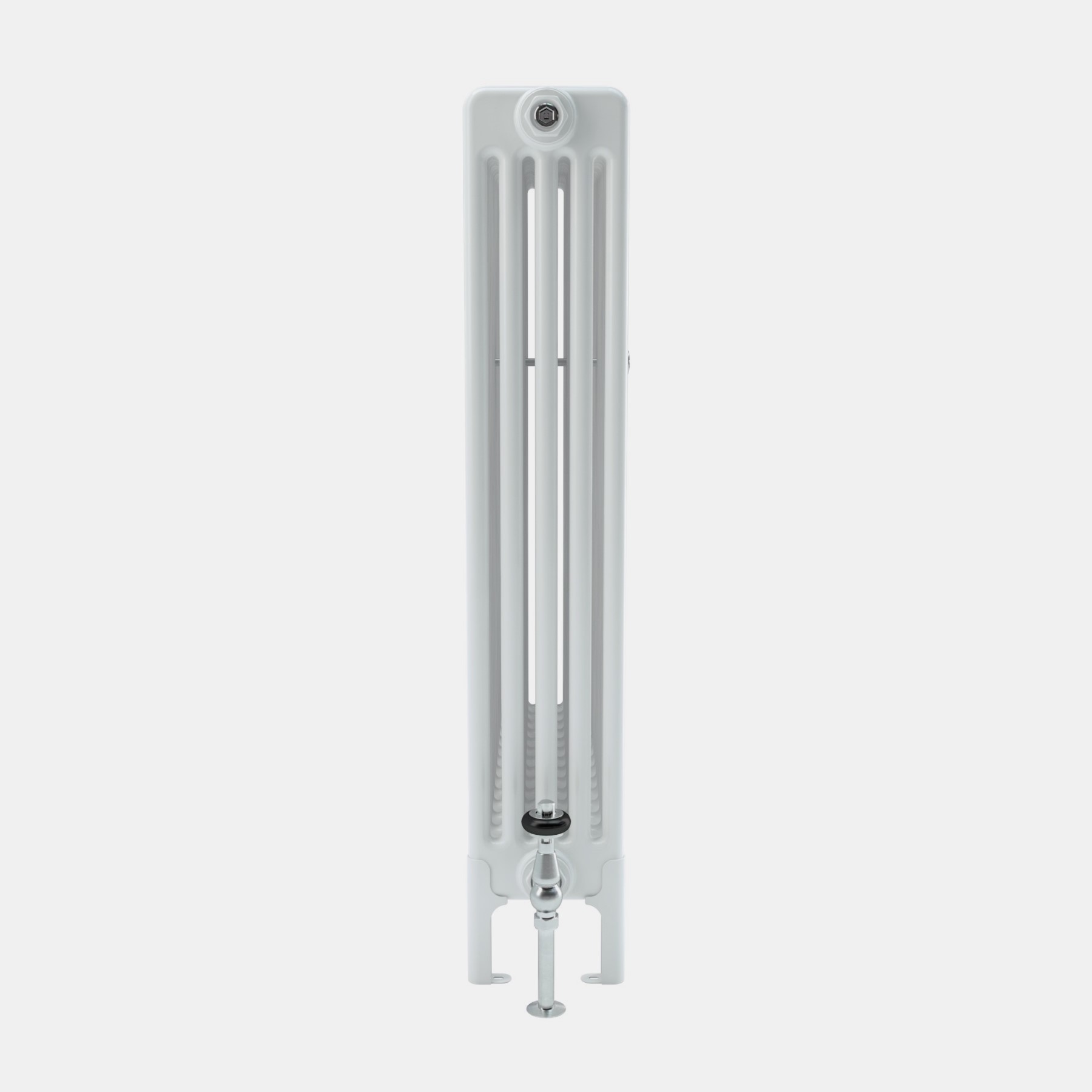

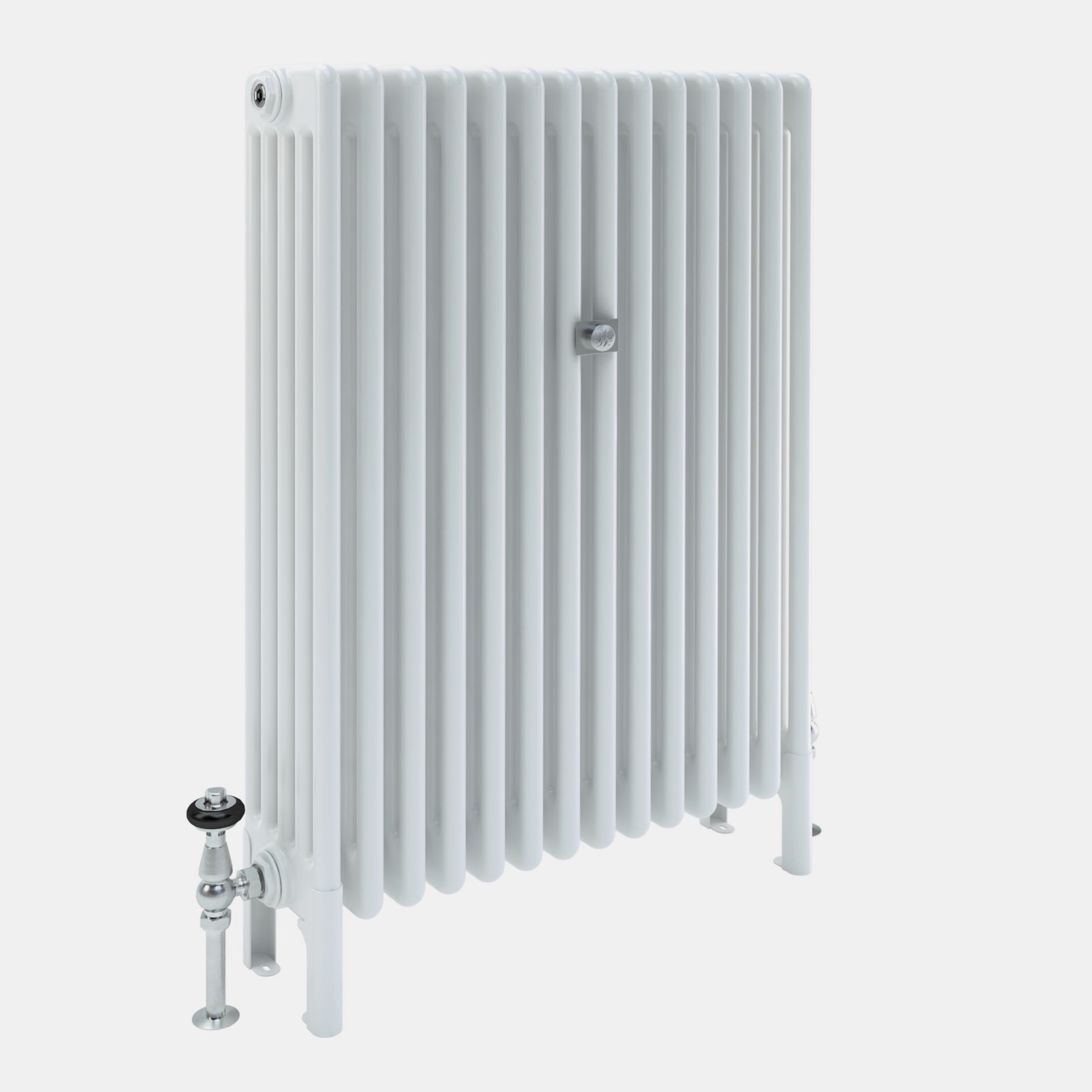

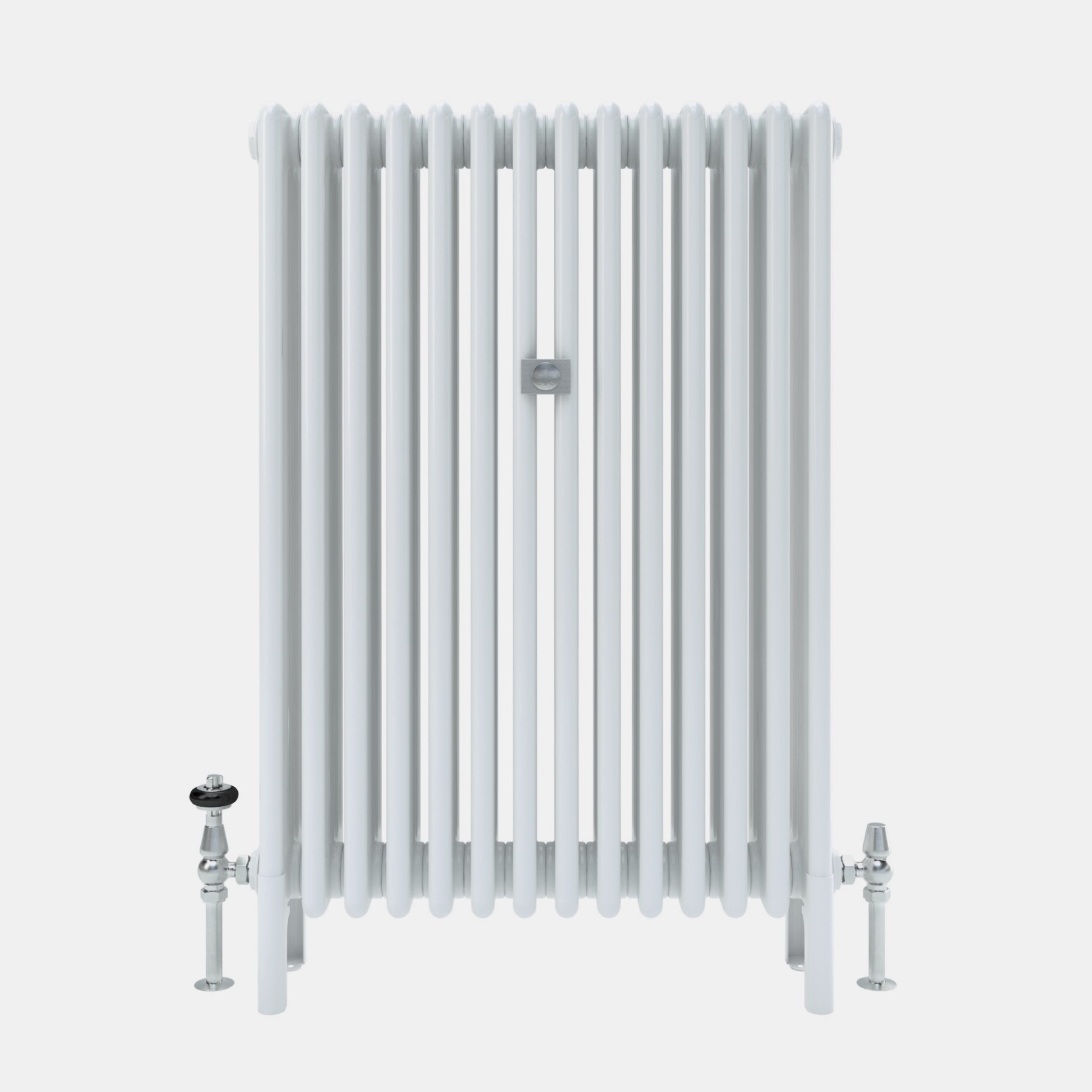

Florence 5 Column 900mm
From: £312.60
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install
- Heat pump compatible
- 10 year warranty
- Not suitable for steam
- Welded joins with powder coat finish
- Made in Italy
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 1002 |
| B | Bottom Inlet To Floor (mm) | 134 |
| C | Max Section Depth (mm) | 179 |
| D | Interaxis Distance (mm) | 835 |
| E | Height Without Legs (mm) | 902 |
| - | Output (ΔT50, W) | 138.5 |
| F | Section Length (mm) | 45 |
| - | Output (ΔT30, W) | 68.8 |
| G | Mid Section Depth (mm) | 177 |
| - | Internal Volume (L) | 2.2 |
| - | Empty Leg Section Weight (kg) | 3.2 |
| - | Empty Mid Section Weight (kg) | 2.9 |
| - | Factor, Km | 0.6528 |
| - | Exponent, n | 1.36944 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| SMC-F5C-902-3 | 3 | 165 | 415 | 206 | 1 | £312.60 |
| SMC-F5C-902-4 | 4 | 210 | 554 | 275 | 1 | £370.80 |
| SMC-F5C-902-5 | 5 | 255 | 692 | 344 | 1 | £429.00 |
| SMC-F5C-902-6 | 6 | 300 | 831 | 412 | 1 | £487.20 |
| SMC-F5C-902-7 | 7 | 345 | 969 | 481 | 1 | £545.40 |
| SMC-F5C-902-8 | 8 | 390 | 1108 | 550 | 1 | £603.60 |
| SMC-F5C-902-9 | 9 | 435 | 1246 | 619 | 1 | £661.80 |
| SMC-F5C-902-10 | 10 | 480 | 1385 | 688 | 1 | £720.00 |
| SMC-F5C-902-11 | 11 | 525 | 1523 | 756 | 1 | £778.20 |
| SMC-F5C-902-12 | 12 | 570 | 1662 | 825 | 1 | £836.40 |
| SMC-F5C-902-13 | 13 | 615 | 1800 | 894 | 1 | £894.60 |
| SMC-F5C-902-14 | 14 | 660 | 1939 | 963 | 1 | £952.80 |
| SMC-F5C-902-15 | 15 | 705 | 2077 | 1032 | 1 | £1,011.00 |
| SMC-F5C-902-16 | 16 | 750 | 2216 | 1100 | 1 | £1,069.20 |
| SMC-F5C-902-17 | 17 | 795 | 2354 | 1169 | 1 | £1,127.40 |
| SMC-F5C-902-18 | 18 | 840 | 2493 | 1238 | 1 | £1,185.60 |
| SMC-F5C-902-19 | 19 | 885 | 2631 | 1307 | 1 | £1,243.80 |
| SMC-F5C-902-20 | 20 | 930 | 2770 | 1376 | 1 | £1,302.00 |
| SMC-F5C-902-21 | 21 | 975 | 2908 | 1444 | 1 | £1,360.20 |
| SMC-F5C-902-22 | 22 | 1020 | 3047 | 1513 | 1 | £1,418.40 |
| SMC-F5C-902-23 | 23 | 1065 | 3185 | 1582 | 1 | £1,476.60 |
| SMC-F5C-902-24 | 24 | 1110 | 3324 | 1651 | 1 | £1,534.80 |
| SMC-F5C-902-25 | 25 | 1155 | 3462 | 1720 | 1 | £1,593.00 |
| SMC-F5C-902-26 | 26 | 1200 | 3601 | 1788 | 1 | £1,651.20 |
| SMC-F5C-902-27 | 27 | 1245 | 3739 | 1857 | 1 | £1,709.40 |
| SMC-F5C-902-28 | 28 | 1290 | 3878 | 1926 | 1 | £1,767.60 |
| SMC-F5C-902-29 | 29 | 1335 | 4016 | 1995 | 1 | £1,825.80 |
| SMC-F5C-902-30 | 30 | 1380 | 4155 | 2064 | 1 | £1,884.00 |
| SMC-F5C-902-31 | 31 | 1425 | 4293 | 2132 | 1 | £1,942.20 |
| SMC-F5C-902-32 | 32 | 1470 | 4432 | 2201 | 1 | £2,000.40 |
| SMC-F5C-902-33 | 33 | 1515 | 4570 | 2270 | 1 | £2,058.60 |
| SMC-F5C-902-34 | 34 | 1560 | 4709 | 2339 | 1 | £2,116.80 |
| SMC-F5C-902-35 | 35 | 1605 | 4847 | 2408 | 1 | £2,175.00 |
| SMC-F5C-902-36 | 36 | 1650 | 4986 | 2476 | 1 | £2,233.20 |
| SMC-F5C-902-37 | 37 | 1695 | 5124 | 2545 | 1 | £2,291.40 |
| SMC-F5C-902-38 | 38 | 1740 | 5263 | 2614 | 1 | £2,349.60 |
| SMC-F5C-902-39 | 39 | 1785 | 5401 | 2683 | 1 | £2,407.80 |
| SMC-F5C-902-40 | 40 | 1830 | 5540 | 2752 | 1 | £2,466.00 |
