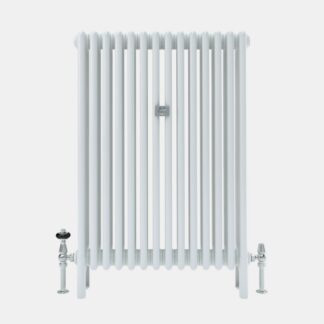

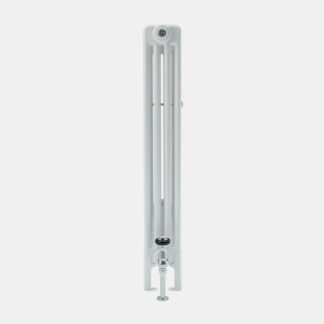

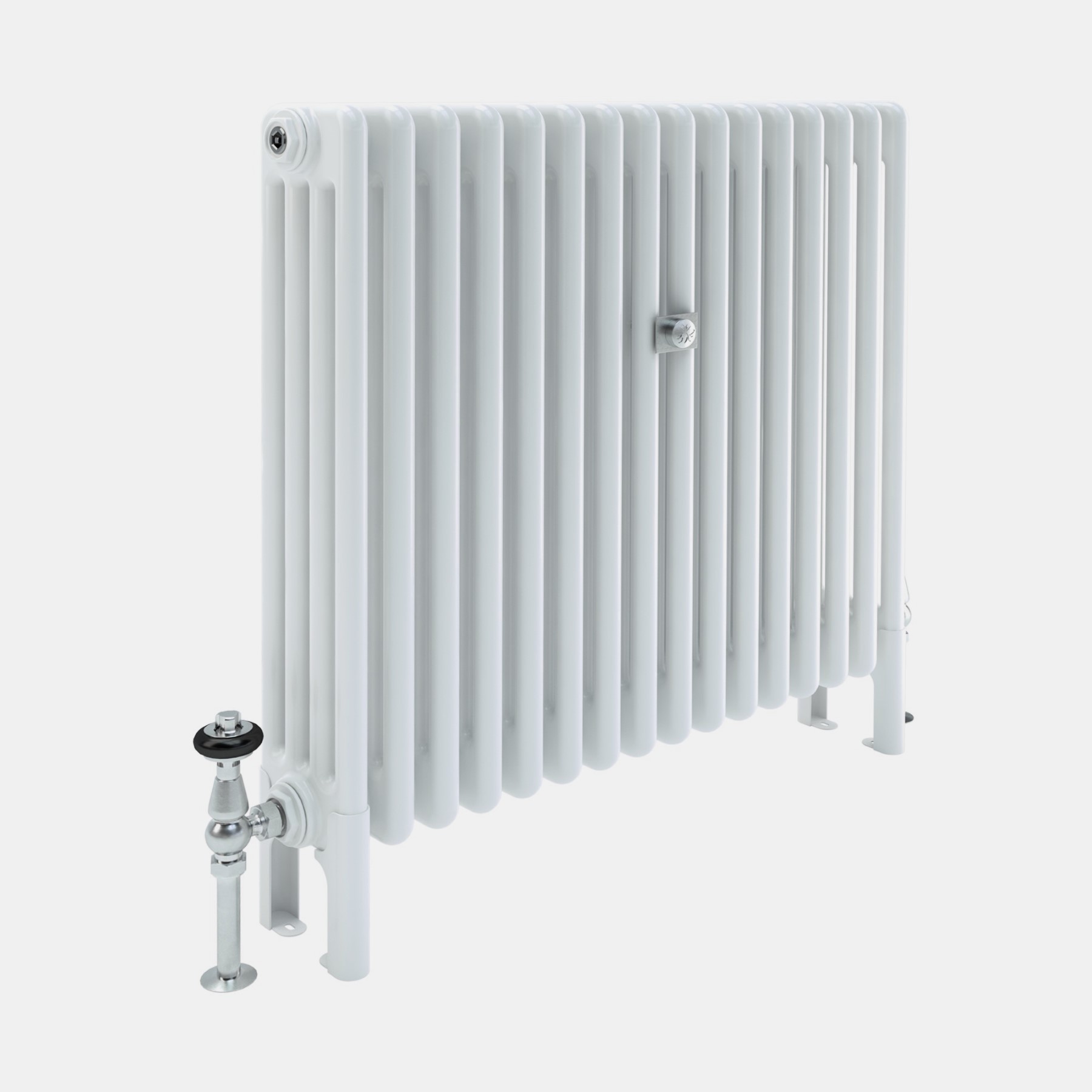

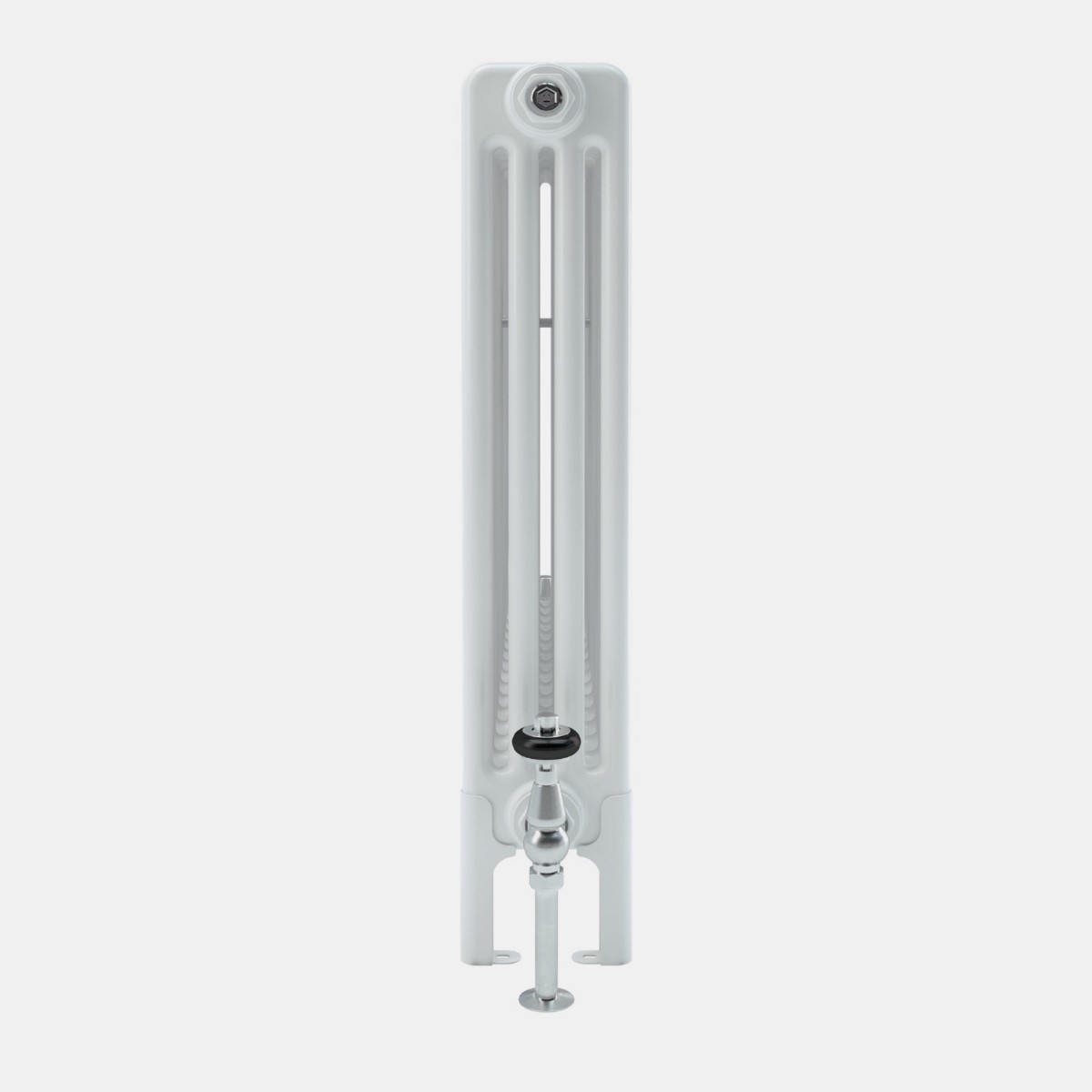

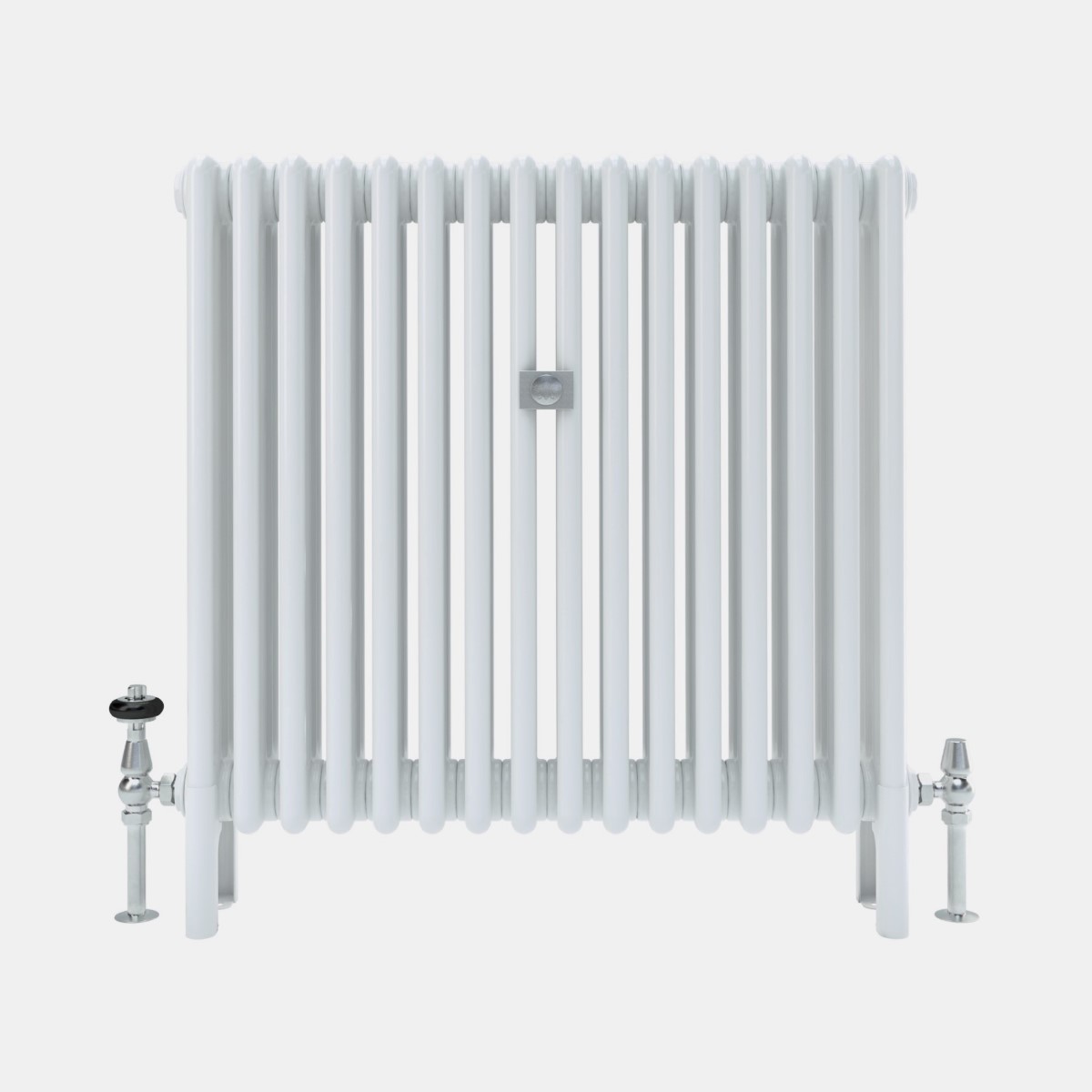

Florence 4 Column 685mm
From: £269.40
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install
- Heat pump compatible
- 10 year warranty
- Not suitable for steam
- Welded joins with powder coat finish
- Made in Italy
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 787 |
| B | Bottom Inlet To Floor (mm) | 134 |
| C | Max Section Depth (mm) | 141 |
| D | Interaxis Distance (mm) | 620 |
| E | Height Without Legs (mm) | 687 |
| - | Output (ΔT50, W) | 89.1 |
| F | Section Length (mm) | 45 |
| - | Output (ΔT30, W) | 45.6 |
| G | Mid Section Depth (mm) | 139 |
| - | Internal Volume (L) | 1.42 |
| - | Empty Leg Section Weight (kg) | 2 |
| - | Empty Mid Section Weight (kg) | 1.7 |
| - | Factor, Km | 0.525 |
| - | Exponent, n | 1.31243 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| SMC-F4C-687-3 | 3 | 165 | 267 | 136 | 1 | £269.40 |
| SMC-F4C-687-4 | 4 | 210 | 356 | 182 | 1 | £313.20 |
| SMC-F4C-687-5 | 5 | 255 | 445 | 228 | 1 | £357.00 |
| SMC-F4C-687-6 | 6 | 300 | 534 | 273 | 1 | £400.80 |
| SMC-F4C-687-7 | 7 | 345 | 623 | 319 | 1 | £444.60 |
| SMC-F4C-687-8 | 8 | 390 | 712 | 364 | 1 | £488.40 |
| SMC-F4C-687-9 | 9 | 435 | 801 | 410 | 1 | £532.20 |
| SMC-F4C-687-10 | 10 | 480 | 891 | 456 | 1 | £576.00 |
| SMC-F4C-687-11 | 11 | 525 | 980 | 501 | 1 | £619.80 |
| SMC-F4C-687-12 | 12 | 570 | 1069 | 547 | 1 | £663.60 |
| SMC-F4C-687-13 | 13 | 615 | 1158 | 592 | 1 | £707.40 |
| SMC-F4C-687-14 | 14 | 660 | 1247 | 638 | 1 | £751.20 |
| SMC-F4C-687-15 | 15 | 705 | 1336 | 684 | 1 | £795.00 |
| SMC-F4C-687-16 | 16 | 750 | 1425 | 729 | 1 | £838.80 |
| SMC-F4C-687-17 | 17 | 795 | 1514 | 775 | 1 | £882.60 |
| SMC-F4C-687-18 | 18 | 840 | 1603 | 820 | 1 | £926.40 |
| SMC-F4C-687-19 | 19 | 885 | 1692 | 866 | 1 | £970.20 |
| SMC-F4C-687-20 | 20 | 930 | 1782 | 912 | 1 | £1,014.00 |
| SMC-F4C-687-21 | 21 | 975 | 1871 | 957 | 1 | £1,057.80 |
| SMC-F4C-687-22 | 22 | 1020 | 1960 | 1003 | 1 | £1,101.60 |
| SMC-F4C-687-23 | 23 | 1065 | 2049 | 1048 | 1 | £1,145.40 |
| SMC-F4C-687-24 | 24 | 1110 | 2138 | 1094 | 1 | £1,189.20 |
| SMC-F4C-687-25 | 25 | 1155 | 2227 | 1140 | 1 | £1,233.00 |
| SMC-F4C-687-26 | 26 | 1200 | 2316 | 1185 | 1 | £1,276.80 |
| SMC-F4C-687-27 | 27 | 1245 | 2405 | 1231 | 1 | £1,320.60 |
| SMC-F4C-687-28 | 28 | 1290 | 2494 | 1276 | 1 | £1,364.40 |
| SMC-F4C-687-29 | 29 | 1335 | 2583 | 1322 | 1 | £1,408.20 |
| SMC-F4C-687-30 | 30 | 1380 | 2673 | 1368 | 1 | £1,452.00 |
| SMC-F4C-687-31 | 31 | 1425 | 2762 | 1413 | 1 | £1,495.80 |
| SMC-F4C-687-32 | 32 | 1470 | 2851 | 1459 | 1 | £1,539.60 |
| SMC-F4C-687-33 | 33 | 1515 | 2940 | 1504 | 1 | £1,583.40 |
| SMC-F4C-687-34 | 34 | 1560 | 3029 | 1550 | 1 | £1,627.20 |
| SMC-F4C-687-35 | 35 | 1605 | 3118 | 1596 | 1 | £1,671.00 |
| SMC-F4C-687-36 | 36 | 1650 | 3207 | 1641 | 1 | £1,714.80 |
| SMC-F4C-687-37 | 37 | 1695 | 3296 | 1687 | 1 | £1,758.60 |
| SMC-F4C-687-38 | 38 | 1740 | 3385 | 1732 | 1 | £1,802.40 |
| SMC-F4C-687-39 | 39 | 1785 | 3474 | 1778 | 1 | £1,846.20 |
| SMC-F4C-687-40 | 40 | 1830 | 3564 | 1824 | 1 | £1,890.00 |
