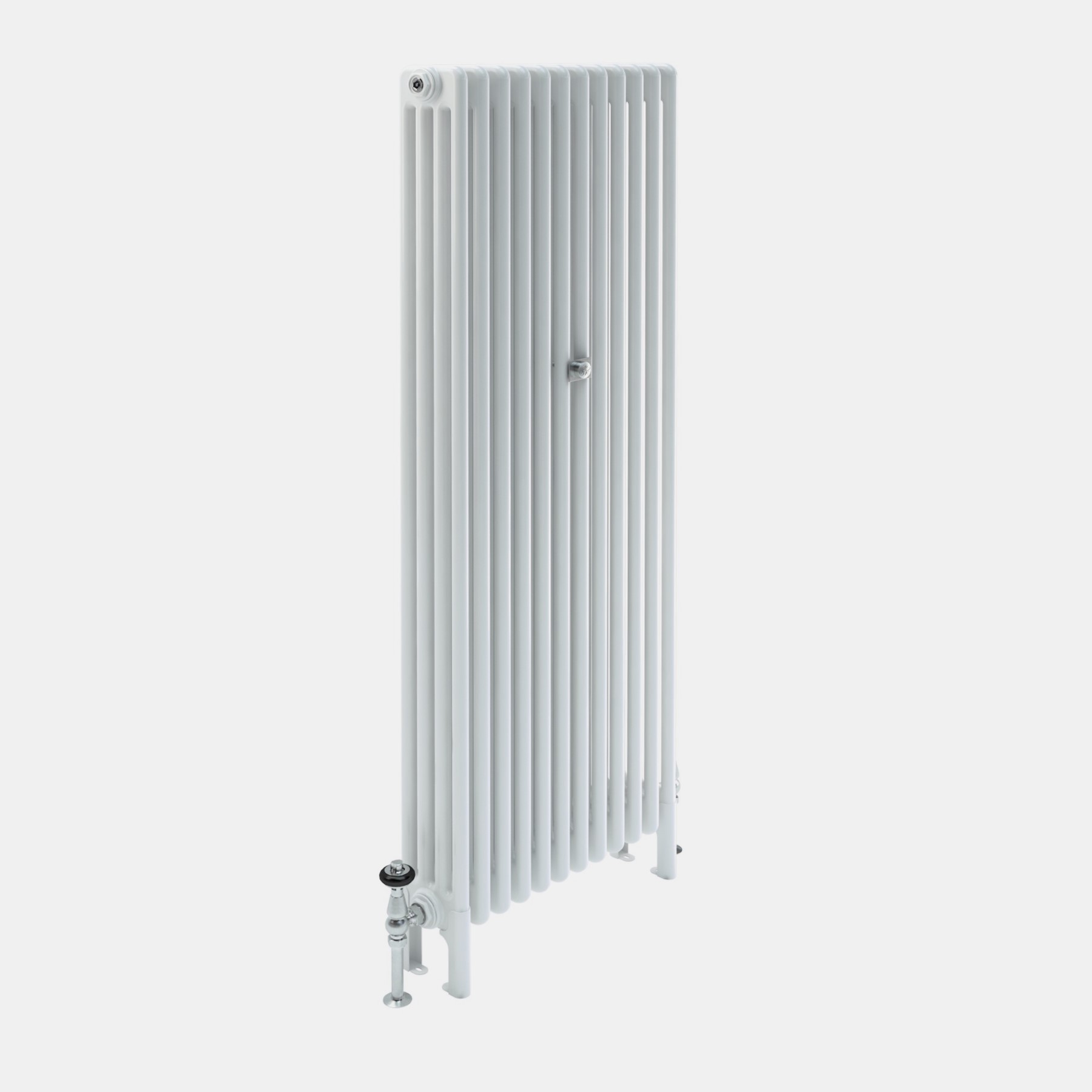

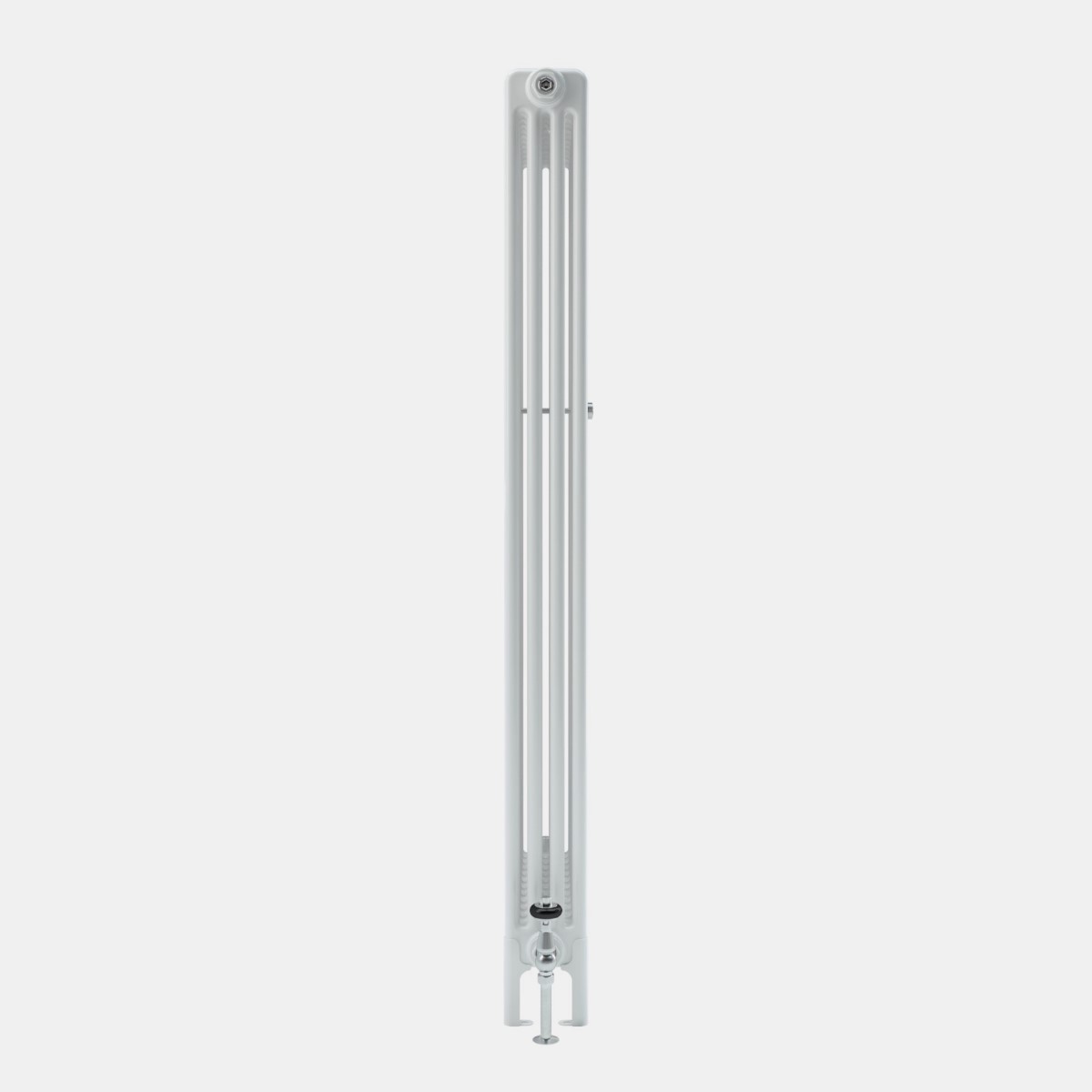

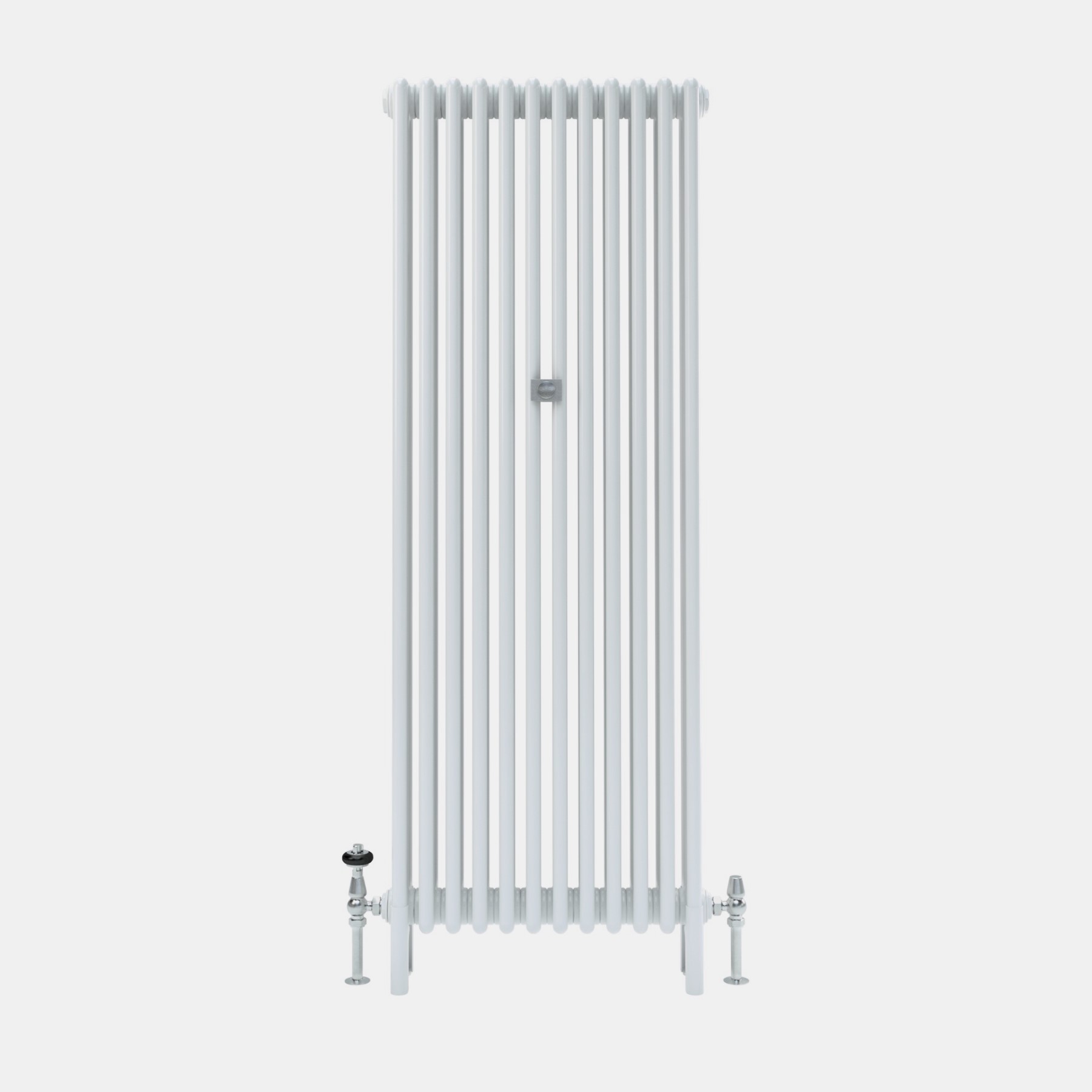

Florence 4 Column 1500mm
From: £424.20
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install
- Heat pump compatible
- 10 year warranty
- Not suitable for steam
- Welded joins with powder coat finish
- Made in Italy
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 1602 |
| B | Bottom Inlet To Floor (mm) | 134 |
| C | Max Section Depth (mm) | 141 |
| D | Interaxis Distance (mm) | 1435 |
| E | Height Without Legs (mm) | 1502 |
| - | Output (ΔT50, W) | 182.6 |
| F | Section Length (mm) | 45 |
| - | Output (ΔT30, W) | 92.7 |
| G | Mid Section Depth (mm) | 139 |
| - | Internal Volume (L) | 2.74 |
| - | Empty Leg Section Weight (kg) | 4.3 |
| - | Empty Mid Section Weight (kg) | 4 |
| - | Factor, Km | 1.0141 |
| - | Exponent, n | 1.32755 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| SMC-F4C-1502-3 | 3 | 165 | 547 | 278 | 1 | £424.20 |
| SMC-F4C-1502-4 | 4 | 210 | 730 | 370 | 1 | £519.60 |
| SMC-F4C-1502-5 | 5 | 255 | 913 | 463 | 1 | £615.00 |
| SMC-F4C-1502-6 | 6 | 300 | 1095 | 556 | 1 | £710.40 |
| SMC-F4C-1502-7 | 7 | 345 | 1278 | 648 | 1 | £805.80 |
| SMC-F4C-1502-8 | 8 | 390 | 1460 | 741 | 1 | £901.20 |
| SMC-F4C-1502-9 | 9 | 435 | 1643 | 834 | 1 | £996.60 |
| SMC-F4C-1502-10 | 10 | 480 | 1826 | 927 | 1 | £1,092.00 |
| SMC-F4C-1502-11 | 11 | 525 | 2008 | 1019 | 1 | £1,187.40 |
| SMC-F4C-1502-12 | 12 | 570 | 2191 | 1112 | 1 | £1,282.80 |
| SMC-F4C-1502-13 | 13 | 615 | 2373 | 1205 | 1 | £1,378.20 |
| SMC-F4C-1502-14 | 14 | 660 | 2556 | 1297 | 1 | £1,473.60 |
| SMC-F4C-1502-15 | 15 | 705 | 2739 | 1390 | 1 | £1,569.00 |
| SMC-F4C-1502-16 | 16 | 750 | 2921 | 1483 | 1 | £1,664.40 |
| SMC-F4C-1502-17 | 17 | 795 | 3104 | 1575 | 1 | £1,759.80 |
| SMC-F4C-1502-18 | 18 | 840 | 3286 | 1668 | 1 | £1,855.20 |
| SMC-F4C-1502-19 | 19 | 885 | 3469 | 1761 | 1 | £1,950.60 |
| SMC-F4C-1502-20 | 20 | 930 | 3652 | 1854 | 1 | £2,046.00 |
| SMC-F4C-1502-21 | 21 | 975 | 3834 | 1946 | 1 | £2,141.40 |
| SMC-F4C-1502-22 | 22 | 1020 | 4017 | 2039 | 1 | £2,236.80 |
| SMC-F4C-1502-23 | 23 | 1065 | 4199 | 2132 | 1 | £2,332.20 |
| SMC-F4C-1502-24 | 24 | 1110 | 4382 | 2224 | 1 | £2,427.60 |
| SMC-F4C-1502-25 | 25 | 1155 | 4565 | 2317 | 1 | £2,523.00 |
| SMC-F4C-1502-26 | 26 | 1200 | 4747 | 2410 | 1 | £2,618.40 |
| SMC-F4C-1502-27 | 27 | 1245 | 4930 | 2502 | 1 | £2,713.80 |
| SMC-F4C-1502-28 | 28 | 1290 | 5112 | 2595 | 1 | £2,809.20 |
| SMC-F4C-1502-29 | 29 | 1335 | 5295 | 2688 | 1 | £2,904.60 |
| SMC-F4C-1502-30 | 30 | 1380 | 5478 | 2781 | 1 | £3,000.00 |
| SMC-F4C-1502-31 | 31 | 1425 | 5660 | 2873 | 1 | £3,095.40 |
| SMC-F4C-1502-32 | 32 | 1470 | 5843 | 2966 | 1 | £3,190.80 |
| SMC-F4C-1502-33 | 33 | 1515 | 6025 | 3059 | 1 | £3,286.20 |
| SMC-F4C-1502-34 | 34 | 1560 | 6208 | 3151 | 1 | £3,381.60 |
| SMC-F4C-1502-35 | 35 | 1605 | 6391 | 3244 | 1 | £3,477.00 |
| SMC-F4C-1502-36 | 36 | 1650 | 6573 | 3337 | 1 | £3,572.40 |
| SMC-F4C-1502-37 | 37 | 1695 | 6756 | 3429 | 1 | £3,667.80 |
| SMC-F4C-1502-38 | 38 | 1740 | 6938 | 3522 | 1 | £3,763.20 |
| SMC-F4C-1502-39 | 39 | 1785 | 7121 | 3615 | 1 | £3,858.60 |
| SMC-F4C-1502-40 | 40 | 1830 | 7304 | 3708 | 1 | £3,954.00 |
