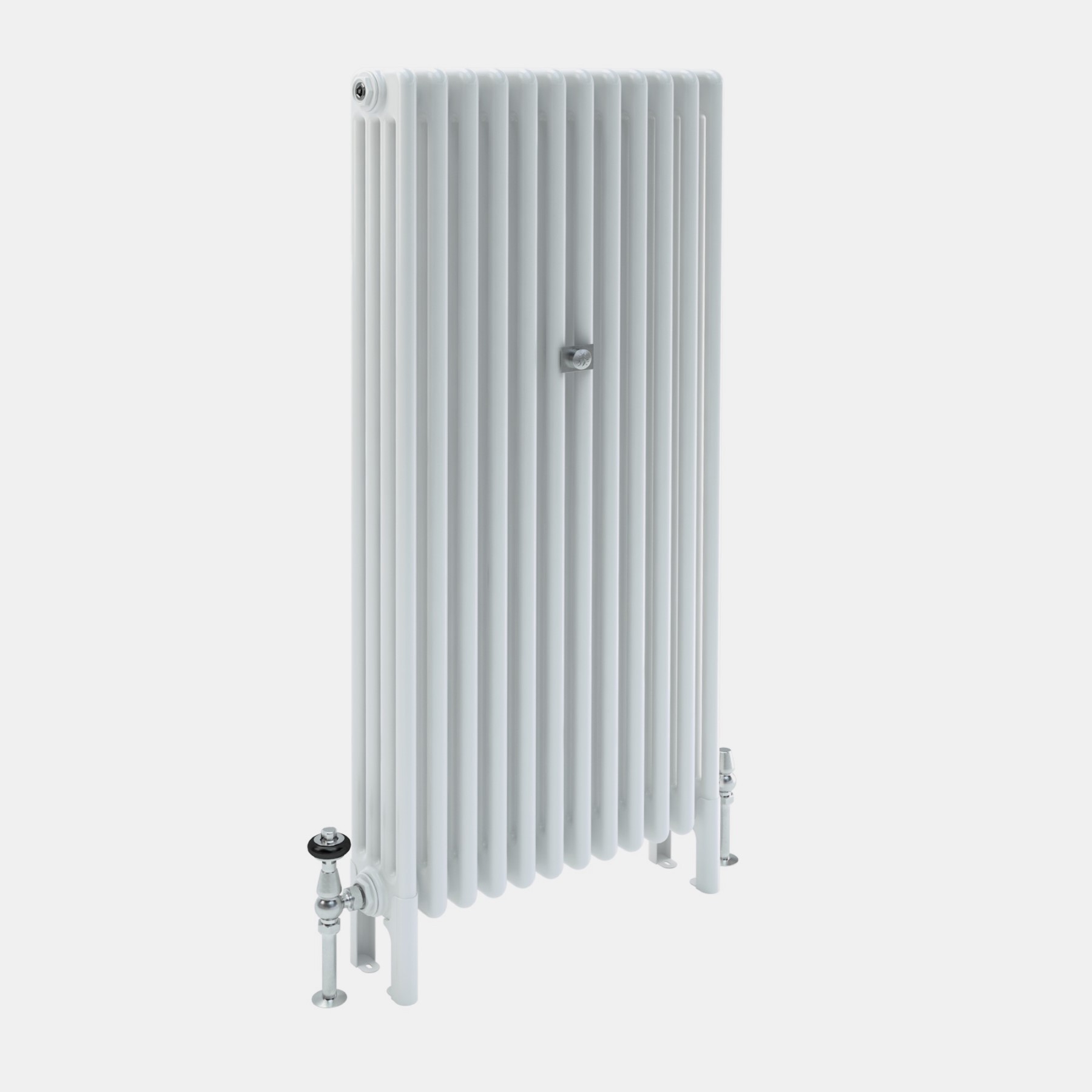

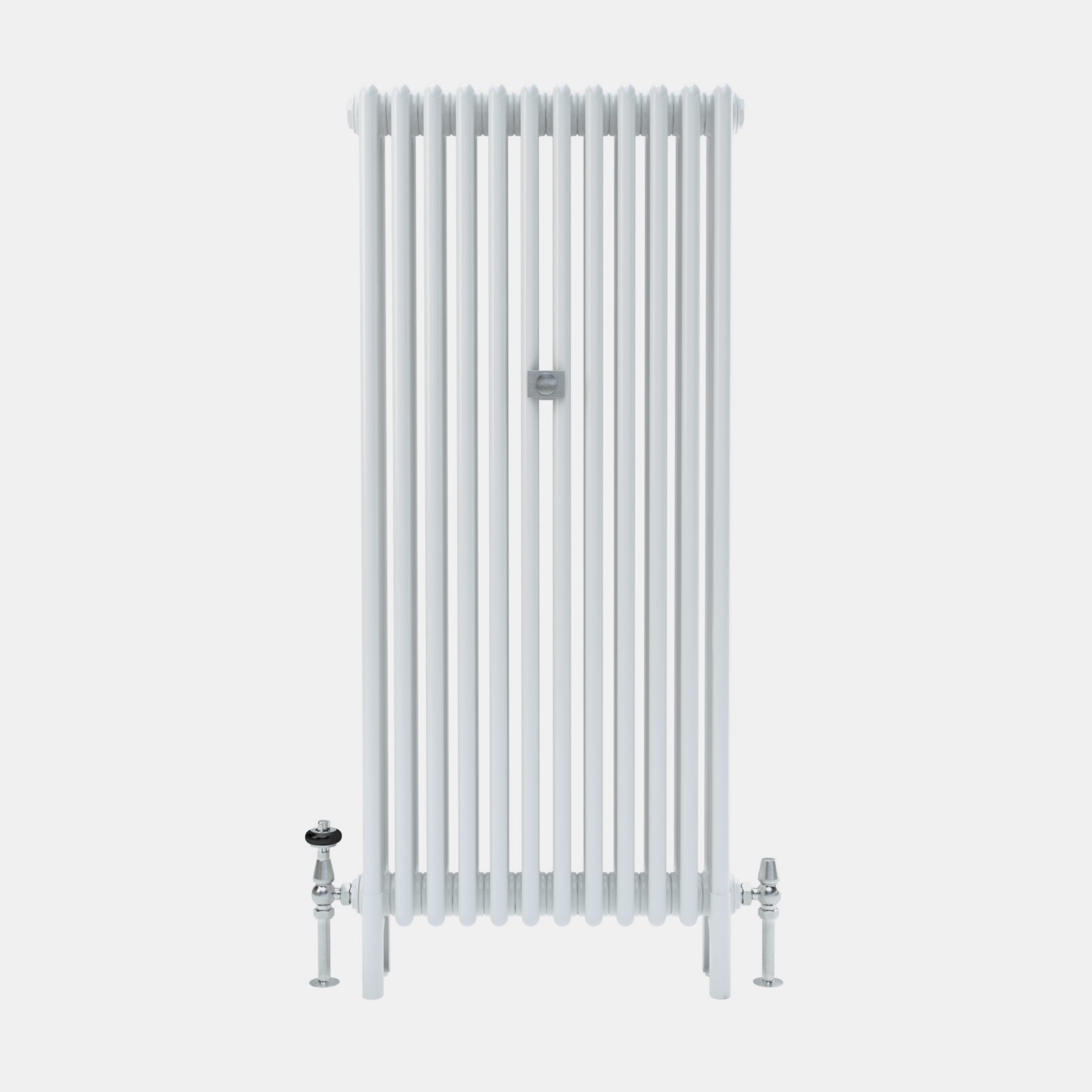

Florence 4 Column 1200mm
From: £348.60
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install
- Heat pump compatible
- 10 year warranty
- Not suitable for steam
- Welded joins with powder coat finish
- Made in Italy
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 1302 |
| B | Bottom Inlet To Floor (mm) | 134 |
| C | Max Section Depth (mm) | 141 |
| D | Interaxis Distance (mm) | 1135 |
| E | Height Without Legs (mm) | 1202 |
| - | Output (ΔT50, W) | 148.8 |
| F | Section Length (mm) | 45 |
| - | Output (ΔT30, W) | 75.2 |
| G | Mid Section Depth (mm) | 139 |
| - | Internal Volume (L) | 2.25 |
| - | Empty Leg Section Weight (kg) | 3.5 |
| - | Empty Mid Section Weight (kg) | 3.2 |
| - | Factor, Km | 0.802 |
| - | Exponent, n | 1.33516 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| SMC-F4C-1202-3 | 3 | 165 | 446 | 225 | 1 | £348.60 |
| SMC-F4C-1202-4 | 4 | 210 | 595 | 300 | 1 | £418.80 |
| SMC-F4C-1202-5 | 5 | 255 | 744 | 376 | 1 | £489.00 |
| SMC-F4C-1202-6 | 6 | 300 | 892 | 451 | 1 | £559.20 |
| SMC-F4C-1202-7 | 7 | 345 | 1041 | 526 | 1 | £629.40 |
| SMC-F4C-1202-8 | 8 | 390 | 1190 | 601 | 1 | £699.60 |
| SMC-F4C-1202-9 | 9 | 435 | 1339 | 676 | 1 | £769.80 |
| SMC-F4C-1202-10 | 10 | 480 | 1488 | 752 | 1 | £840.00 |
| SMC-F4C-1202-11 | 11 | 525 | 1636 | 827 | 1 | £910.20 |
| SMC-F4C-1202-12 | 12 | 570 | 1785 | 902 | 1 | £980.40 |
| SMC-F4C-1202-13 | 13 | 615 | 1934 | 977 | 1 | £1,050.60 |
| SMC-F4C-1202-14 | 14 | 660 | 2083 | 1052 | 1 | £1,120.80 |
| SMC-F4C-1202-15 | 15 | 705 | 2232 | 1128 | 1 | £1,191.00 |
| SMC-F4C-1202-16 | 16 | 750 | 2380 | 1203 | 1 | £1,261.20 |
| SMC-F4C-1202-17 | 17 | 795 | 2529 | 1278 | 1 | £1,331.40 |
| SMC-F4C-1202-18 | 18 | 840 | 2678 | 1353 | 1 | £1,401.60 |
| SMC-F4C-1202-19 | 19 | 885 | 2827 | 1428 | 1 | £1,471.80 |
| SMC-F4C-1202-20 | 20 | 930 | 2976 | 1504 | 1 | £1,542.00 |
| SMC-F4C-1202-21 | 21 | 975 | 3124 | 1579 | 1 | £1,612.20 |
| SMC-F4C-1202-22 | 22 | 1020 | 3273 | 1654 | 1 | £1,682.40 |
| SMC-F4C-1202-23 | 23 | 1065 | 3422 | 1729 | 1 | £1,752.60 |
| SMC-F4C-1202-24 | 24 | 1110 | 3571 | 1804 | 1 | £1,822.80 |
| SMC-F4C-1202-25 | 25 | 1155 | 3720 | 1880 | 1 | £1,893.00 |
| SMC-F4C-1202-26 | 26 | 1200 | 3868 | 1955 | 1 | £1,963.20 |
| SMC-F4C-1202-27 | 27 | 1245 | 4017 | 2030 | 1 | £2,033.40 |
| SMC-F4C-1202-28 | 28 | 1290 | 4166 | 2105 | 1 | £2,103.60 |
| SMC-F4C-1202-29 | 29 | 1335 | 4315 | 2180 | 1 | £2,173.80 |
| SMC-F4C-1202-30 | 30 | 1380 | 4464 | 2256 | 1 | £2,244.00 |
| SMC-F4C-1202-31 | 31 | 1425 | 4612 | 2331 | 1 | £2,314.20 |
| SMC-F4C-1202-32 | 32 | 1470 | 4761 | 2406 | 1 | £2,384.40 |
| SMC-F4C-1202-33 | 33 | 1515 | 4910 | 2481 | 1 | £2,454.60 |
| SMC-F4C-1202-34 | 34 | 1560 | 5059 | 2556 | 1 | £2,524.80 |
| SMC-F4C-1202-35 | 35 | 1605 | 5208 | 2632 | 1 | £2,595.00 |
| SMC-F4C-1202-36 | 36 | 1650 | 5356 | 2707 | 1 | £2,665.20 |
| SMC-F4C-1202-37 | 37 | 1695 | 5505 | 2782 | 1 | £2,735.40 |
| SMC-F4C-1202-38 | 38 | 1740 | 5654 | 2857 | 1 | £2,805.60 |
| SMC-F4C-1202-39 | 39 | 1785 | 5803 | 2932 | 1 | £2,875.80 |
| SMC-F4C-1202-40 | 40 | 1830 | 5952 | 3008 | 1 | £2,946.00 |
