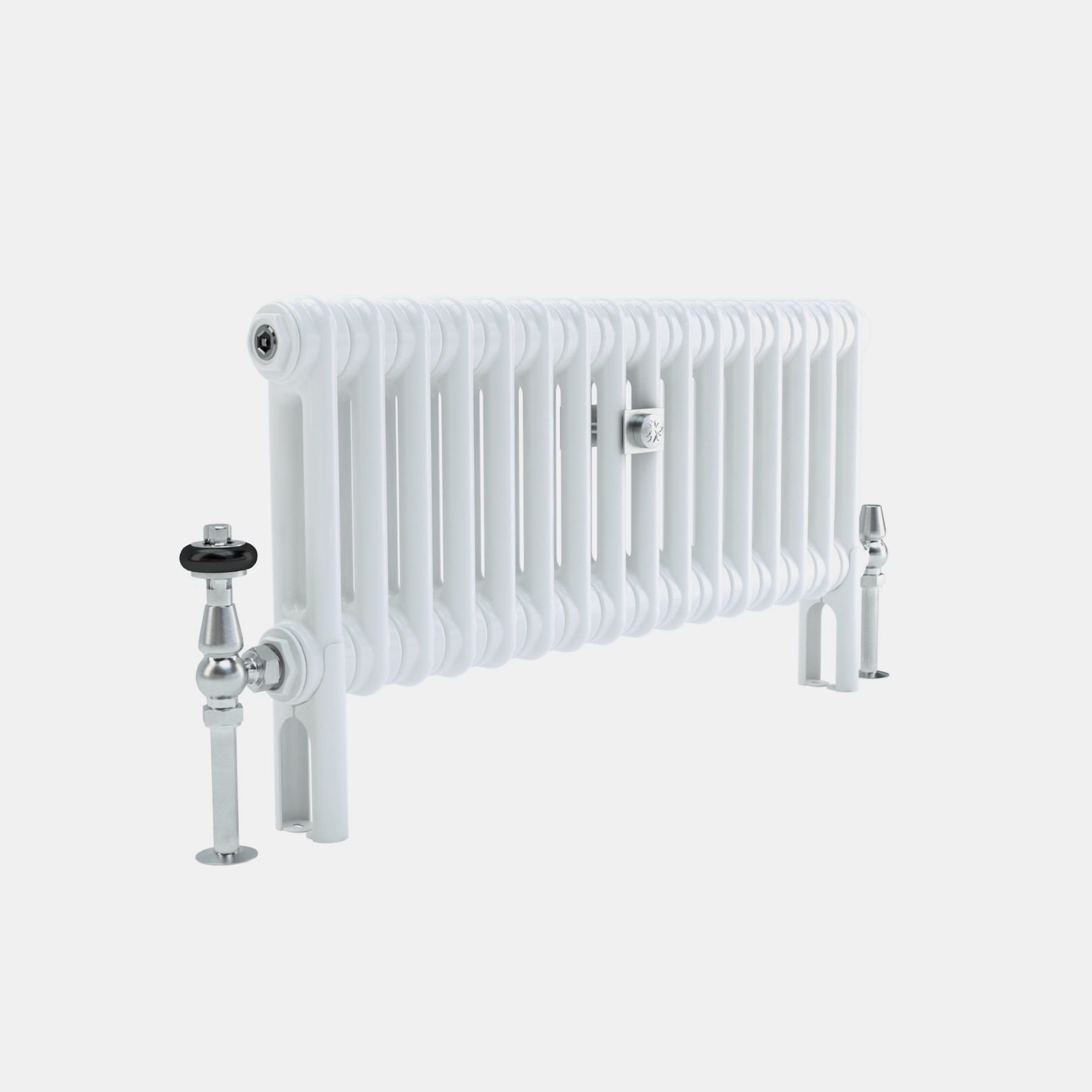

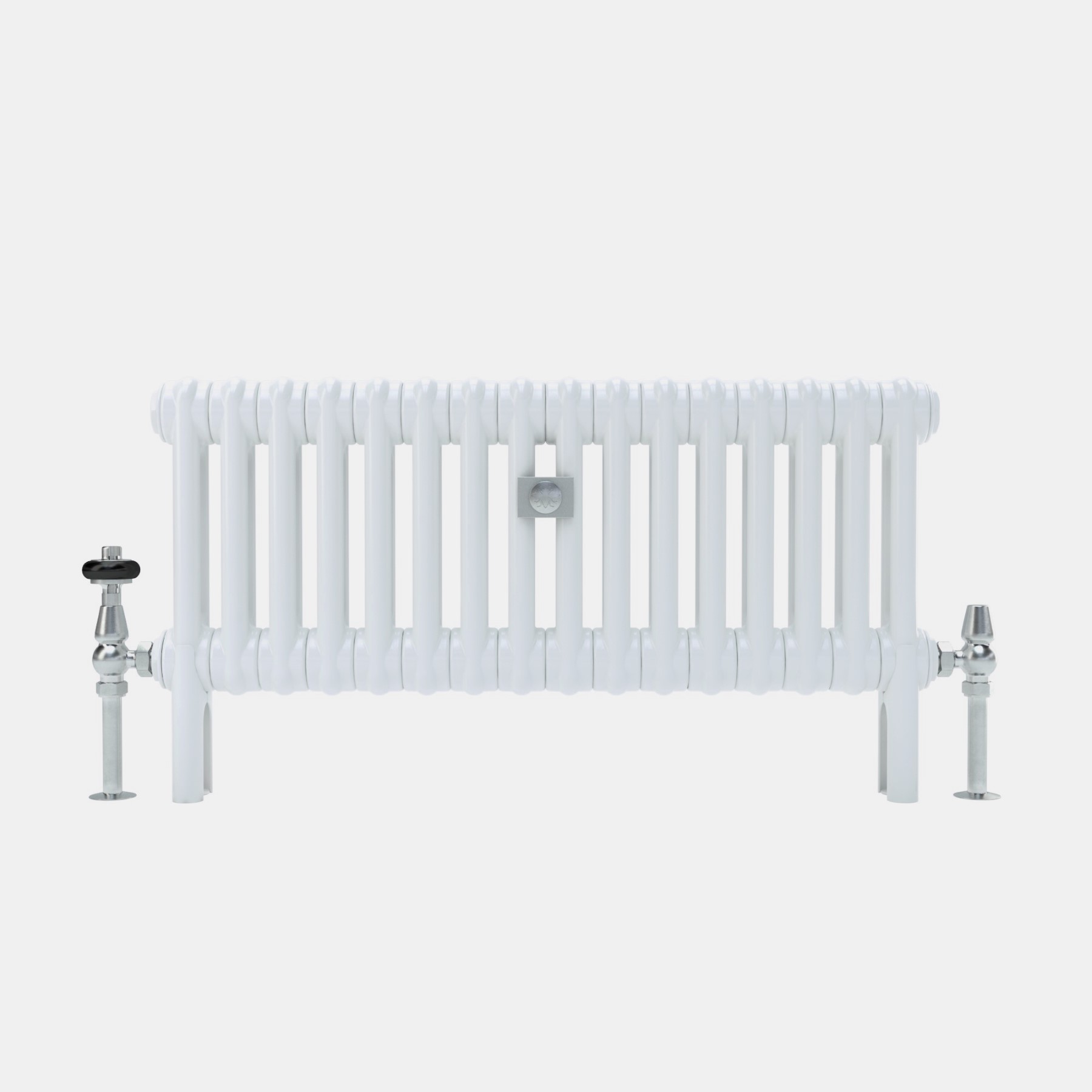

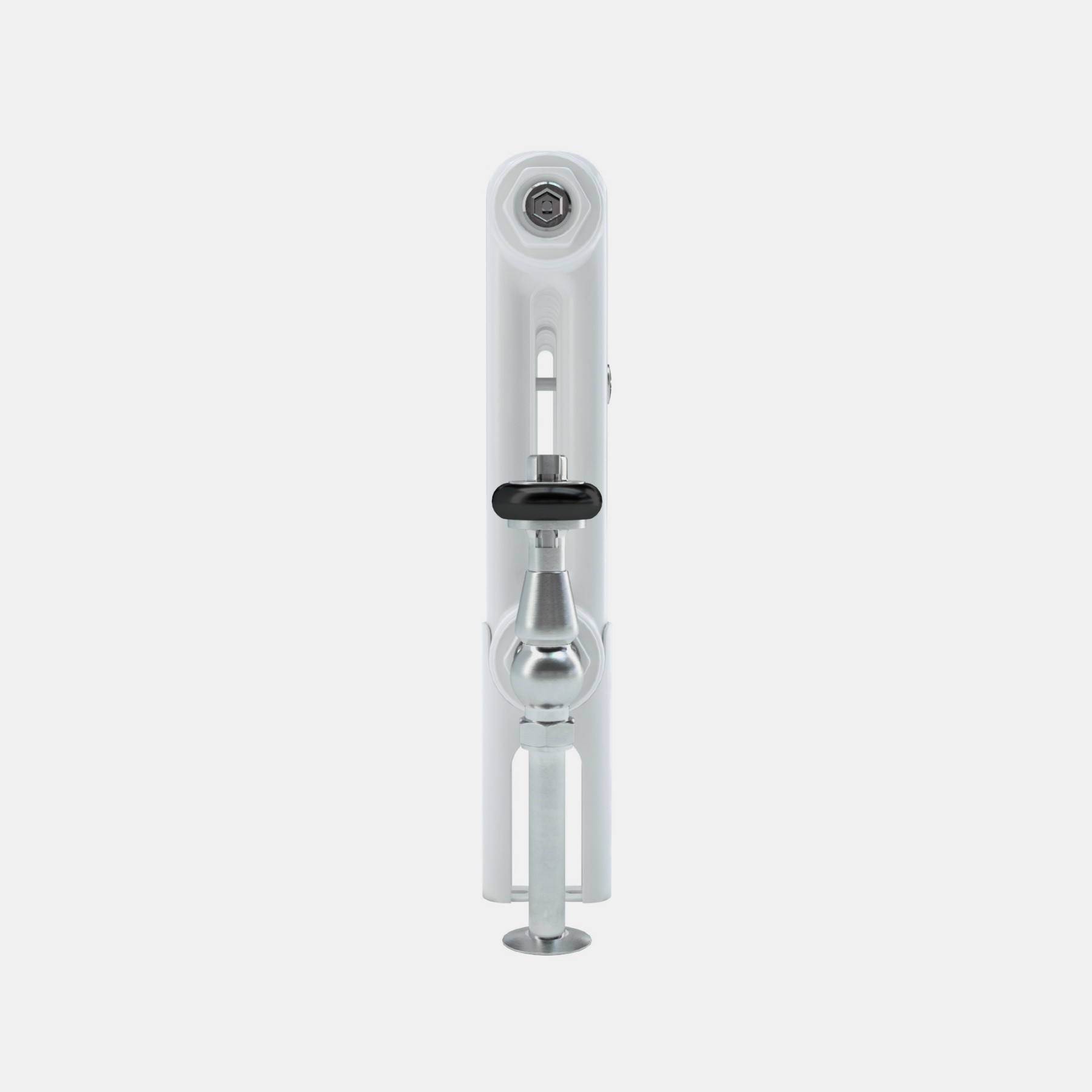

Florence 2 Column 300mm
From: £226.20
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install
- Heat pump compatible
- 10 year warranty
- Not suitable for steam
- Welded joins with powder coat finish
- Made in Italy
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 402 |
| B | Bottom Inlet To Floor (mm) | 134 |
| C | Max Section Depth (mm) | 67 |
| D | Interaxis Distance (mm) | 235 |
| E | Height Without Legs (mm) | 302 |
| - | Output (ΔT50, W) | 23.4 |
| F | Section Length (mm) | 45 |
| - | Output (ΔT30, W) | 12.5 |
| G | Mid Section Depth (mm) | 65 |
| - | Internal Volume (L) | 0.4 |
| - | Empty Leg Section Weight (kg) | 0.8 |
| - | Empty Mid Section Weight (kg) | 0.5 |
| - | Factor, Km | 0.1843 |
| - | Exponent, n | 1.23859 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| SMC-F2C-302-3 | 3 | 165 | 70 | 37 | 1 | £226.20 |
| SMC-F2C-302-4 | 4 | 210 | 93 | 50 | 1 | £255.60 |
| SMC-F2C-302-5 | 5 | 255 | 117 | 62 | 1 | £285.00 |
| SMC-F2C-302-6 | 6 | 300 | 140 | 75 | 1 | £314.40 |
| SMC-F2C-302-7 | 7 | 345 | 163 | 87 | 1 | £343.80 |
| SMC-F2C-302-8 | 8 | 390 | 187 | 100 | 1 | £373.20 |
| SMC-F2C-302-9 | 9 | 435 | 210 | 112 | 1 | £402.60 |
| SMC-F2C-302-10 | 10 | 480 | 234 | 125 | 1 | £432.00 |
| SMC-F2C-302-11 | 11 | 525 | 257 | 137 | 1 | £461.40 |
| SMC-F2C-302-12 | 12 | 570 | 280 | 150 | 1 | £490.80 |
| SMC-F2C-302-13 | 13 | 615 | 304 | 162 | 1 | £520.20 |
| SMC-F2C-302-14 | 14 | 660 | 327 | 175 | 1 | £549.60 |
| SMC-F2C-302-15 | 15 | 705 | 351 | 187 | 1 | £579.00 |
| SMC-F2C-302-16 | 16 | 750 | 374 | 200 | 1 | £608.40 |
| SMC-F2C-302-17 | 17 | 795 | 397 | 212 | 1 | £637.80 |
| SMC-F2C-302-18 | 18 | 840 | 421 | 225 | 1 | £667.20 |
| SMC-F2C-302-19 | 19 | 885 | 444 | 237 | 1 | £696.60 |
| SMC-F2C-302-20 | 20 | 930 | 468 | 250 | 1 | £726.00 |
| SMC-F2C-302-21 | 21 | 975 | 491 | 262 | 1 | £755.40 |
| SMC-F2C-302-22 | 22 | 1020 | 514 | 275 | 1 | £784.80 |
| SMC-F2C-302-23 | 23 | 1065 | 538 | 287 | 1 | £814.20 |
| SMC-F2C-302-24 | 24 | 1110 | 561 | 300 | 1 | £843.60 |
| SMC-F2C-302-25 | 25 | 1155 | 585 | 312 | 1 | £873.00 |
| SMC-F2C-302-26 | 26 | 1200 | 608 | 325 | 1 | £902.40 |
| SMC-F2C-302-27 | 27 | 1245 | 631 | 337 | 1 | £931.80 |
| SMC-F2C-302-28 | 28 | 1290 | 655 | 350 | 1 | £961.20 |
| SMC-F2C-302-29 | 29 | 1335 | 678 | 362 | 1 | £990.60 |
| SMC-F2C-302-30 | 30 | 1380 | 702 | 375 | 1 | £1,020.00 |
| SMC-F2C-302-31 | 31 | 1425 | 725 | 387 | 1 | £1,049.40 |
| SMC-F2C-302-32 | 32 | 1470 | 748 | 400 | 1 | £1,078.80 |
| SMC-F2C-302-33 | 33 | 1515 | 772 | 412 | 1 | £1,108.20 |
| SMC-F2C-302-34 | 34 | 1560 | 795 | 425 | 1 | £1,137.60 |
| SMC-F2C-302-35 | 35 | 1605 | 819 | 437 | 1 | £1,167.00 |
| SMC-F2C-302-36 | 36 | 1650 | 842 | 450 | 1 | £1,196.40 |
| SMC-F2C-302-37 | 37 | 1695 | 865 | 462 | 1 | £1,225.80 |
| SMC-F2C-302-38 | 38 | 1740 | 889 | 475 | 1 | £1,255.20 |
| SMC-F2C-302-39 | 39 | 1785 | 912 | 487 | 1 | £1,284.60 |
| SMC-F2C-302-40 | 40 | 1830 | 936 | 500 | 1 | £1,314.00 |
