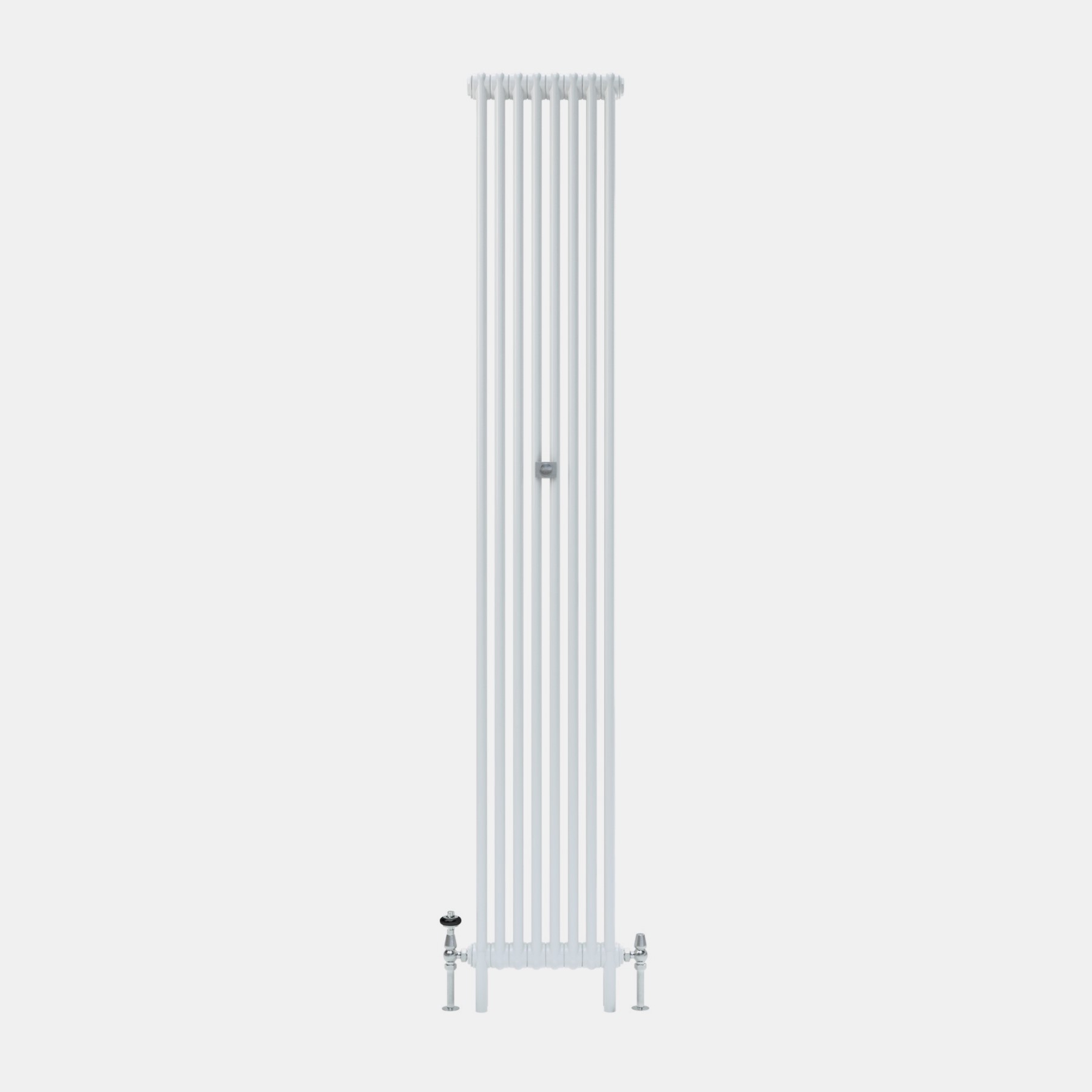

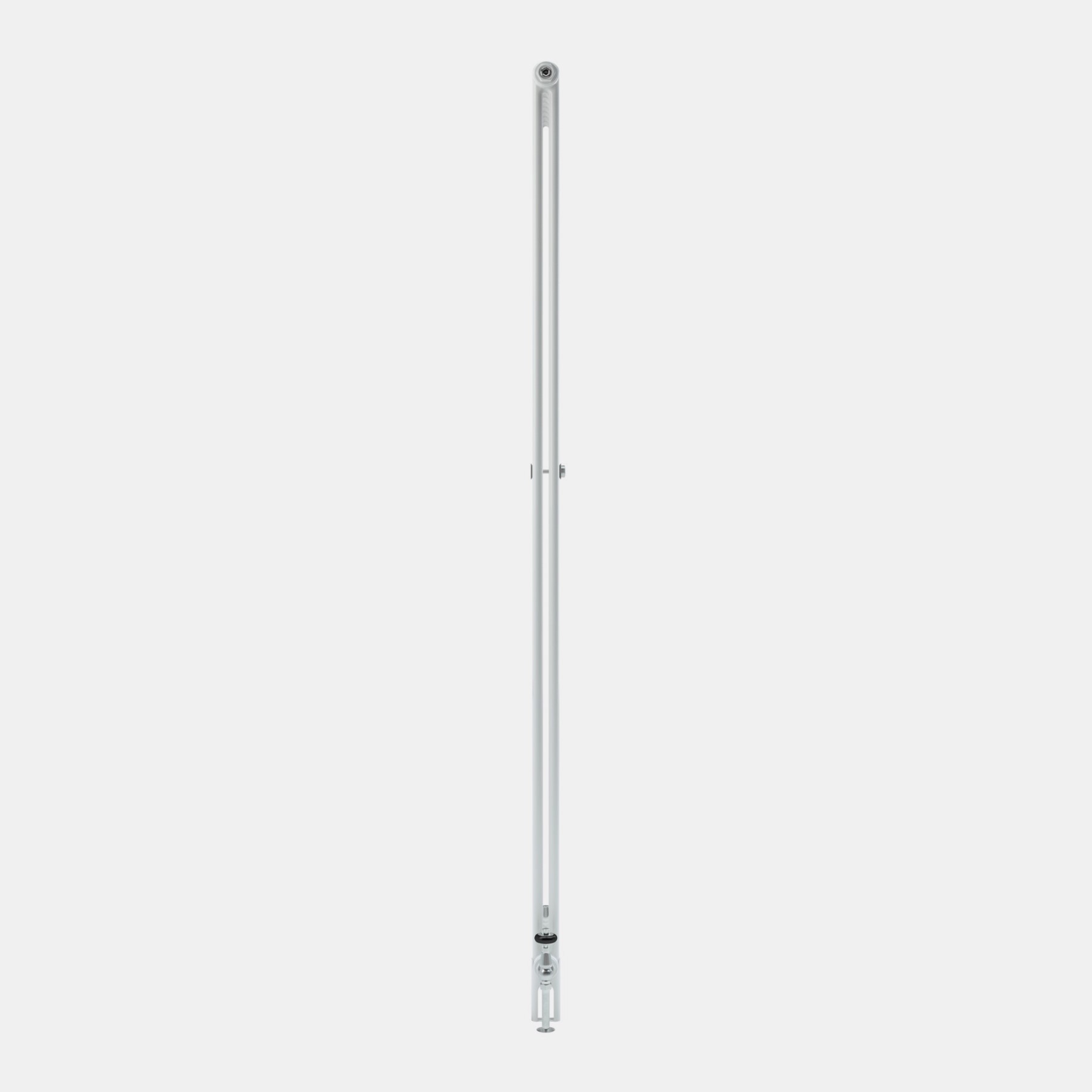

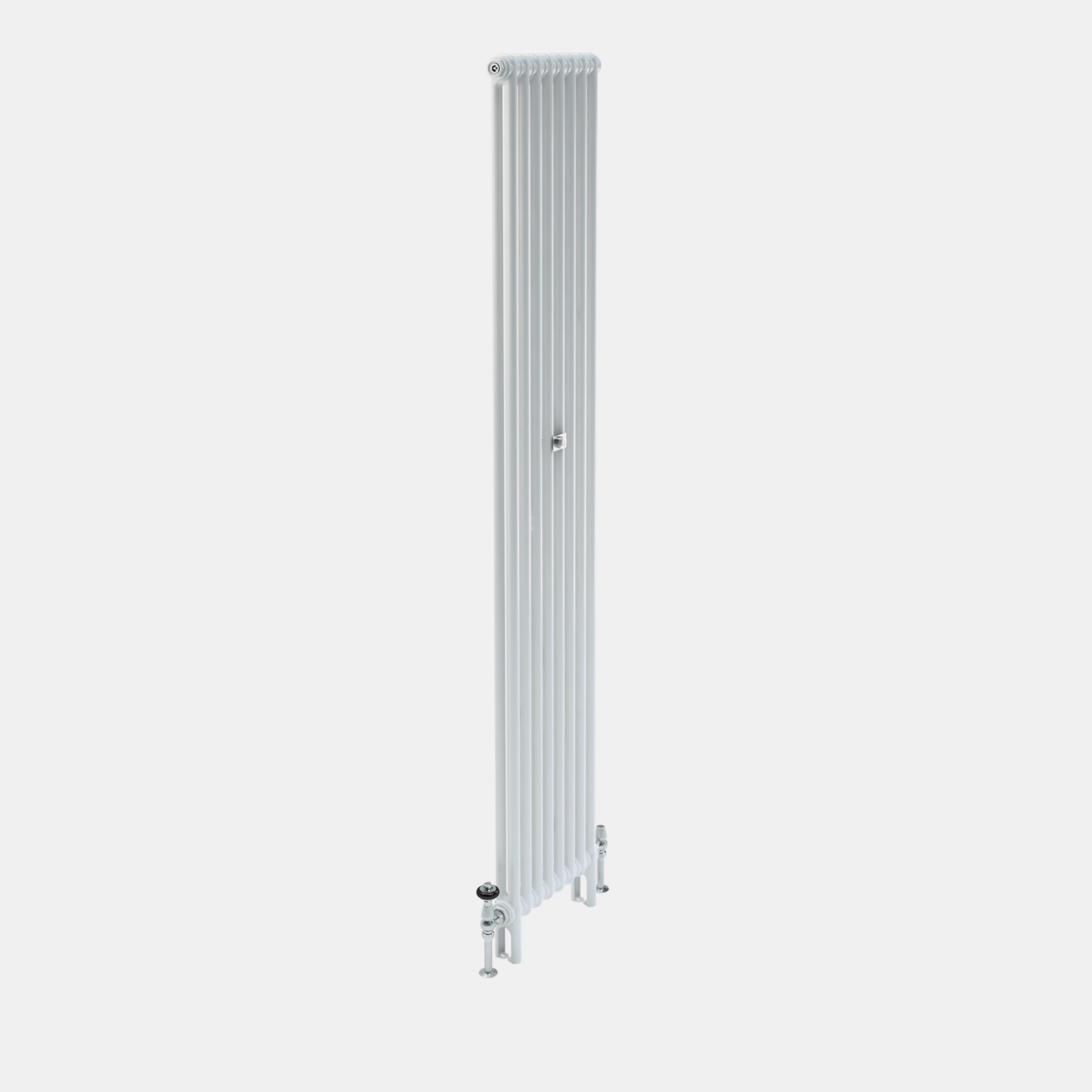

Florence 2 Column 2200mm
From: £388.20
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install
- Heat pump compatible
- 10 year warranty
- Not suitable for steam
- Welded joins with powder coat finish
- Made in Italy
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 2302 |
| B | Bottom Inlet To Floor (mm) | 134 |
| C | Max Section Depth (mm) | 67 |
| D | Interaxis Distance (mm) | 2135 |
| E | Height Without Legs (mm) | 2202 |
| - | Output (ΔT50, W) | 154.2 |
| F | Section Length (mm) | 45 |
| - | Output (ΔT30, W) | 79 |
| G | Mid Section Depth (mm) | 65 |
| - | Internal Volume (L) | 1.97 |
| - | Empty Leg Section Weight (kg) | 3.2 |
| - | Empty Mid Section Weight (kg) | 2.9 |
| - | Factor, Km | 0.9223 |
| - | Exponent, n | 1.30848 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| SMC-F2C-2202-3 | 3 | 165 | 462 | 237 | 1 | £388.20 |
| SMC-F2C-2202-4 | 4 | 210 | 616 | 316 | 1 | £471.60 |
| SMC-F2C-2202-5 | 5 | 255 | 771 | 395 | 1 | £555.00 |
| SMC-F2C-2202-6 | 6 | 300 | 925 | 474 | 1 | £638.40 |
| SMC-F2C-2202-7 | 7 | 345 | 1079 | 553 | 1 | £721.80 |
| SMC-F2C-2202-8 | 8 | 390 | 1233 | 632 | 1 | £805.20 |
| SMC-F2C-2202-9 | 9 | 435 | 1387 | 711 | 1 | £888.60 |
| SMC-F2C-2202-10 | 10 | 480 | 1542 | 790 | 1 | £972.00 |
| SMC-F2C-2202-11 | 11 | 525 | 1696 | 869 | 1 | £1,055.40 |
| SMC-F2C-2202-12 | 12 | 570 | 1850 | 948 | 1 | £1,138.80 |
| SMC-F2C-2202-13 | 13 | 615 | 2004 | 1027 | 1 | £1,222.20 |
| SMC-F2C-2202-14 | 14 | 660 | 2158 | 1106 | 1 | £1,305.60 |
| SMC-F2C-2202-15 | 15 | 705 | 2313 | 1185 | 1 | £1,389.00 |
| SMC-F2C-2202-16 | 16 | 750 | 2467 | 1264 | 1 | £1,472.40 |
| SMC-F2C-2202-17 | 17 | 795 | 2621 | 1343 | 1 | £1,555.80 |
| SMC-F2C-2202-18 | 18 | 840 | 2775 | 1422 | 1 | £1,639.20 |
| SMC-F2C-2202-19 | 19 | 885 | 2929 | 1501 | 1 | £1,722.60 |
| SMC-F2C-2202-20 | 20 | 930 | 3084 | 1580 | 1 | £1,806.00 |
| SMC-F2C-2202-21 | 21 | 975 | 3238 | 1659 | 1 | £1,889.40 |
| SMC-F2C-2202-22 | 22 | 1020 | 3392 | 1738 | 1 | £1,972.80 |
| SMC-F2C-2202-23 | 23 | 1065 | 3546 | 1817 | 1 | £2,056.20 |
| SMC-F2C-2202-24 | 24 | 1110 | 3700 | 1896 | 1 | £2,139.60 |
| SMC-F2C-2202-25 | 25 | 1155 | 3854 | 1975 | 1 | £2,223.00 |
| SMC-F2C-2202-26 | 26 | 1200 | 4009 | 2054 | 1 | £2,306.40 |
| SMC-F2C-2202-27 | 27 | 1245 | 4163 | 2133 | 1 | £2,389.80 |
| SMC-F2C-2202-28 | 28 | 1290 | 4317 | 2212 | 1 | £2,473.20 |
| SMC-F2C-2202-29 | 29 | 1335 | 4471 | 2291 | 1 | £2,556.60 |
| SMC-F2C-2202-30 | 30 | 1380 | 4626 | 2370 | 1 | £2,640.00 |
| SMC-F2C-2202-31 | 31 | 1425 | 4780 | 2449 | 1 | £2,723.40 |
| SMC-F2C-2202-32 | 32 | 1470 | 4934 | 2528 | 1 | £2,806.80 |
| SMC-F2C-2202-33 | 33 | 1515 | 5088 | 2607 | 1 | £2,890.20 |
| SMC-F2C-2202-34 | 34 | 1560 | 5242 | 2686 | 1 | £2,973.60 |
| SMC-F2C-2202-35 | 35 | 1605 | 5397 | 2765 | 1 | £3,057.00 |
| SMC-F2C-2202-36 | 36 | 1650 | 5551 | 2844 | 1 | £3,140.40 |
| SMC-F2C-2202-37 | 37 | 1695 | 5705 | 2923 | 1 | £3,223.80 |
| SMC-F2C-2202-38 | 38 | 1740 | 5859 | 3002 | 1 | £3,307.20 |
| SMC-F2C-2202-39 | 39 | 1785 | 6013 | 3081 | 1 | £3,390.60 |
| SMC-F2C-2202-40 | 40 | 1830 | 6168 | 3160 | 1 | £3,474.00 |
