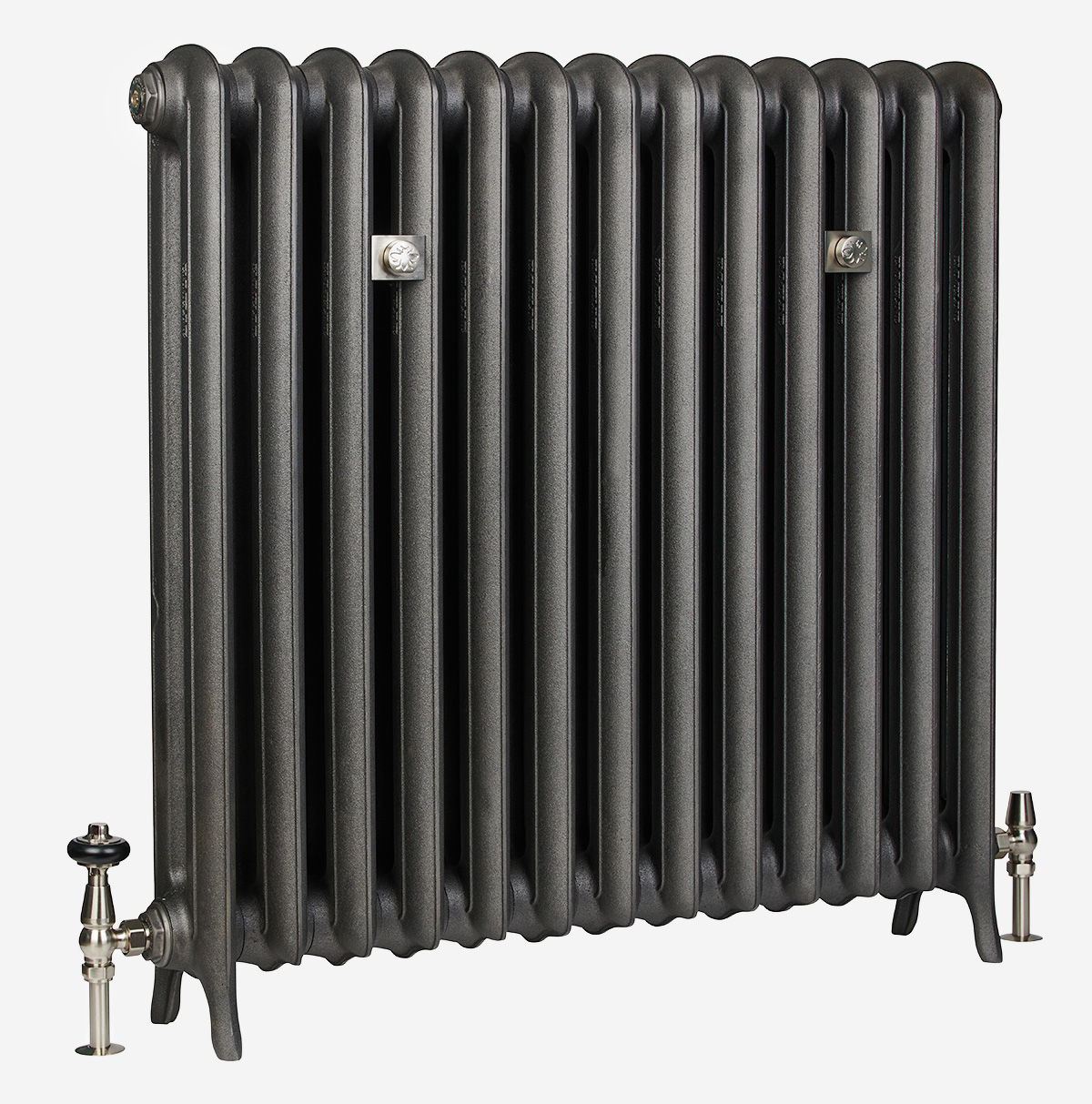

Emmeline II 870mm
From: £432.00
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 13 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 5-6 weeks lead time
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 870 |
| B | Bottom Inlet To Floor (mm) | 100 |
| C | Max Section Depth (mm) | 170 |
| - | Output (ΔT50, W) | 113.4 |
| - | Output (ΔT30, W) | 59.0 |
| D | Interaxis Distance (mm) | 723 |
| E | Height Without Legs (mm) | 813 |
| F | Section Length (mm) | 66.5 |
| G | Mid Section Depth (mm) | 150 |
| - | Internal Volume (L) | 1.9 |
| - | Empty Leg Section Weight (kg) | 9.1 |
| - | Empty Mid Section Weight (kg) | 8.3 |
| - | Factor, Km | 0.7632 |
| - | Exponent, n | 1.2785 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| CI-EML2-870-3 | 3 | 229 | 340 | 177 | 1 | £432.00 |
| CI-EML2-870-4 | 4 | 296 | 453 | 236 | 1 | £522.00 |
| CI-EML2-870-5 | 5 | 362 | 567 | 295 | 1 | £612.00 |
| CI-EML2-870-6 | 6 | 429 | 680 | 354 | 1 | £702.00 |
| CI-EML2-870-7 | 7 | 495 | 793 | 413 | 1 | £792.00 |
| CI-EML2-870-8 | 8 | 562 | 907 | 472 | 1 | £882.00 |
| CI-EML2-870-9 | 9 | 628 | 1020 | 531 | 1 | £972.00 |
| CI-EML2-870-10 | 10 | 695 | 1134 | 590 | 1 | £1,062.00 |
| CI-EML2-870-11 | 11 | 761 | 1247 | 649 | 1 | £1,152.00 |
| CI-EML2-870-12 | 12 | 828 | 1360 | 708 | 1 | £1,242.00 |
| CI-EML2-870-13 | 13 | 894 | 1474 | 767 | 1 | £1,332.00 |
| CI-EML2-870-14 | 14 | 961 | 1587 | 826 | 2 | £1,506.00 |
| CI-EML2-870-15 | 15 | 1027 | 1701 | 885 | 2 | £1,596.00 |
| CI-EML2-870-16 | 16 | 1094 | 1814 | 944 | 2 | £1,686.00 |
| CI-EML2-870-17 | 17 | 1160 | 1927 | 1003 | 2 | £1,776.00 |
| CI-EML2-870-18 | 18 | 1227 | 2041 | 1062 | 2 | £1,866.00 |
| CI-EML2-870-19 | 19 | 1293 | 2154 | 1121 | 2 | £1,956.00 |
| CI-EML2-870-20 | 20 | 1360 | 2268 | 1180 | 2 | £2,046.00 |
| CI-EML2-870-21 | 21 | 1426 | 2381 | 1239 | 2 | £2,136.00 |
| CI-EML2-870-22 | 22 | 1493 | 2494 | 1298 | 2 | £2,226.00 |
| CI-EML2-870-23 | 23 | 1559 | 2608 | 1357 | 2 | £2,316.00 |
| CI-EML2-870-24 | 24 | 1626 | 2721 | 1416 | 3 | £2,406.00 |
| CI-EML2-870-25 | 25 | 1692 | 2835 | 1475 | 2 | £2,496.00 |
| CI-EML2-870-26 | 26 | 1759 | 2948 | 1534 | 3 | £2,586.00 |
| CI-EML2-870-27 | 27 | 1825 | 3061 | 1593 | 3 | £2,676.00 |
| CI-EML2-870-28 | 28 | 1892 | 3175 | 1652 | 3 | £2,766.00 |
| CI-EML2-870-29 | 29 | 1958 | 3288 | 1711 | 3 | £2,856.00 |
| CI-EML2-870-30 | 30 | 2025 | 3402 | 1770 | 3 | £2,946.00 |
| CI-EML2-870-31 | 31 | 2091 | 3515 | 1829 | 3 | £3,036.00 |
| CI-EML2-870-32 | 32 | 2158 | 3628 | 1888 | 3 | £3,126.00 |
| CI-EML2-870-33 | 33 | 2224 | 3742 | 1947 | 3 | £3,216.00 |
| CI-EML2-870-34 | 34 | 2291 | 3855 | 2006 | 3 | £3,306.00 |
| CI-EML2-870-35 | 35 | 2357 | 3969 | 2065 | 3 | £3,396.00 |
| CI-EML2-870-36 | 36 | 2424 | 4082 | 2124 | 3 | £3,486.00 |
| CI-EML2-870-37 | 37 | 2490 | 4195 | 2183 | 3 | £3,576.00 |
| CI-EML2-870-38 | 38 | 2557 | 4309 | 2242 | 4 | £3,666.00 |
| CI-EML2-870-39 | 39 | 2623 | 4422 | 2301 | 4 | £3,756.00 |
| CI-EML2-870-40 | 40 | 2690 | 4536 | 2360 | 4 | £3,846.00 |
