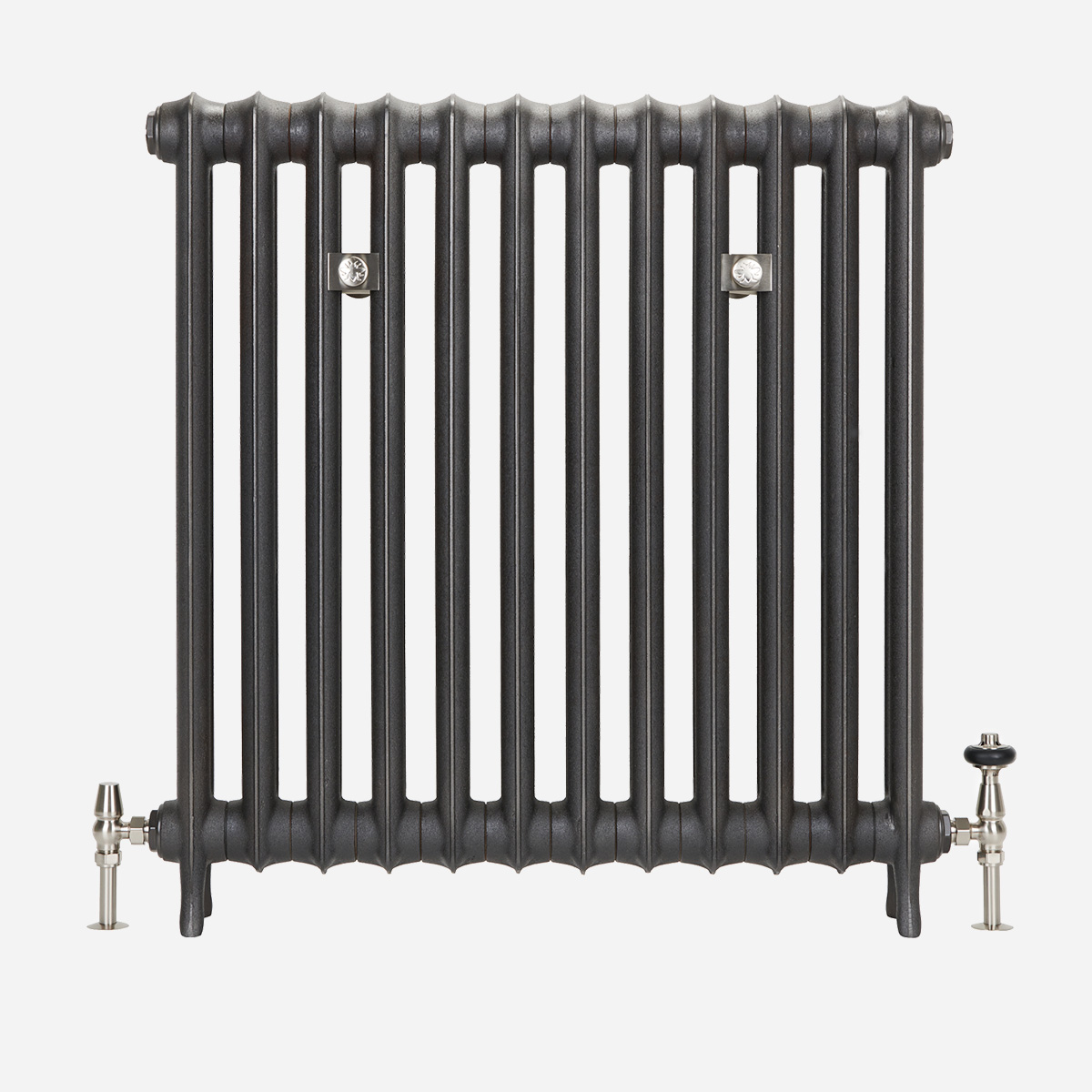

Emmeline I 865mm
From: £334.80
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 16 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 5-6 weeks lead time
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 865 |
| B | Bottom Inlet To Floor (mm) | 100 |
| C | Max Section Depth (mm) | 110 |
| - | Output (ΔT50, W) | 79.1 |
| - | Output (ΔT30, W) | 41.3 |
| D | Interaxis Distance (mm) | 723 |
| E | Height Without Legs (mm) | 807 |
| F | Section Length (mm) | 66.5 |
| G | Mid Section Depth (mm) | 90 |
| - | Internal Volume (L) | 0.93 |
| - | Empty Leg Section Weight (kg) | 6.4 |
| - | Empty Mid Section Weight (kg) | 6.1 |
| - | Factor, Km | 0.5422 |
| - | Exponent, n | 1.2737 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| CI-EML1-865-3 | 3 | 229 | 237 | 123 | 1 | £334.80 |
| CI-EML1-865-4 | 4 | 296 | 316 | 165 | 1 | £392.40 |
| CI-EML1-865-5 | 5 | 362 | 395 | 206 | 1 | £450.00 |
| CI-EML1-865-6 | 6 | 429 | 474 | 247 | 1 | £507.60 |
| CI-EML1-865-7 | 7 | 495 | 553 | 289 | 1 | £565.20 |
| CI-EML1-865-8 | 8 | 562 | 632 | 330 | 1 | £622.80 |
| CI-EML1-865-9 | 9 | 628 | 711 | 371 | 1 | £680.40 |
| CI-EML1-865-10 | 10 | 695 | 791 | 413 | 1 | £738.00 |
| CI-EML1-865-11 | 11 | 761 | 870 | 454 | 1 | £795.60 |
| CI-EML1-865-12 | 12 | 828 | 949 | 495 | 1 | £853.20 |
| CI-EML1-865-13 | 13 | 894 | 1028 | 536 | 1 | £910.80 |
| CI-EML1-865-14 | 14 | 961 | 1107 | 578 | 1 | £968.40 |
| CI-EML1-865-15 | 15 | 1027 | 1186 | 619 | 1 | £1,026.00 |
| CI-EML1-865-16 | 16 | 1094 | 1265 | 660 | 1 | £1,083.60 |
| CI-EML1-865-17 | 17 | 1160 | 1344 | 702 | 2 | £1,225.20 |
| CI-EML1-865-18 | 18 | 1227 | 1423 | 743 | 2 | £1,282.80 |
| CI-EML1-865-19 | 19 | 1293 | 1502 | 784 | 2 | £1,340.40 |
| CI-EML1-865-20 | 20 | 1360 | 1582 | 826 | 2 | £1,398.00 |
| CI-EML1-865-21 | 21 | 1426 | 1661 | 867 | 2 | £1,455.60 |
| CI-EML1-865-22 | 22 | 1493 | 1740 | 908 | 2 | £1,513.20 |
| CI-EML1-865-23 | 23 | 1559 | 1819 | 949 | 2 | £1,570.80 |
| CI-EML1-865-24 | 24 | 1626 | 1898 | 991 | 2 | £1,628.40 |
| CI-EML1-865-25 | 25 | 1692 | 1977 | 1032 | 3 | £1,686.00 |
| CI-EML1-865-26 | 26 | 1759 | 2056 | 1073 | 3 | £1,743.60 |
| CI-EML1-865-27 | 27 | 1825 | 2135 | 1115 | 3 | £1,801.20 |
| CI-EML1-865-28 | 28 | 1892 | 2214 | 1156 | 3 | £1,858.80 |
| CI-EML1-865-29 | 29 | 1958 | 2293 | 1197 | 3 | £1,916.40 |
| CI-EML1-865-30 | 30 | 2025 | 2373 | 1239 | 3 | £1,974.00 |
| CI-EML1-865-31 | 31 | 2091 | 2452 | 1280 | 3 | £2,031.60 |
| CI-EML1-865-32 | 32 | 2158 | 2531 | 1321 | 3 | £2,089.20 |
| CI-EML1-865-33 | 33 | 2224 | 2610 | 1362 | 3 | £2,146.80 |
| CI-EML1-865-34 | 34 | 2291 | 2689 | 1404 | 3 | £2,204.40 |
| CI-EML1-865-35 | 35 | 2357 | 2768 | 1445 | 3 | £2,262.00 |
| CI-EML1-865-36 | 36 | 2424 | 2847 | 1486 | 3 | £2,319.60 |
| CI-EML1-865-37 | 37 | 2490 | 2926 | 1528 | 3 | £2,377.20 |
| CI-EML1-865-38 | 38 | 2557 | 3005 | 1569 | 3 | £2,434.80 |
| CI-EML1-865-39 | 39 | 2623 | 3084 | 1610 | 3 | £2,492.40 |
| CI-EML1-865-40 | 40 | 2690 | 3164 | 1652 | 3 | £2,550.00 |
