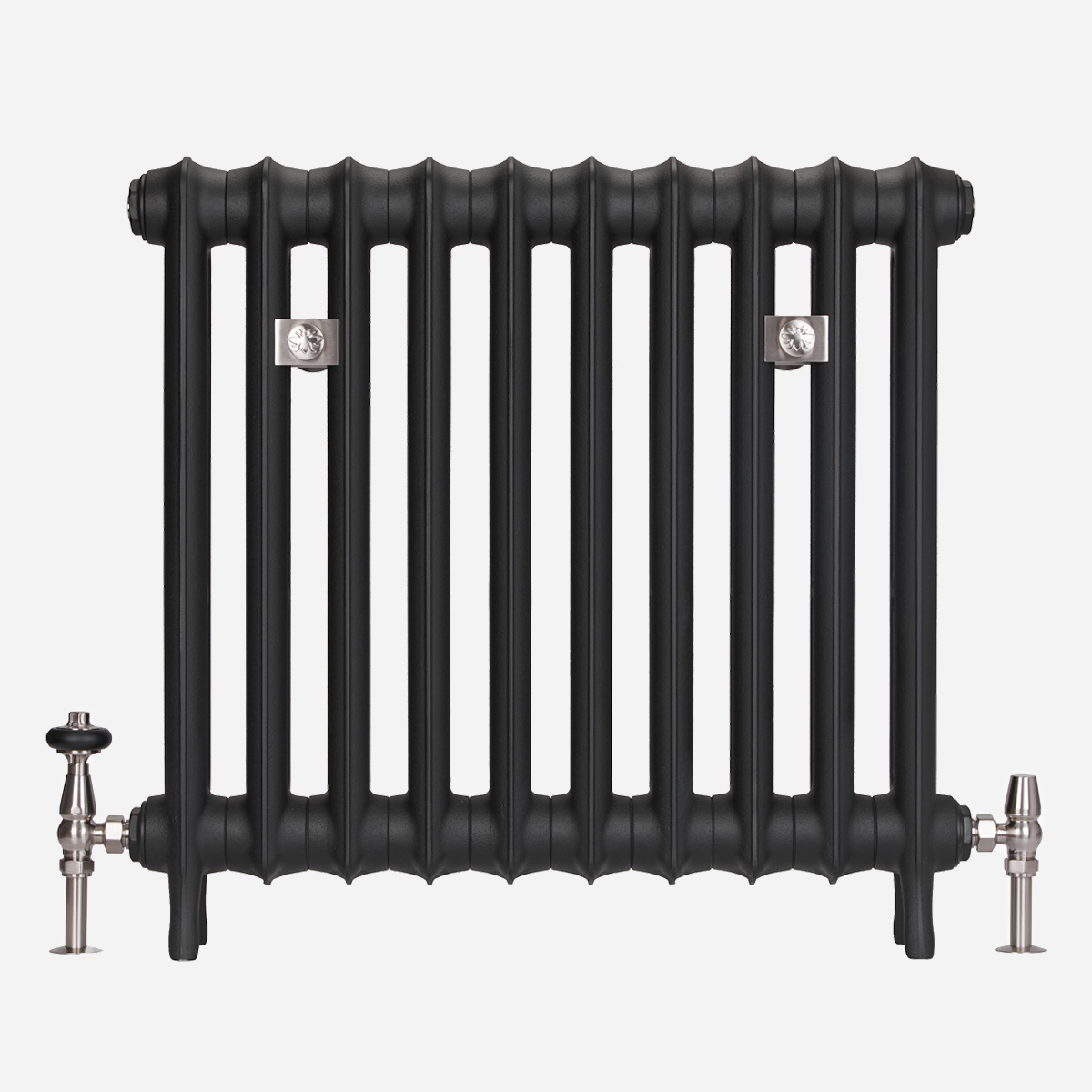

Emmeline I 665mm
From: £309.60
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 16 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 5-6 weeks lead time
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 665 |
| B | Bottom Inlet To Floor (mm) | 100 |
| C | Max Section Depth (mm) | 110 |
| - | Output (ΔT50, W) | 62.4 |
| - | Output (ΔT30, W) | 32.8 |
| D | Interaxis Distance (mm) | 523 |
| E | Height Without Legs (mm) | 607 |
| F | Section Length (mm) | 66.5 |
| G | Mid Section Depth (mm) | 90 |
| - | Internal Volume (L) | 0.8 |
| - | Empty Leg Section Weight (kg) | 4.8 |
| - | Empty Mid Section Weight (kg) | 4.5 |
| - | Factor, Km | 0.4516 |
| - | Exponent, n | 1.2598 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| CI-EML1-665-3 | 3 | 229 | 187 | 98 | 1 | £309.60 |
| CI-EML1-665-4 | 4 | 296 | 249 | 131 | 1 | £358.80 |
| CI-EML1-665-5 | 5 | 362 | 312 | 164 | 1 | £408.00 |
| CI-EML1-665-6 | 6 | 429 | 374 | 196 | 1 | £457.20 |
| CI-EML1-665-7 | 7 | 495 | 436 | 229 | 1 | £506.40 |
| CI-EML1-665-8 | 8 | 562 | 499 | 262 | 1 | £555.60 |
| CI-EML1-665-9 | 9 | 628 | 561 | 295 | 1 | £604.80 |
| CI-EML1-665-10 | 10 | 695 | 624 | 328 | 1 | £654.00 |
| CI-EML1-665-11 | 11 | 761 | 686 | 360 | 1 | £703.20 |
| CI-EML1-665-12 | 12 | 828 | 748 | 393 | 1 | £752.40 |
| CI-EML1-665-13 | 13 | 894 | 811 | 426 | 1 | £801.60 |
| CI-EML1-665-14 | 14 | 961 | 873 | 459 | 1 | £850.80 |
| CI-EML1-665-15 | 15 | 1027 | 936 | 491 | 1 | £900.00 |
| CI-EML1-665-16 | 16 | 1094 | 998 | 524 | 1 | £949.20 |
| CI-EML1-665-17 | 17 | 1160 | 1060 | 557 | 2 | £1,082.40 |
| CI-EML1-665-18 | 18 | 1227 | 1123 | 590 | 2 | £1,131.60 |
| CI-EML1-665-19 | 19 | 1293 | 1185 | 623 | 2 | £1,180.80 |
| CI-EML1-665-20 | 20 | 1360 | 1248 | 656 | 2 | £1,230.00 |
| CI-EML1-665-21 | 21 | 1426 | 1310 | 688 | 2 | £1,279.20 |
| CI-EML1-665-22 | 22 | 1493 | 1372 | 721 | 2 | £1,328.40 |
| CI-EML1-665-23 | 23 | 1559 | 1435 | 754 | 2 | £1,377.60 |
| CI-EML1-665-24 | 24 | 1626 | 1497 | 787 | 2 | £1,426.80 |
| CI-EML1-665-25 | 25 | 1692 | 1560 | 819 | 3 | £1,476.00 |
| CI-EML1-665-26 | 26 | 1759 | 1622 | 852 | 3 | £1,525.20 |
| CI-EML1-665-27 | 27 | 1825 | 1684 | 885 | 3 | £1,574.40 |
| CI-EML1-665-28 | 28 | 1892 | 1747 | 918 | 3 | £1,623.60 |
| CI-EML1-665-29 | 29 | 1958 | 1809 | 951 | 3 | £1,672.80 |
| CI-EML1-665-30 | 30 | 2025 | 1872 | 983 | 3 | £1,722.00 |
| CI-EML1-665-31 | 31 | 2091 | 1934 | 1016 | 3 | £1,771.20 |
| CI-EML1-665-32 | 32 | 2158 | 1996 | 1049 | 3 | £1,820.40 |
| CI-EML1-665-33 | 33 | 2224 | 2059 | 1082 | 3 | £1,869.60 |
| CI-EML1-665-34 | 34 | 2291 | 2121 | 1115 | 3 | £1,918.80 |
| CI-EML1-665-35 | 35 | 2357 | 2184 | 1148 | 3 | £1,968.00 |
| CI-EML1-665-36 | 36 | 2424 | 2246 | 1180 | 3 | £2,017.20 |
| CI-EML1-665-37 | 37 | 2490 | 2308 | 1213 | 3 | £2,066.40 |
| CI-EML1-665-38 | 38 | 2557 | 2371 | 1246 | 3 | £2,115.60 |
| CI-EML1-665-39 | 39 | 2623 | 2433 | 1279 | 3 | £2,164.80 |
| CI-EML1-665-40 | 40 | 2690 | 2496 | 1312 | 3 | £2,214.00 |
