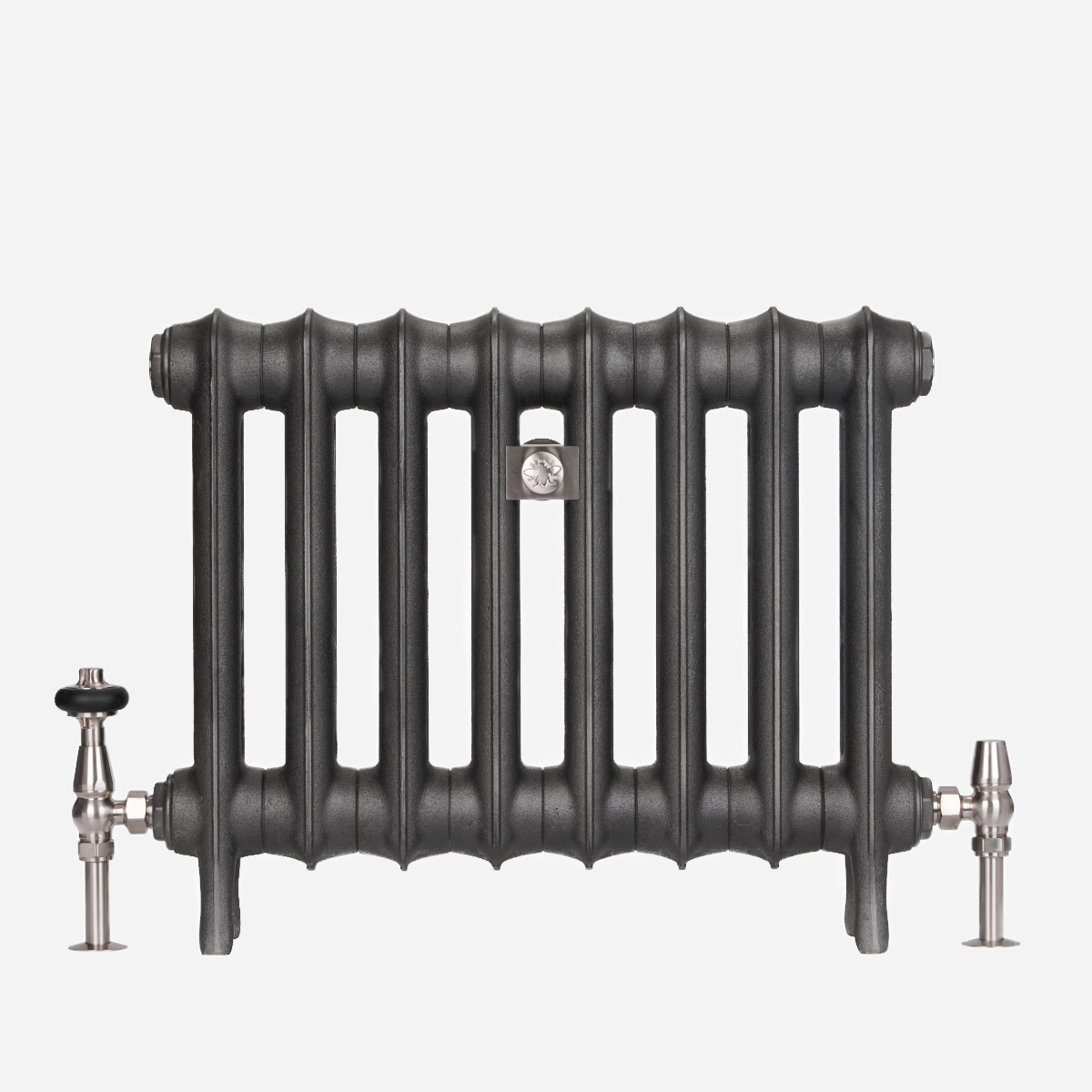

Emmeline I 465mm
From: £280.80
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 16 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 5-6 weeks lead time
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 465 |
| B | Bottom Inlet To Floor (mm) | 100 |
| C | Max Section Depth (mm) | 110 |
| D | Interaxis Distance (mm) | 323 |
| E | Height Without Legs (mm) | 407 |
| F | Section Length (mm) | 66.5 |
| G | Mid Section Depth (mm) | 90 |
| - | Output (ΔT50, W) | 44.5 |
| - | Output (ΔT30, W) | 23.4 |
| - | Internal Volume (L) | 0.6 |
| - | Empty Leg Section Weight (kg) | 3.5 |
| - | Empty Mid Section Weight (kg) | 3.2 |
| - | Factor, Km | 0.3277 |
| - | Exponent, n | 1.2554 |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| CI-EML1-465-3 | 3 | 229 | 133 | 70 | 1 | £280.80 |
| CI-EML1-465-4 | 4 | 296 | 178 | 93 | 1 | £320.40 |
| CI-EML1-465-5 | 5 | 362 | 222 | 117 | 1 | £360.00 |
| CI-EML1-465-6 | 6 | 429 | 267 | 140 | 1 | £399.60 |
| CI-EML1-465-7 | 7 | 495 | 311 | 163 | 1 | £439.20 |
| CI-EML1-465-8 | 8 | 562 | 356 | 187 | 1 | £478.80 |
| CI-EML1-465-9 | 9 | 628 | 400 | 210 | 1 | £518.40 |
| CI-EML1-465-10 | 10 | 695 | 445 | 234 | 1 | £558.00 |
| CI-EML1-465-11 | 11 | 761 | 489 | 257 | 1 | £597.60 |
| CI-EML1-465-12 | 12 | 828 | 534 | 280 | 1 | £637.20 |
| CI-EML1-465-13 | 13 | 894 | 578 | 304 | 1 | £676.80 |
| CI-EML1-465-14 | 14 | 961 | 623 | 327 | 1 | £716.40 |
| CI-EML1-465-15 | 15 | 1027 | 667 | 351 | 1 | £756.00 |
| CI-EML1-465-16 | 16 | 1094 | 712 | 374 | 1 | £795.60 |
| CI-EML1-465-17 | 17 | 1160 | 756 | 397 | 2 | £919.20 |
| CI-EML1-465-18 | 18 | 1227 | 801 | 421 | 2 | £958.80 |
| CI-EML1-465-19 | 19 | 1293 | 845 | 444 | 2 | £998.40 |
| CI-EML1-465-20 | 20 | 1360 | 890 | 468 | 2 | £1,038.00 |
| CI-EML1-465-21 | 21 | 1426 | 934 | 491 | 2 | £1,077.60 |
| CI-EML1-465-22 | 22 | 1493 | 979 | 514 | 2 | £1,117.20 |
| CI-EML1-465-23 | 23 | 1559 | 1023 | 538 | 2 | £1,156.80 |
| CI-EML1-465-24 | 24 | 1626 | 1068 | 561 | 2 | £1,196.40 |
| CI-EML1-465-25 | 25 | 1692 | 1112 | 585 | 2 | £1,236.00 |
| CI-EML1-465-26 | 26 | 1759 | 1157 | 608 | 2 | £1,275.60 |
| CI-EML1-465-27 | 27 | 1825 | 1201 | 631 | 2 | £1,315.20 |
| CI-EML1-465-28 | 28 | 1892 | 1246 | 655 | 2 | £1,354.80 |
| CI-EML1-465-29 | 29 | 1958 | 1290 | 678 | 2 | £1,394.40 |
| CI-EML1-465-30 | 30 | 2025 | 1335 | 702 | 3 | £1,434.00 |
| CI-EML1-465-31 | 31 | 2091 | 1379 | 725 | 3 | £1,473.60 |
| CI-EML1-465-32 | 32 | 2158 | 1424 | 748 | 3 | £1,513.20 |
| CI-EML1-465-33 | 33 | 2224 | 1468 | 772 | 3 | £1,552.80 |
| CI-EML1-465-34 | 34 | 2291 | 1513 | 795 | 3 | £1,592.40 |
| CI-EML1-465-35 | 35 | 2357 | 1557 | 819 | 3 | £1,632.00 |
| CI-EML1-465-36 | 36 | 2424 | 1602 | 842 | 3 | £1,671.60 |
| CI-EML1-465-37 | 37 | 2490 | 1646 | 865 | 3 | £1,711.20 |
| CI-EML1-465-38 | 38 | 2557 | 1691 | 889 | 3 | £1,750.80 |
| CI-EML1-465-39 | 39 | 2623 | 1735 | 912 | 3 | £1,790.40 |
| CI-EML1-465-40 | 40 | 2690 | 1780 | 936 | 3 | £1,830.00 |
